Diagram image not available

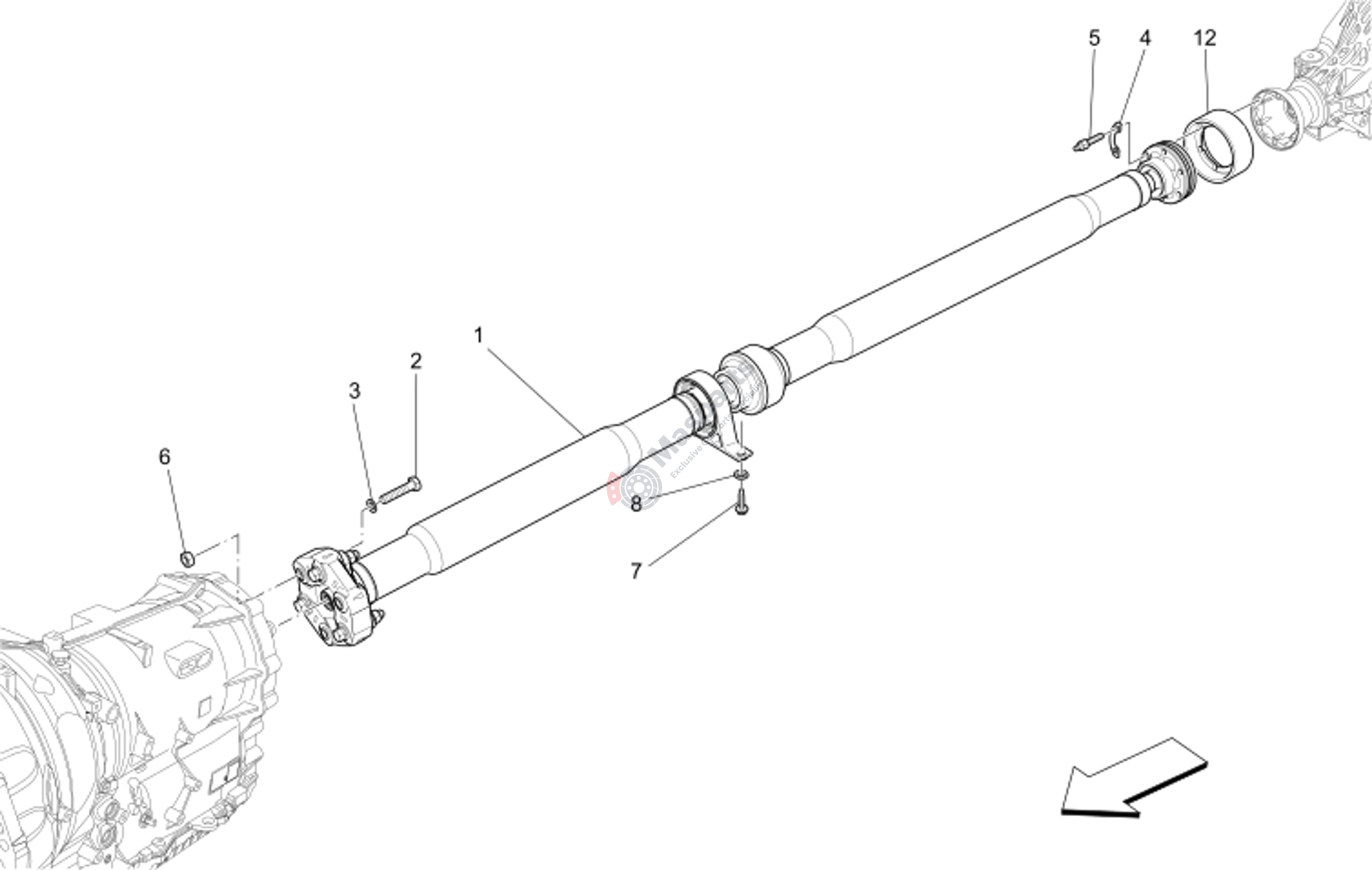

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-675000110 | Screw |
$4.96 |
|
|
| 3 | M-675000125 | Washer |
$2.04 |
|
|
| 4 | M-670002408 | Transmission Shaft Fast. Scr |
$3.57 |
|
|
| 5 | M-670009478 | Screw (Special - Long Column |
$15.35 |
|
|
| 6 | M-675000109 | Nut |
$2.48 |
|
|
| 7 | M-675000041 | Screw |
$1.66 |
|
|
| 8 | M-675000177 | Washer |
$1.39 |
|
|
| 12 | M-670009476 | Mass Damper (Diesel) |
$206.98 |
|
