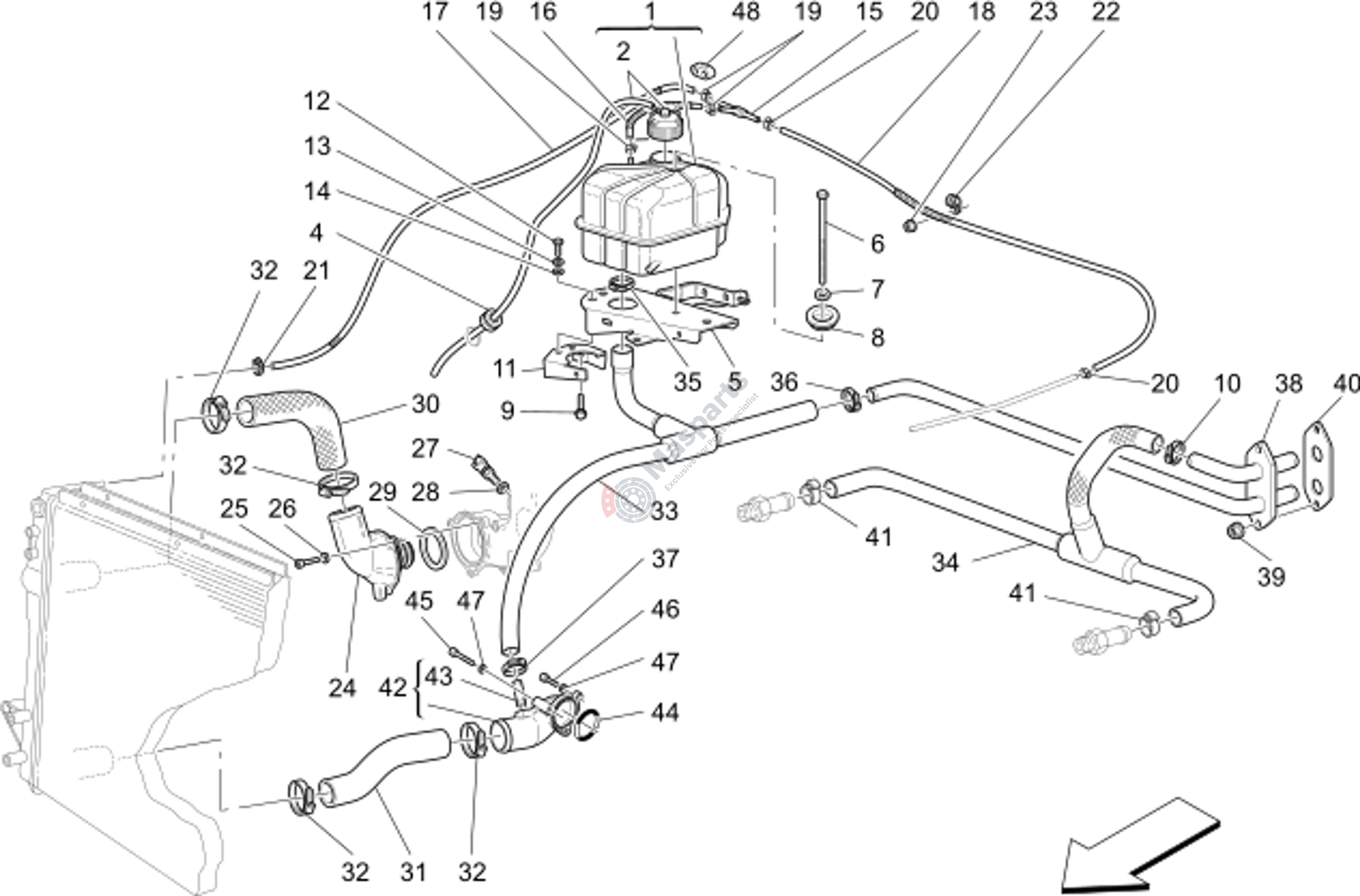

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-384000102 | Expansion Tank |
$66.12 |
|
|
| 2 | M-980145477 | Cap For Coolant Tank +C Type |
$18.96 |
|
|
| 4 | M-10461987 | Insulating Ring 14X7 Type C |
$2.14 |
|
|
| 5 | M-189782 | Nourice Support Shelf |
$30.88 |
|
|
| 6 | M-60607472 | Screw |
$7.49 |
|
|
| 7 | M-12601274 | Washer |
$1.35 |
|
|
| 8 | M-82404496 | Cup |
$3.01 |
|
|
| 9 | M-11730624 | Screw For Front Hood Safe |
$2.40 |
|
|
| 10 | M-186680 | Clamp D.20-2X22.2 |
$3.19 |
|
|
| 12 | M-14305521 | Socket Head Screw M 6X 30 |
$1.49 |
|
|
| 13 | M-12620474 | Washer |
$1.49 |
|
|
| 14 | M-12646601 | Washer |
$1.17 |
|
|
| 17 | M-192614 | Rubber Hose From 3-Way Union |
$228.73 |
|
|
| 19 | M-13125470 | Collar |
$1.68 |
|
|
| 21 | M-13000190 | Screw Collar |
$1.09 |
|
|
| 22 | M-10441390 | Bracket With Sheath |
$1.68 |
|
|
| 23 | M-14058411 | Nut |
$1.68 |
|
|
| 24 | M-230890 | Thermostat Cover With Press. |
$121.19 |
|
|
| 25 | M-14305324 | Screw |
$1.68 |
|
|
| 26 | M-11197774 | Washer |
$2.18 |
|
|
| 27 | M-180137 | Water Temperature Sensor |
$38.72 |
|
|
| 28 | M-10298460 | Gasket 12- 18X 1.5 |
$0.97 |
|
|
| 29 | M-137873 | Gasket Betw. Thermostat And |
$9.18 |
|
|
| 30 | M-190354 | Delivery Line From Engine To |
$177.05 |
|
|
| 31 | M-181748 | Radiator To Engine Return Pi |
$40.92 |
|
|
| 32 | M-13000790 | Screw Collar |
$1.68 |
|
|
| 33 | M-187080 | Pipe Connecting Heater-Nouri |
$22.69 |
|
|
| 34 | M-187082 | Wat.Outlet Pipe From Heads T |
$141.64 |
|
|
| 35 | M-13000590 | Screw Collar |
$3.64 |
|
|
| 36 | M-186680 | Clamp D.20-2X22.2 |
$3.19 |
|
|
| 37 | M-183126 | Clamp D.20-2X22.2 |
$2.14 |
|
|
| 38 | M-66069000 | Water Rigid Pipe To Heater |
$66.33 |
|
|
| 40 | M-385500371 | Pipe Union Gasket |
$1.49 |
|
|
| 41 | M-178053 | Clamp D.20-2X220.2 |
$3.61 |
|
|
| 43 | M-111628 | Threaded Union For Radiat |
$0.50 |
|
|
| 44 | M-154191 | O-Ring D. 44.17- 8X 100 |
$3.61 |
|
|
| 45 | M-14306024 | Socket Head Screw M 6X 50 |
$1.82 |
|
|
| 46 | M-14432224 | Screw |
$1.68 |
|
|
| 47 | M-11197774 | Washer |
$2.18 |
|
