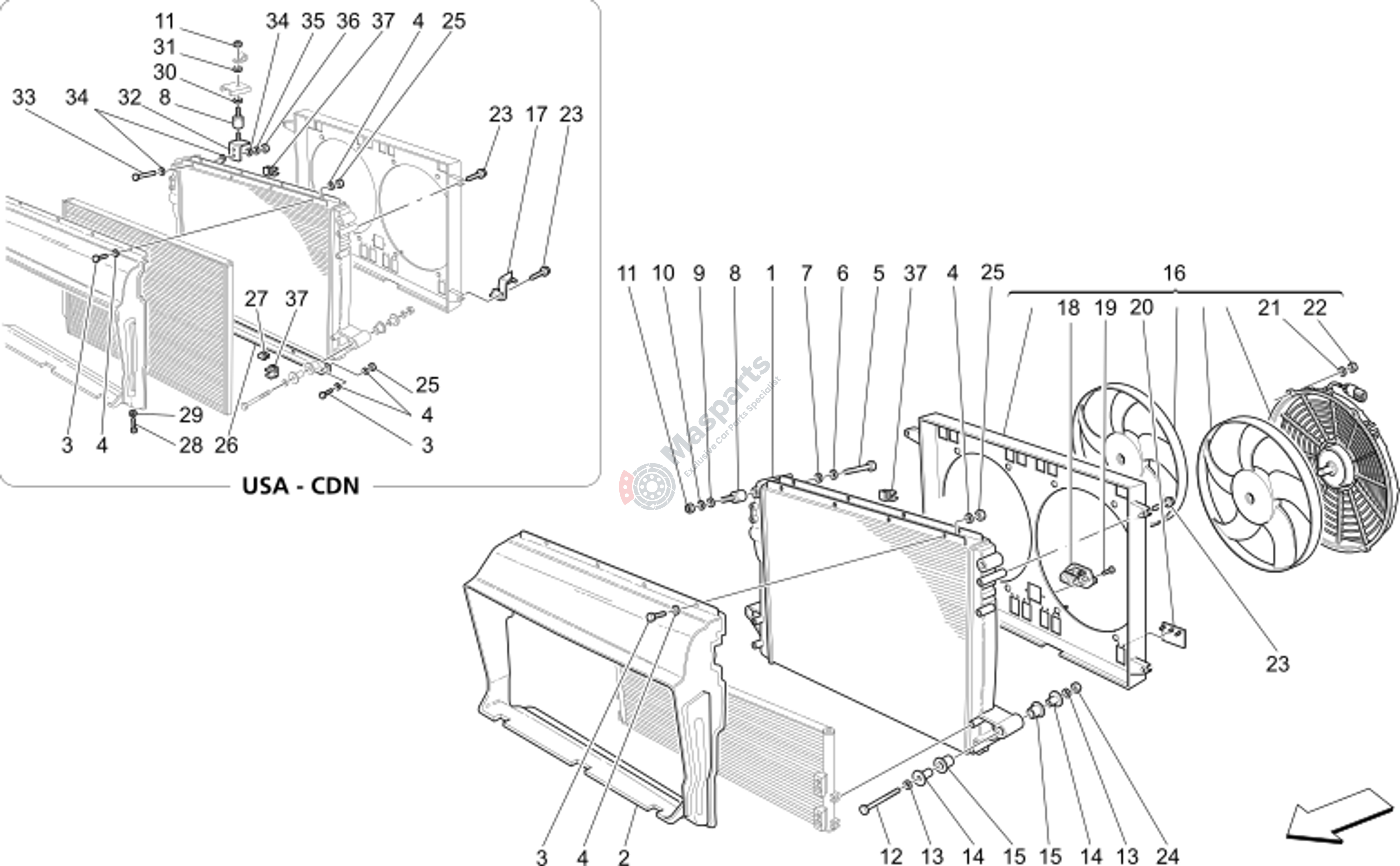

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-181097 | Water Radiator |
$492.07 |
|
|
| 2 | M-68330500 | Radiator Air Duct |
$287.78 |
|
|
| 3 | M-10977724 | Screw |
$1.35 |
|
|
| 4 | M-13579101 | Washer |
$1.20 |
|
|
| 5 | M-14308921 | Socket Head Screw M8X60 Znt |
$1.87 |
|
|
| 6 | M-12601379 | Washer |
$1.36 |
|
|
| 7 | M-12646724 | Washer |
$1.72 |
|
|
| 8 | M-181114 | Rubber Pad |
$12.23 |
|
|
| 9 | M-12647024 | Washer For Radiator Assem |
$2.94 |
|
|
| 11 | M-16100814 | Nut For Rear Differential |
$1.72 |
|
|
| 12 | M-16044824 | Screw |
$2.46 |
|
|
| 13 | M-12646724 | Washer |
$1.72 |
|
|
| 14 | M-181111 | Bushing |
$7.90 |
|
|
| 15 | M-181110 | Rubber Bushing |
$2.19 |
|
|
| 16 | M-221254 | Cpl Hood With Electric Fan |
$689.65 |
|
|
| 18 | M-263140 | Electric Fan Resistor 0.23 O |
$91.92 |
|
|
| 19 | M-15688070 | Screw For Resistor Holddo |
$1.53 |
|
|
| 20 | M-373330320 | Rubber Band For Rad. 3013. |
$6.90 |
|
|
| 21 | M-10519401 | Washer |
$1.35 |
|
|
| 22 | M-14048111 | Nut |
$1.35 |
|
|
| 23 | M-15699904 | Screw. |
$2.09 |
|
|
| 24 | M-14058511 | Cup |
$1.72 |
|
|
| 25 | M-14048615 | Nut |
$1.65 |
|
|
| 26 | M-193538 | Air Conveyor Support Bracket |
$25.18 |
|
|
| 27 | M-67257100 | Bracket |
$1.81 |
|
|
| 28 | M-10977724 | Screw |
$1.35 |
|
|
| 29 | M-13579101 | Washer |
$1.20 |
|
|
| 30 | M-12647024 | Washer For Radiator Assem |
$2.94 |
|
|
| 31 | M-12601374 | Washer |
$1.36 |
|
|
| 33 | M-16044524 | Screw |
$2.33 |
|
|
| 34 | M-12646724 | Washer |
$1.72 |
|
|
| 35 | M-12601374 | Washer |
$1.36 |
|
|
| 36 | M-16100814 | Nut For Rear Differential |
$1.72 |
|
|
| 37 | M-224539 | Clip |
$1.81 |
|
