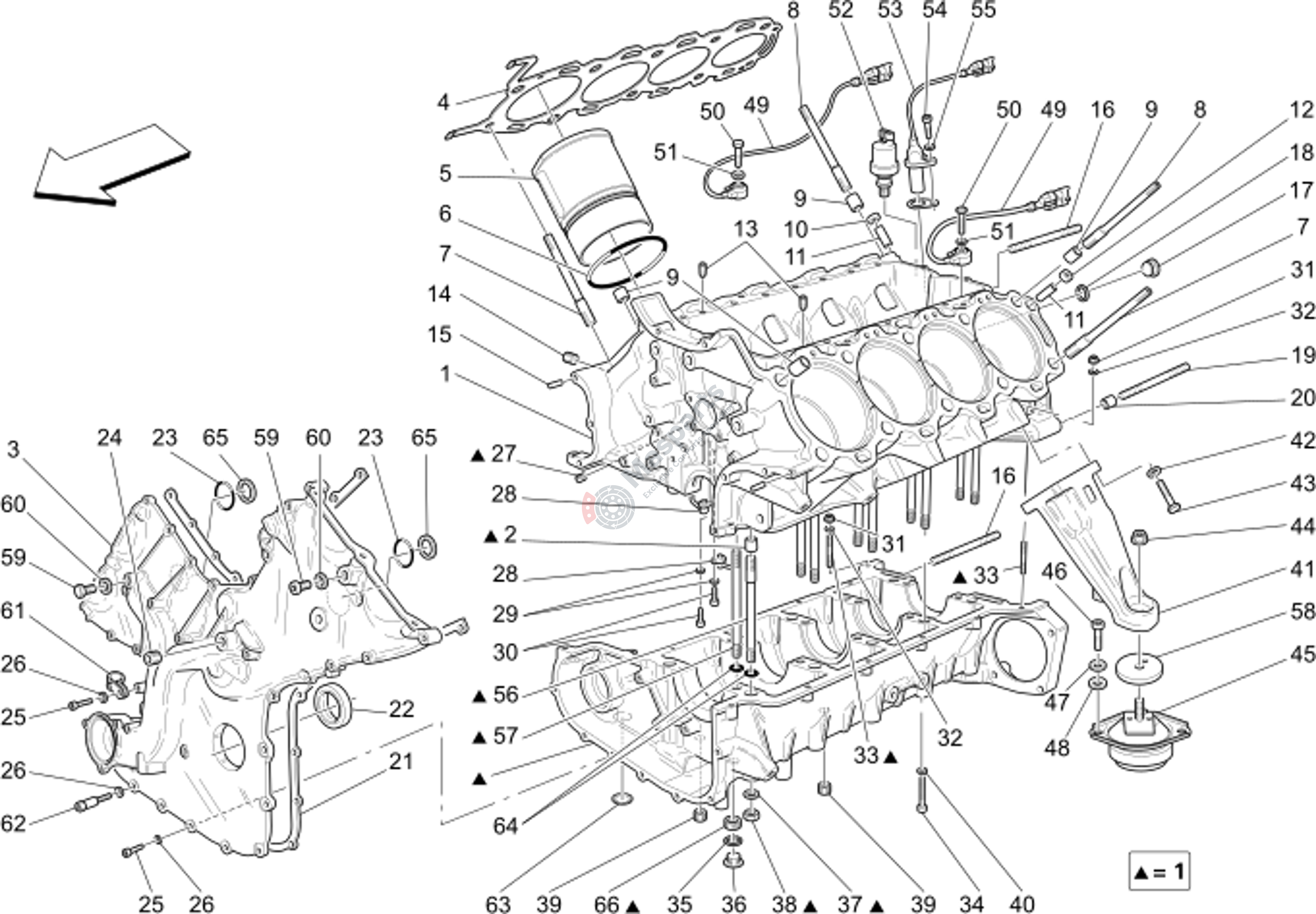

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-225275 | Crankcase / Lower Crank.Asse |
€2.637,18 |
|
|
| 2 | M-176421 | Centering Dowel |
€7,54 |
|
|
| 4 | M-184966 | Rh Head Gasketcrankcase |
€66,52 |
|
|
| 5 | M-190770 | Cylinder Liner |
€227,24 |
|
|
| 6 | M-186251 | O-Ring D.95X3.2 |
€4,88 |
|
|
| 7 | M-194754 | Stud M 14(X2) Stem M 11X1 |
€13,71 |
|
|
| 8 | M-194755 | Stud M 14(X2) Stem M 11X1 |
€13,52 |
|
|
| 9 | M-185360 | Centring Dowel D.16X15 |
€5,43 |
|
|
| 10 | M-194773 | Choke Dowel D.14X6 |
€6,72 |
|
|
| 11 | M-156862 | Check Valve |
€5,78 |
|
|
| 12 | M-184045 | Choke Dowel D.14X6.5 |
€6,72 |
|
|
| 13 | M-177727 | Centering Dowel For Intake |
€4,88 |
|
|
| 14 | M-164400 | Tapered Threaded Plug D.16X1 |
€5,61 |
|
|
| 15 | M-175611 | Centering Dowel |
€3,13 |
|
|
| 16 | M-13546834 | Stud M10X1.25X20 Stem |
€1,86 |
|
|
| 18 | M-10263460 | Gasket 22- 28X 1.5 |
€1,46 |
|
|
| 19 | M-13547034 | Stud M10X1.25X20 Stem |
€12,42 |
|
|
| 20 | M-100052 | Centering Dowel |
€4,88 |
|
|
| 22 | M-188717 | Gasket For Rot.Shaft D.48-65 |
€30,27 |
|
|
| 23 | M-183010 | O-Ring D. 32.93 |
€3,13 |
|
|
| 24 | M-14324940 | Tapered Threaded Plug 14X1 |
€1,46 |
|
|
| 25 | M-14303924 | Socket Head Screw M 6X 70 |
€5,06 |
|
|
| 26 | M-11197774 | Washer |
€1,89 |
|
|
| 27 | M-13525770 | Threaded Fitting M8X12 |
€1,86 |
|
|
| 28 | M-175657 | Pistons Cooling Nozzle |
€13,06 |
|
|
| 29 | M-11181474 | Tapered Rubber Washerd |
€1,46 |
|
|
| 30 | M-14302921 | Socket Head Screw M 4X 10 |
€1,46 |
|
|
| 31 | M-132877 | Small-Sized Hex. Selflock. N |
€4,08 |
|
|
| 32 | M-12604274 | Washer |
€1,46 |
|
|
| 33 | M-13541624 | Stud M6X12 Stem 35 |
€11,04 |
|
|
| 34 | M-14432224 | Screw |
€1,46 |
|
|
| 35 | M-10261860 | Gasket 22- 30X 1.5 |
€0,95 |
|
|
| 36 | M-104280 | Threaded Plug M 22X1.5 |
€10,40 |
|
|
| 37 | M-178348 | Machined Washer D.10.2-20X2. |
€3,13 |
|
|
| 38 | M-133988 | Hex Nut M10X10.25.25X8 |
€1,46 |
|
|
| 39 | M-14325140 | Tapered Threaded Plug 18X51. |
€2,61 |
|
|
| 40 | M-11197774 | Washer |
€1,89 |
|
|
| 41 | M-186029 | Rh Bracket Fast.Engine To Fr |
€85,00 |
|
|
| 42 | M-11190574 | Tapered Rubber Washer 10.5-2 |
€1,46 |
|
|
| 43 | M-11306934 | Bol For Motor Mount Assem |
€3,34 |
|
|
| 44 | M-177018 | Nut For Rear Differential |
€2,20 |
|
|
| 46 | M-14307334 | Socket Head Screw M10X1.25X5 |
€6,62 |
|
|
| 47 | M-11198374 | Washer |
€2,29 |
|
|
| 48 | M-14496624 | Washer |
€1,46 |
|
|
| 50 | M-16043834 | Hex Head Screw M 8X30 |
€1,02 |
|
|
| 51 | M-11198074 | Tapered Rubber Washer D8.5-1 |
€1,15 |
|
|
| 52 | M-135940 | Cpl Pressure Electronic Tran |
€139,32 |
|
|
| 53 | M-219872 | Angolar Speed Sensor |
€86,10 |
|
|
| 54 | M-14305724 | Screw |
€1,46 |
|
|
| 55 | M-11197774 | Washer |
€1,89 |
|
|
| 57 | M-217796 | Stud M12X1.75 Stem M10X1 |
€48,39 |
|
|
| 58 | M-191791 | Engine Bushings Upper Guard |
€3,34 |
|
|
| 60 | M-10284460 | Gasket |
€0,95 |
|
|
| 61 | M-10441590 | Bracket With Sheath |
€0,95 |
|
|
| 62 | M-190876 | Front Cover Fastening Stud |
€16,74 |
|
|
| 63 | M-10158801 | Expansion Cap For Hole D. |
€1,30 |
|
|
| 64 | M-134704 | O-Ring D.7.66X1 |
€0,95 |
|
|
| 65 | M-191620 | Water Output Narrowing From |
€14,63 |
|
|
| 66 | M-223577 | Threaded Fitting M22X1.5X11 |
€3,13 |
|
