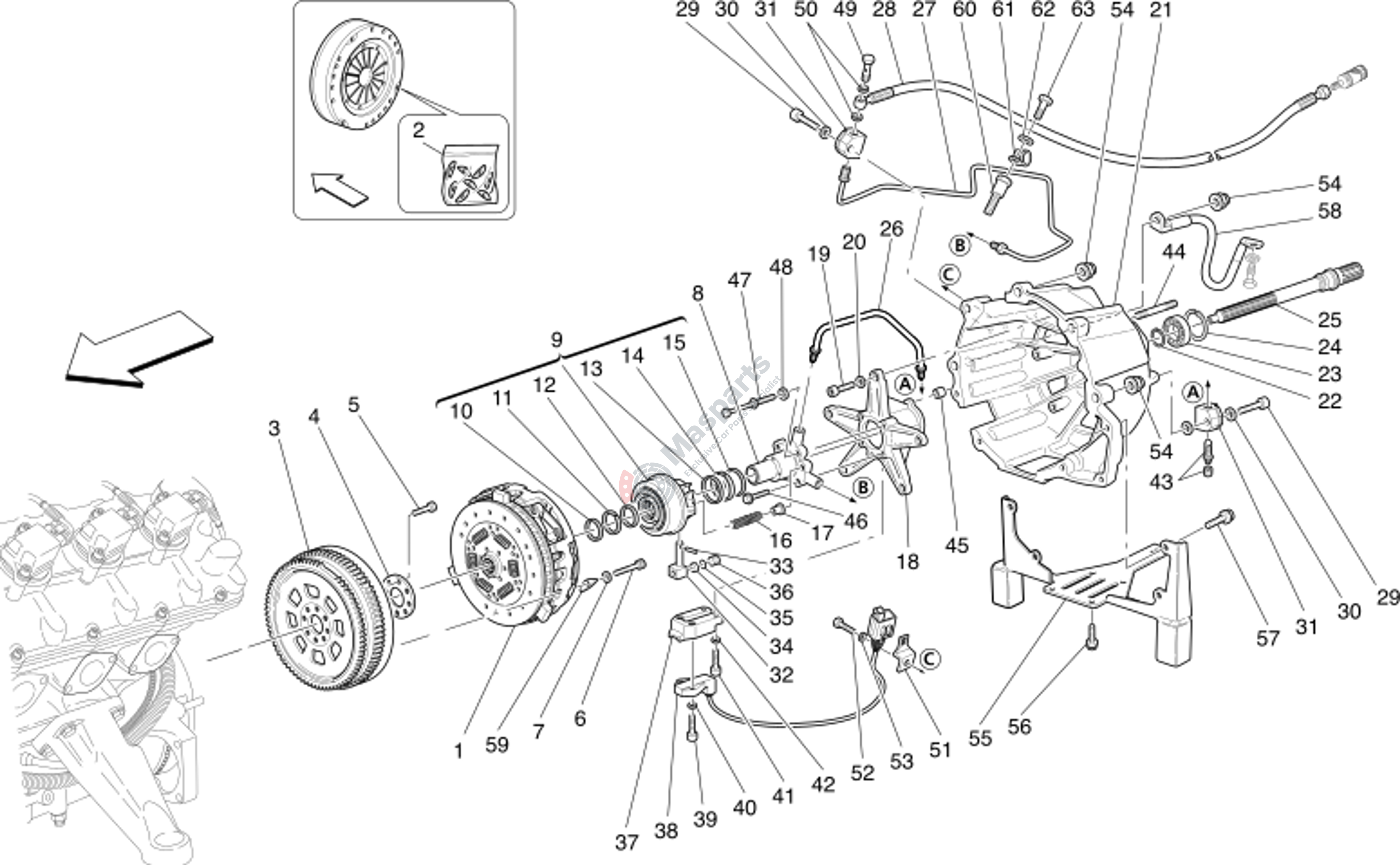

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-196335 | Clutch D.215 With Double Tab |
€1.262,24 |
|
|
| 2 | M-980001166 | Clutch Balancing Kit |
€2.193,85 |
|
|
| 3 | M-230426 | Complete Engine Flywheel |
€695,30 |
|
|
| 4 | M-215963 | Washer |
€5,52 |
|
|
| 5 | M-103875 | S-Lock. Hex Head Screw M10X1 |
€29,62 |
|
|
| 6 | M-185206 | Socket Head Screw M6X60 |
€3,81 |
|
|
| 7 | M-11194377 | Washer |
€1,46 |
|
|
| 8 | M-182952 | Bearing Support Flange |
€483,00 |
|
|
| 9 | M-234953 | S.Centr.Clut.Thrust Bear. W. |
€600,95 |
|
|
| 10 | M-181837 | Scraper Ring D.33 |
€25,67 |
|
|
| 12 | M-181838 | Sealing Ring D.33 |
€24,93 |
|
|
| 13 | M-181828 | Sealing Ring D=44 |
€30,36 |
|
|
| 14 | M-154507 | Sliding Ring D.44 |
€5,61 |
|
|
| 15 | M-181836 | Scraper Ring D.44 |
€28,52 |
|
|
| 16 | M-155207 | Pressure Plate Preload Sprin |
€15,64 |
|
|
| 17 | M-155206 | Spacer For Thrust Bearing Sp |
€21,80 |
|
|
| 19 | M-14305334 | Socket Head Screw M 6X 20 |
€4,78 |
|
|
| 20 | M-12604274 | Washer |
€1,46 |
|
|
| 22 | M-144511 | Stop Ring D. 72 For Hole |
€2,09 |
|
|
| 23 | M-174470 | Grooved Ball Bearing D.35-72 |
€47,60 |
|
|
| 24 | M-182963 | Stop Ring D.35 For Shaft |
€6,26 |
|
|
| 25 | M-182587 | Clutch Shaft |
€257,60 |
|
|
| 29 | M-14305434 | Socket Head Screw M 6X 25 |
€1,15 |
|
|
| 30 | M-12604274 | Washer |
€1,46 |
|
|
| 31 | M-139471 | 2-Way Union M12X1Clutch Pipe |
€111,35 |
|
|
| 32 | M-166676 | Pin On Clutch Supp.Mounting |
€54,46 |
|
|
| 33 | M-14158570 | Elastic Pin D.2X12 |
€1,46 |
|
|
| 34 | M-165676 | Inside Mount Magnet |
€46,00 |
|
|
| 35 | M-165658 | O-Ring I.D.2.57 C.D.1.7 |
€13,06 |
|
|
| 36 | M-167802 | Sensor Mount Plug |
€49,40 |
|
|
| 37 | M-184900 | F1 Sensor Support |
€396,00 |
|
|
| 38 | M-201935 | F1 Gearbox Kit With Sensors |
€290,68 |
|
|
| 39 | M-14303324 | Socket Head Screw M 4X 20 |
€2,50 |
|
|
| 40 | M-10519224 | Split Washer.D. 4.30- 9 X 0 |
€17,11 |
|
|
| 41 | M-14304424 | Socket Head Screw M 5X 25 |
€3,34 |
|
|
| 42 | M-10519378 | Split Washer.D. 5.30-10 X 1 |
€1,46 |
|
|
| 43 | M-121699 | Bleeding Screw With Cap |
€15,73 |
|
|
| 44 | M-13546334 | Stud M10X1.25X20 Stem |
€2,09 |
|
|
| 45 | M-102725 | Centring Dowel D.8X8 |
€1,46 |
|
|
| 46 | M-16286224 | Flanged Hex Head Screw M6X25 |
€2,09 |
|
|
| 47 | M-182955 | End-O-Str.Stud For Hydr.Clut |
€22,54 |
|
|
| 48 | M-12601274 | Washer |
€1,15 |
|
|
| 49 | M-171454 | Filler-Neck For M12X1 Union |
€88,78 |
|
|
| 50 | M-10261060 | Gasket 12- 16X 1.5 |
€0,95 |
|
|
| 51 | M-170925 | Bracket For Clutch Sensor |
€6,16 |
|
|
| 52 | M-10979414 | Screw For Clutch Sensor B |
€1,30 |
|
|
| 53 | M-12601274 | Washer |
€1,15 |
|
|
| 54 | M-14059421 | Nut |
€1,32 |
|
|
| 55 | M-191399 | Steering Box Reaction Bracke |
€170,20 |
|
|
| 56 | M-11730624 | Screw For Front Hood Safe |
€2,09 |
|
|
| 57 | M-16297721 | Flanged Hex Head Screw M8X77 |
€2,23 |
|
|
| 59 | M-191395 | Balancing Mass |
€109,65 |
|
|
| 60 | M-190876 | Front Cover Fastening Stud |
€16,74 |
|
|
| 61 | M-10441190 | Bracket With Sheath |
€0,95 |
|
|
| 62 | M-127494 | Washer |
€1,15 |
|
|
| 63 | M-10979414 | Screw For Clutch Sensor B |
€1,30 |
|
