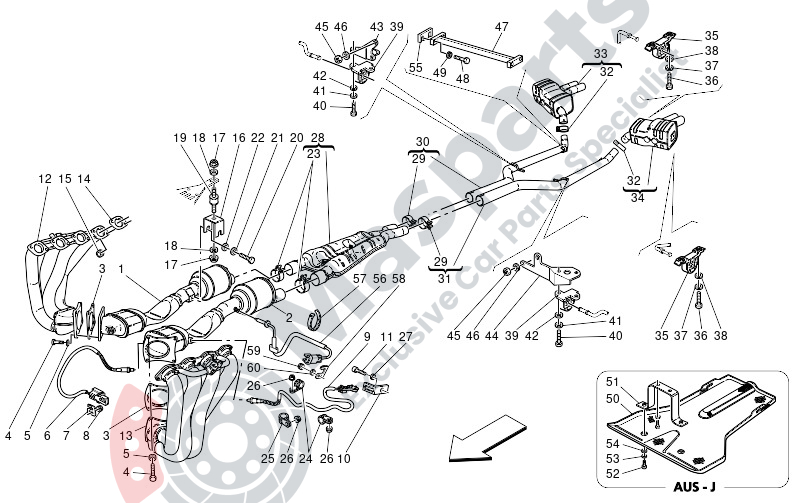

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | M-184798 | Gasket Bet. Manif. And Pre-C |
$24.06 |
|
|
| 4 | M-190213 | Socket Head Screw M 8X 25 |
$3.40 |
|
|
| 5 | M-11193874 | Washer |
$1.33 |
|
|
| 6 | M-182837 | Front Lambda Sensor |
$244.43 |
|
|
| 7 | M-175856 | Bracket For Front Lambda |
$4.45 |
|
|
| 8 | M-67190100 | Nut |
$1.48 |
|
|
| 9 | M-191412 | Rear Oxygen Sensor L=700 |
$307.23 |
|
|
| 11 | M-14305724 | Screw |
$1.67 |
|
|
| 12 | M-183795 | Cpl Rh Exhaust Manifold |
$2,797.83 |
|
|
| 13 | M-183796 | Cpl Lh Exhaust Manifold |
$2,797.83 |
|
|
| 14 | M-182868 | Heads And Exhaust Manifold G |
$3.98 |
|
|
| 15 | M-138392 | Nut For Exhaust Manifold |
$3.35 |
|
|
| 16 | M-187827 | Pre-Cat. Converter Mount. Br |
$15.68 |
|
|
| 17 | M-14048215 | Nut |
$4.85 |
|
|
| 18 | M-12625221 | Washer |
$1.48 |
|
|
| 20 | M-16043324 | Screw |
$1.67 |
|
|
| 21 | M-11193874 | Washer |
$1.33 |
|
|
| 22 | M-12625224 | Washer |
$1.35 |
|
|
| 23 | M-185307 | Clamp D.60.3 For Exhaust Sys |
$28.11 |
|
|
| 25 | M-10441290 | Clamp With Rubber Pad |
$7.68 |
|
|
| 26 | M-67190100 | Nut |
$1.48 |
|
|
| 27 | M-11197774 | Washer |
$2.18 |
|
|
| 28 | M-187826 | Central Silencer |
$2,168.56 |
|
|
| 29 | M-185307 | Clamp D.60.3 For Exhaust Sys |
$28.11 |
|
|
| 30 | M-187823 | Rh Extension Pipe |
$810.70 |
|
|
| 32 | M-185307 | Clamp D.60.3 For Exhaust Sys |
$28.11 |
|
|
| 35 | M-184814 | Support |
$55.00 |
|
|
| 36 | M-16043424 | Screw |
$3.82 |
|
|
| 37 | M-12601374 | Washer |
$1.33 |
|
|
| 38 | M-12638524 | Washer For Abs/Asr Hydrau |
$1.67 |
|
|
| 39 | M-187861 | Anti-Vib. Mount For Exhaust |
$37.78 |
|
|
| 40 | M-16043424 | Screw |
$3.82 |
|
|
| 41 | M-12601374 | Washer |
$1.33 |
|
|
| 42 | M-14496524 | Washer |
$1.67 |
|
|
| 43 | M-187775 | Exhaust Extension Rh Smount |
$16.53 |
|
|
| 44 | M-187774 | Exhaust Extension Lh Support |
$23.40 |
|
|
| 45 | M-16100814 | Nut For Rear Differential |
$1.67 |
|
|
| 46 | M-14496524 | Washer |
$1.67 |
|
|
| 48 | M-16043124 | Screw |
$1.67 |
|
|
| 49 | M-12601374 | Washer |
$1.33 |
|
|
| 50 | M-190270 | Exhaust Lower Guardnot For E |
$289.39 |
|
|
| 51 | M-190271 | Engine Lower Guard Supp.Brac |
$43.54 |
|
|
| 52 | M-14305724 | Screw |
$1.67 |
|
|
| 53 | M-12639724 | Washer |
$1.33 |
|
|
| 54 | M-12601274 | Washer |
$1.35 |
|
|
| 55 | M-193098 | Shim For Exhaust Extension S |
$3.20 |
|
|
| 58 | M-155751 | Clip |
$3.98 |
|
|
| 59 | M-14059111 | Nut |
$1.19 |
|
|
| 60 | M-12644424 | Washer |
$1.35 |
|
