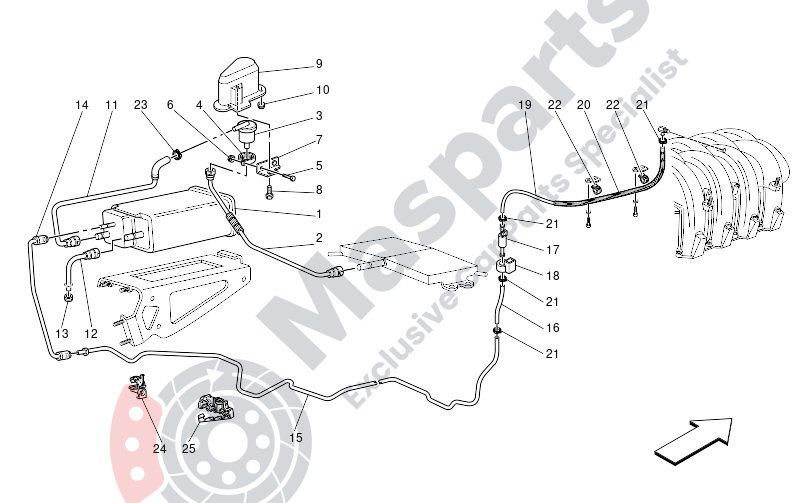

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-220074 | Fuel Vapor Filter |
$183.60 |
|
|
| 3 | M-180573 | Valve With Housing |
$360.67 |
|
|
| 4 | M-66133600 | Bracket |
$10.26 |
|
|
| 5 | M-10902424 | Screw |
$1.54 |
|
|
| 6 | M-14084211 | Nut |
$1.61 |
|
|
| 8 | M-10979414 | Screw For Clutch Sensor B |
$1.54 |
|
|
| 10 | M-14084211 | Nut |
$1.61 |
|
|
| 11 | M-181707 | Vapour Pipe From Roll-Over T |
$46.28 |
|
|
| 12 | M-188124 | Vap. Pipe From Canis. To Whe |
$27.13 |
|
|
| 13 | M-10396880 | Cable Grommet |
$3.71 |
|
|
| 14 | M-181712 | Vapour Pipe From Canist.To U |
$25.01 |
|
|
| 15 | M-190519 | Cpl. Underfloor Pipe |
$41.04 |
|
|
| 16 | M-181703 | Washing Valve Inlet Pipe |
$8.57 |
|
|
| 17 | M-180861 | Washing Valve |
$94.41 |
|
|
| 18 | M-174623 | Buffer For Support |
$17.76 |
|
|
| 19 | M-181704 | Washing Valve Outlet Pipe |
$30.76 |
|
|
| 20 | M-318720333 | Corrugated Pipe Int.D.16.5 E |
$7.52 |
|
|
| 21 | M-13432070 | Collar |
$1.18 |
|
|
| 22 | M-178430 | Cable Fastening Clip D.15 |
$121.19 |
|
|
| 23 | M-13433370 | Clamp |
$1.69 |
|
|
| 25 | M-190409 | Front Brake Pipe Retaining C |
$4.62 |
|
