Diagram image not available

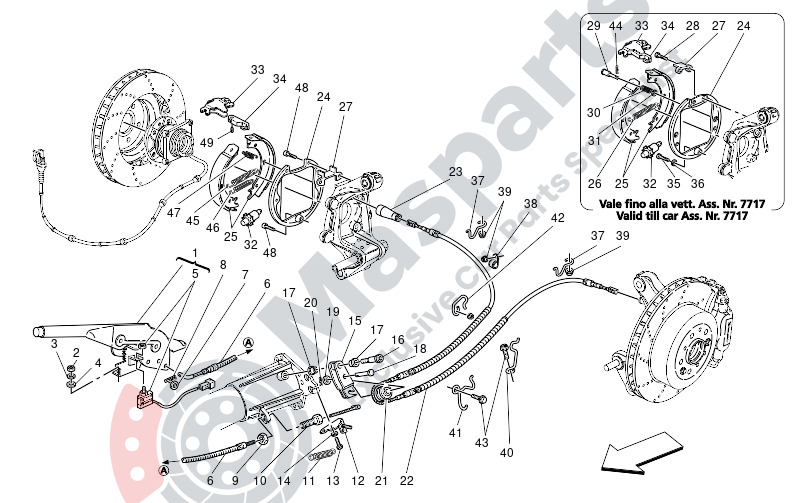

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-188591 | Parking Brake Lever Assembly |
$167.31 |
|
|
| 2 | M-16104421 | Nylon Stop Hex. Nut M8 |
$1.50 |
|
|
| 3 | M-14496521 | Split Washer D. 8.40-17X1 |
$1.50 |
|
|
| 4 | M-12628924 | Split Washer D.2 8.4 -25X 4 |
$2.58 |
|
|
| 9 | M-10726824 | Nut For Emergency Brake C |
$4.41 |
|
|
| 10 | M-185282 | Parking Brake Cable Puller |
$29.90 |
|
|
| 12 | M-186208 | Spring Latching Bracket |
$11.39 |
|
|
| 13 | M-10902024 | Hex Head Screw M 6X 12 |
$1.26 |
|
|
| 16 | M-185278 | Pulley Lever Pin |
$18.16 |
|
|
| 17 | M-175729 | S-Lubricat. Flanged Bushing |
$8.95 |
|
|
| 18 | M-10050811 | Flat Head Pin D. 8X22 With H |
$7.56 |
|
|
| 19 | M-10519601 | Split Washer.D. 8.15-17 X 2 |
$1.33 |
|
|
| 20 | M-10734301 | Split Pin D. 2 X18 |
$0.85 |
|
|
| 21 | M-188587 | Transm.Pulley For Park.Brake |
$15.23 |
|
|
| 22 | M-194875 | Parking Brake Rear Cable |
$101.66 |
|
|
| 23 | M-143938 | Stop Sheath |
$25.62 |
|
|
| 24 | M-388000348 | Parking Brake Shoe Mounting |
$33.13 |
|
|
| 25 | M-248418 | Hand Brake Shoe With Lining |
$133.32 |
|
|
| 26 | M-101276 | Uguale Al 388001334 |
$2.19 |
|
|
| 27 | M-190814 | Reaction Small Plate D.I.H. |
$71.19 |
|
|
| 30 | M-318020337 | Spring |
$0.78 |
|
|
| 31 | M-14496521 | Split Washer D. 8.40-17X1 |
$1.50 |
|
|
| 32 | M-186572 | Adjustment Device |
$101.85 |
|
|
| 33 | M-190782 | Parking Brake Lever |
$34.52 |
|
|
| 36 | M-10569279 | Split Washer D. 6.1- 9 |
$1.18 |
|
|
| 37 | M-186933 | Spring For Rh Side Brake Cab |
$2.00 |
|
|
| 38 | M-10441190 | Bracket With Sheath |
$1.10 |
|
|
| 39 | M-14058411 | Nut |
$1.69 |
|
|
| 40 | M-186934 | Spring |
$2.50 |
|
|
| 41 | M-186935 | Spring For Brake Cable On Pl |
$3.08 |
|
|
| 42 | M-186936 | Rear Spring For Parking Brak |
$3.08 |
|
|
| 43 | M-11730624 | Screw For Front Hood Safe |
$2.42 |
|
|
| 44 | M-58841309 | Safety Clip |
$5.13 |
|
|
| 45 | M-190776 | Long Traction Spring |
$25.04 |
|
|
| 46 | M-190779 | Short Traction Spring |
$67.83 |
|
|
| 47 | M-190780 | Fastening Spring |
$6.93 |
|
|
| 48 | M-190870 | Screw M6X14 |
$3.98 |
|
|
| 49 | M-101282 | Pin For Parking Brake Shoe |
$57.97 |
|
