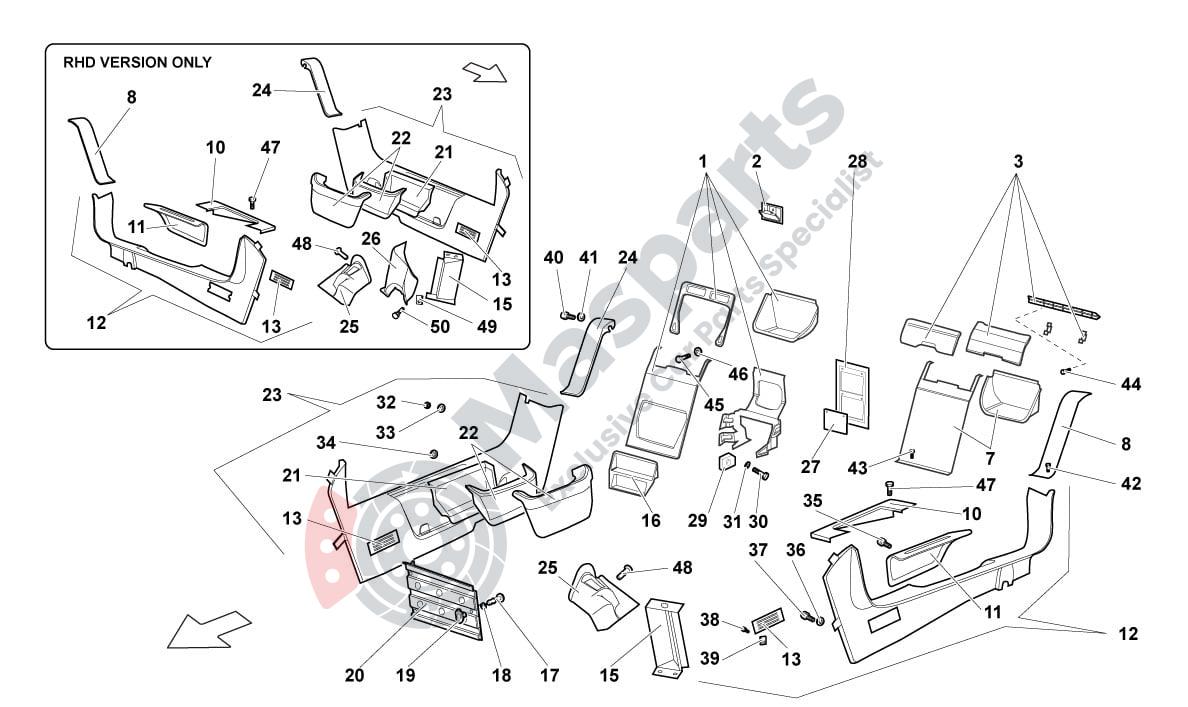

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | L-4D0857635E | Coat Hook |
$118.78 |
|
|
| 3 | L-418868011 | Object Case Cover Assembly |
$437.03 |
|
|
| 7 | L-418861461 | Lining,Lower |
$379.88 |
|
|
| 8 | L-418867477 | Lining,Rear Panel |
$205.63 |
|
|
| 10 | L-418711461 | Lining,Hand Brake |
$568.14 |
|
|
| 12 | L-418854887 | Panel/Thing-Box Assembly |
$1,630.47 |
|
|
| 13 | L-400867397 | Trim,Ventilation |
$15.63 |
|
|
| 16 | L-410868823 | Plate Cd Support |
$119.90 |
|
|
| 16 | L-410868823A | Frame |
$163.05 |
|
|
| 17 | L-400864519A | Plug |
$14.68 |
|
|
| 18 | L-400864179A | Rubber Spacer Ring |
$1.68 |
|
|
| 19 | L-400864994 | Clamp |
$5.49 |
|
|
| 20 | L-413864420 | Passenger Side Foot Rest Plate |
$152.96 |
|
|
| 21 | L-418863092 | Object Case |
$173.69 |
|
|
| 23 | L-418854888 | Panel/Thing-Box Assembly |
$2,089.92 |
|
|
| 24 | L-418867478 | Lining,Rear Panel |
$284.63 |
|
|
| 25 | L-413721585A | Cover,Accel.Pedal |
$344.02 |
|
|
| 27 | L-418867096 | Strip |
$36.81 |
|
|
| 28 | L-418867397 | Frame |
$401.17 |
|
|
| 29 | L-410868357 | Spacer |
$82.03 |
|
|
| 30 | L-WHT003040 | Washer |
$6.33 |
|
|
| 31 | L-N01152221 |
Washer 4.3X9X0.8
|
$0.20 |
|
|
| 32 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.58 |
|
|
| 33 | L-WHT003040 | Washer |
$6.33 |
|
|
| 34 | L-N91109201 |
Washer
|
$1.46 |
|
|
| 35 | L-N91089801 | Flange Tapping Screw |
$1.08 |
|
|
| 36 | L-N91109201 |
Washer
|
$1.46 |
|
|
| 37 | L-N10648502 | Hexalobular Socket |
$1.10 |
|
|
| 38 | L-WHT003102 | Screw |
$0.11 |
|
|
| 39 | L-WHT003424 | Spring |
$0.74 |
|
|
| 41 | L-N10612001 | Washer 5.3X15X1 |
$0.44 |
|
|
| 42 | L-WHT003065 | Parker Screw 2.9 X 16 |
$1.10 |
|
|
| 43 | L-WHT003065 | Parker Screw 2.9 X 16 |
$1.10 |
|
|
| 44 | L-WHT003102 | Screw |
$0.11 |
|
|
| 45 | L-WHT001190 | Screw |
$1.85 |
|
|
| 46 | L-N90531001 | Washer |
$0.94 |
|
|
| 47 | L-N10406504 |
Hexalobular Socketm6X12
|
$1.62 |
|
|
| 48 | L-N91153701 | Blind Rivet 3.2X11 |
$0.55 |
|
