Be aware: Two same spot numbers are selected, for example left and right.

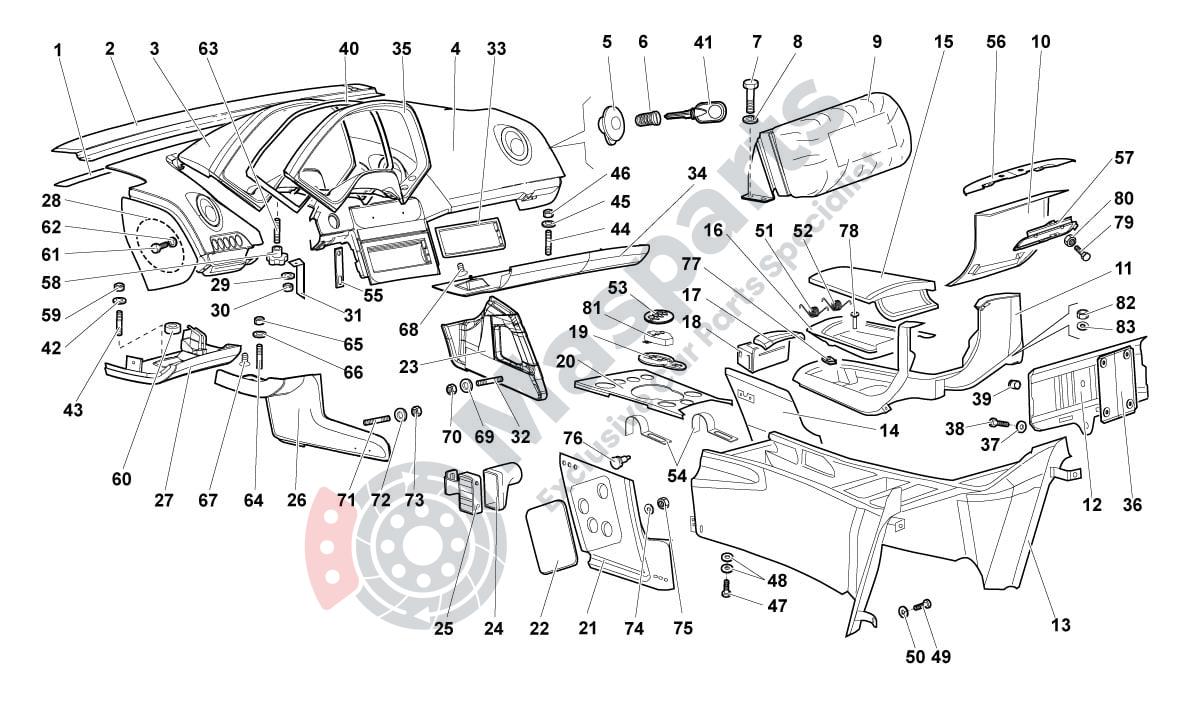

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-410819018 | Gasket |
$26.55 |
|
|
| 2 | L-410858349 | Front Upper Dashboard Assembly |
$3,838.05 |
|
|
| 3 | L-410858278 | Dashboard Cover, Coated |
$1,852.65 |
|
|
| 5 | L-410919237 | Switch |
$116.01 |
|
|
| 6 | L-410919226 | Wrench Kit |
$162.18 |
|
|
| 7 | L-N90612002 | Socket Head Cap |
$0.67 |
|
|
| 8 | L-WHT002963 | Spring Lock Washer |
$0.10 |
|
|
| 9 | L-413880199 | Air Bag Module Ex-9908174 |
$7,064.32 |
|
|
| 11 | L-410863323 | Extension,Center |
$1,431.33 |
|
|
| 11 | L-410863323A | Extension,Center |
$4,288.22 |
|
|
| 11 | L-410864205E | Center Arm Rest |
$5,132.02 |
|
|
| 13 | L-413863242B | Center Console |
$9,072.80 |
|
|
| 15 | L-410863284 | Tray |
$949.99 |
|
|
| 15 | L-410863761 | Box Compartm.Cover Ass. |
$1,835.34 |
|
|
| 16 | L-410863300 | Object Case |
$185.27 |
|
|
| 16 | L-410863300A | Object Case |
$252.21 |
|
|
| 17 | L-413863849 | Tray |
$304.74 |
|
|
| 18 | L-410857950 | Ashtray |
$432.86 |
|
|
| 19 | L-410711139 | Gearbox Selector Frame |
$2,435.57 |
|
|
| 19 | L-410713221 | Frame |
$869.19 |
|
|
| 20 | L-418863315 | Frame |
$1,010.01 |
|
|
| 20 | L-418863315A | Frame Assembly |
$1,010.01 |
|
|
| 22 | L-413868681 | Plate |
$49.52 |
|
|
| 24 | L-410864255 | Air Inlet |
$240.67 |
|
|
| 25 | L-410864877 | Grid |
$109.54 |
|
|
| 27 | L-413858793A | Lining |
$573.69 |
|
|
| 29 | L-N01152427 | Washer 6.4X12.5X1.6 |
$0.25 |
|
|
| 30 | L-N01100637 | Hex.Nut |
$0.28 |
|
|
| 31 | L-410857320 | Backer |
$9.06 |
|
|
| 32 | L-WHT003116 | Tap End Stud |
$9.64 |
|
|
| 32 | L-WHT003228 | Tap End Stud |
$10.45 |
|
|
| 33 | L-410035313 | Autoradio Fastening Bracket |
$37.98 |
|
|
| 33 | L-410035314 | Bracket |
$68.10 |
|
|
| 34 | L-413857504 | Lining |
$256.25 |
|
|
| 35 | L-410858277 | Dashboard Cover Front Part |
$343.98 |
|
|
| 36 | L-410857350 | Sheet |
$131.01 |
|
|
| 37 | L-N90840802 | Washer |
$0.39 |
|
|
| 38 | L-WHT003114 | Pan Head Sheet |
$4.73 |
|
|
| 39 | L-410919242 | Frame |
$27.30 |
|
|
| 40 | L-410858177 | Gasket |
$4.44 |
|
|
| 41 | L-410860163 | Key |
$38.97 |
|
|
| 42 | L-N91109202 | Washer |
$0.55 |
|
|
| 43 | L-WHT003116 | Tap End Stud |
$9.64 |
|
|
| 43 | L-WHT003228 | Tap End Stud |
$10.45 |
|
|
| 44 | L-WHT003116 | Tap End Stud |
$9.64 |
|
|
| 45 | L-N91109202 | Washer |
$0.55 |
|
|
| 46 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 47 | L-WHT003069 | Screw |
$38.84 |
|
|
| 48 | L-WHT003040 | Washer |
$6.52 |
|
|
| 49 | L-WHT003069 | Screw |
$38.84 |
|
|
| 50 | L-WHT002961 | Washer |
$0.33 |
|
|
| 51 | L-410863285 | Spring |
$42.19 |
|
|
| 51 | L-410863285A | Spring |
$53.21 |
|
|
| 52 | L-410863286 | Spring |
$42.19 |
|
|
| 52 | L-410863286A | Spring |
$53.21 |
|
|
| 53 | L-400713110D | Coulisse |
$851.87 |
|
|
| 54 | L-410864191 | Sheet |
$47.38 |
|
|
| 55 | L-410035329 | Bracket |
$55.81 |
|
|
| 58 | L-410858482 | Head Pipe Plug |
$9.35 |
|
|
| 59 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 60 | L-400804347 | Spacer Plate Sitzschiene |
$15.18 |
|
|
| 61 | L-WHT003069 | Screw |
$38.84 |
|
|
| 62 | L-WHT002961 | Washer |
$0.33 |
|
|
| 63 | L-WHT003228 | Tap End Stud |
$10.45 |
|
|
| 64 | L-WHT003116 | Tap End Stud |
$9.64 |
|
|
| 65 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 66 | L-WHT002961 | Washer |
$0.33 |
|
|
| 67 | L-410863988 | Plug |
$0.91 |
|
|
| 68 | L-400867299 | Clip |
$15.41 |
|
|
| 69 | L-WHT002961 | Washer |
$0.33 |
|
|
| 70 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 71 | L-WHT003094 | Tap End Stud |
$11.37 |
|
|
| 72 | L-N91109201 |
Washer
|
$1.50 |
|
|
| 73 | L-WHT002959 | Lock Nut Nylonstop |
$0.70 |
|
|
| 74 | L-N91109201 |
Washer
|
$1.50 |
|
|
| 75 | L-WHT002959 | Lock Nut Nylonstop |
$0.70 |
|
|
| 76 | L-400863119 |
Plug
|
$0.35 |
|
|
| 77 | L-N91104501 | Snap Nut Clamp |
$35.96 |
|
|
| 78 | L-WHT001190 | Screw |
$1.90 |
|
|
| 79 | L-N01020717 | Hexagon Head Bolt |
$1.06 |
|
|
| 80 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 82 | L-WHT002959 | Lock Nut Nylonstop |
$0.70 |
|
|
| 83 | L-N91109202 | Washer |
$0.55 |
|
