Be aware: Two same spot numbers are selected, for example left and right.

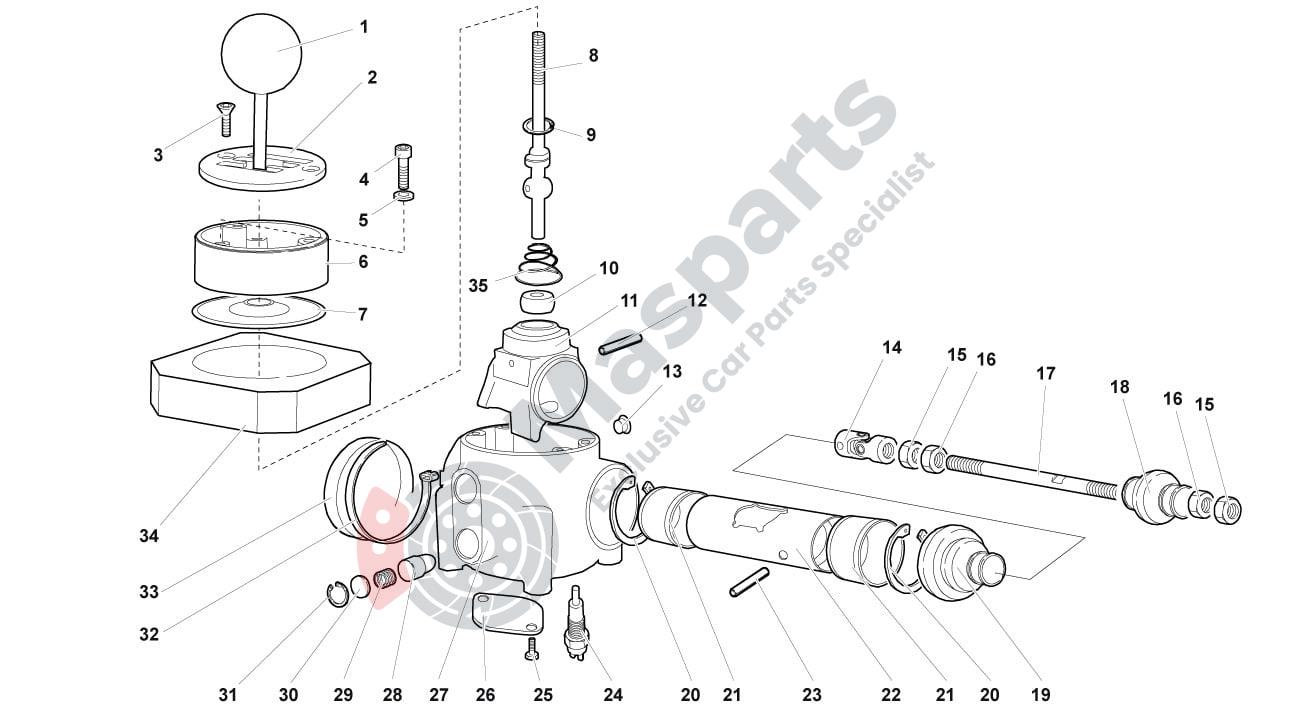

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-410711141 | Hilt |
$2,554.37 |
|
|
| 2 | L-410713109 | Gear Selector |
$3,087.70 |
|
|
| 3 | L-WHT003564 | Screew |
$11.51 |
|
|
| 4 | L-N10544302 | Pan Head Bolt |
$1.57 |
|
|
| 5 | L-N90247901 | Washer |
$47.89 |
|
|
| 6 | L-410711795 | Spacer |
$755.64 |
|
|
| 7 | L-410711527A | Cap |
$198.74 |
|
|
| 8 | L-410711123 | Lever |
$5,658.91 |
|
|
| 9 | L-N0124101 | Lock Ring 10X1 |
$0.13 |
|
|
| 10 | L-410711189 | Gear Lever Ball |
$651.22 |
|
|
| 11 | L-410711111 | Gearbox Lever Seat |
$3,256.12 |
|
|
| 12 | L-WHT003590 | Elastic Pin 4X40 |
$10.78 |
|
|
| 13 | L-410711514 | Fairlead |
$1.24 |
|
|
| 14 | L-410711613 | Lh Threaded Joint |
$689.40 |
|
|
| 15 | L-WHT003615 | M12X1.25 "Uni 5589"Nut |
$0.95 |
|
|
| 16 | L-WHT003616 | M12X1.25 Sin. "8G" Nut |
$147.65 |
|
|
| 17 | L-410711433 | Tie Rod |
$114.53 |
|
|
| 18 | L-410711423 | Gearbox Tierod Jointsleeve |
$58.72 |
|
|
| 19 | L-410711411 | Cowling |
$171.79 |
|
|
| 20 | L-WHT003579 | Anello Seeger Ina Br 40 |
$4.44 |
|
|
| 21 | L-410711067 | Bushing |
$234.67 |
|
|
| 22 | L-410711158 | Guide Rod |
$2,936.12 |
|
|
| 23 | L-N10738501 | Elastic Pin 3X32 Din1481 |
$0.27 |
|
|
| 24 | L-086941521A | Switch Selector |
$91.85 |
|
|
| 26 | L-410711599 | Plate |
$37.78 |
|
|
| 27 | L-410711061 | Gearbox Tower |
$664.70 |
|
|
| 28 | L-410711039 | Gearbox Tower Cap |
$62.54 |
|
|
| 29 | L-410711490 | Spring |
$92.18 |
|
|
| 30 | L-410711217A | Spacer Bush |
$23.97 |
|
|
| 31 | L-WHT003576 | O-Ring I 18 Uni 3654 |
$0.15 |
|
|
| 33 | L-410711213 | Cowling |
$53.28 |
|
|
| 34 | L-410711267 | Seal Aerostop/Fa Cn/20 |
$30.20 |
|
|
| 35 | L-410711369 | Conic Spring |
$273.40 |
|
