Be aware: Two same spot numbers are selected, for example left and right.

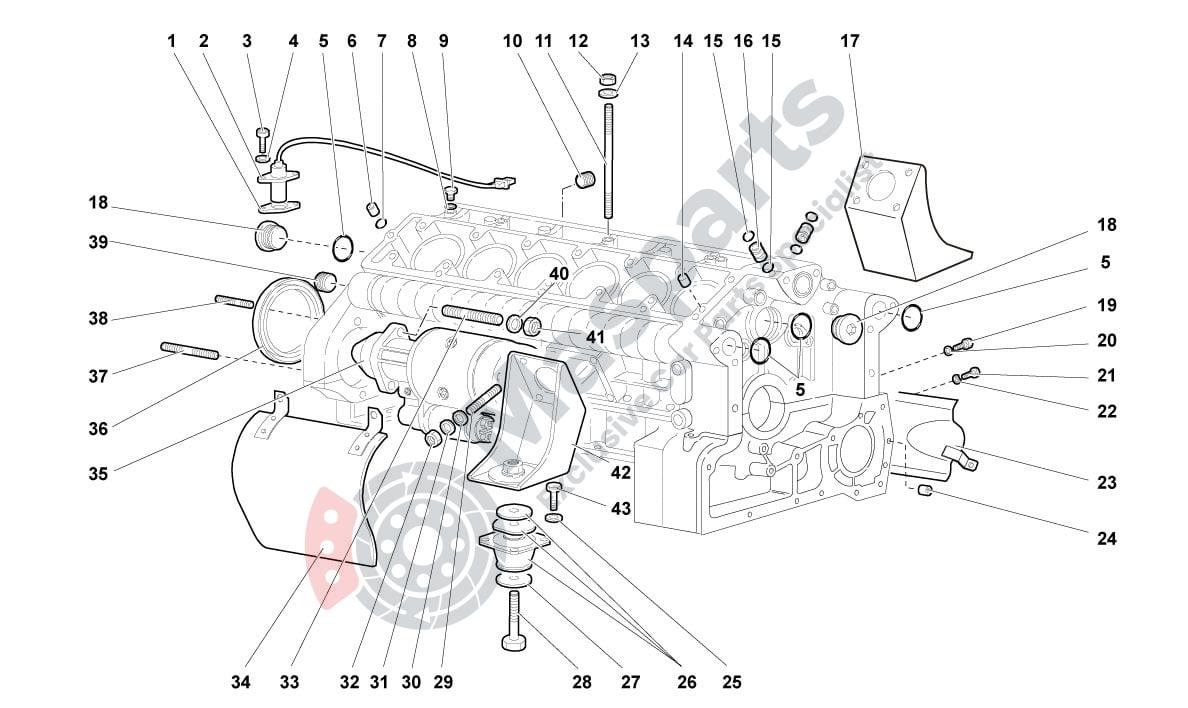

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-07M103899 | Sensor Shim 0.2 |
$4.60 |
|
|
| 1 | L-07M103899A | Sensor Shim 0.4 |
$7.34 |
|
|
| 2 | L-07M905381 | Sensor Sen 8 D |
$515.53 |
|
|
| 3 | L-N10648502 | Hexalobular Socket |
$1.10 |
|
|
| 4 | L-N90247901 | Washer |
$47.82 |
|
|
| 7 | L-WHT003059 | O-Ring |
$130.06 |
|
|
| 8 | L-N0138492 | Sealing Washer |
$3.42 |
|
|
| 10 | L-07M103545 | Taper Plug 12X1.5X10 |
$2.24 |
|
|
| 12 | L-N0111849 | Hex.Head Clamping Nut |
$1.91 |
|
|
| 13 | L-N90179103 | Washer |
$1.29 |
|
|
| 14 | L-WHT003077 | Reference Pin 8G6X14C40 |
$6.45 |
|
|
| 15 | L-WHT003057 | O-Ring |
$1.85 |
|
|
| 16 | L-07M103139 | Sleeve |
$28.70 |
|
|
| 17 | L-410813209 | Support |
$111.90 |
|
|
| 18 | L-07M103485 | Oil Duct Plug |
$50.96 |
|
|
| 19 | L-N10650701 | Hexalobular Socket Pan Head B Lt |
$1.57 |
|
|
| 20 | L-WHT003041 | Soft Copper Washer 6.4X12X1.5 |
$0.73 |
|
|
| 21 | L-N91143901 | 12-Point Socket |
$2.80 |
|
|
| 22 | L-WHT000771 | Spring Lock Washer |
$1.00 |
|
|
| 23 | L-07M103750 | Heat Protection Sheet |
$450.72 |
|
|
| 24 | L-WHT003098 | Grano 14X10,5X13 C40/B |
$25.06 |
|
|
| 26 | L-400199703 | Support |
$163.13 |
|
|
| 27 | L-N91089301 | Washer |
$110.44 |
|
|
| 28 | L-WHT000776 | Screw |
$26.63 |
|
|
| 29 | L-WHT003029 | Tap End Stud |
$8.13 |
|
|
| 30 | L-N90179103 | Washer |
$1.29 |
|
|
| 31 | L-WHT000771 | Spring Lock Washer |
$1.00 |
|
|
| 32 | L-N01100845 | Hex.Nut |
$1.74 |
|
|
| 34 | L-07M911295 | Heat Protection Sheet |
$2,505.88 |
|
|
| 35 | L-07M911023 | Starter |
$5,488.27 |
|
|
| 36 | L-07M103089 | Grommet 100 X 120 X 12 Mm |
$186.12 |
|
|
| 37 | L-WHT003027 | Tap End Stud |
$7.74 |
|
|
| 38 | L-WHT003028 | Tap End Stud |
$16.40 |
|
|
| 39 | L-07M103801 | Plug |
$20.46 |
|
|
| 40 | L-WHT003055 | Washer 13X24X1.2 Din137/B C72 |
$0.52 |
|
|
| 41 | L-07M911094 | Starter Motor Nut |
$6.05 |
|
|
| 42 | L-410813210 | Support |
$793.81 |
|
|
| 43 | L-N90630504 | Hex. Bolt With |
$2.58 |
|
