Be aware: Two same spot numbers are selected, for example left and right.

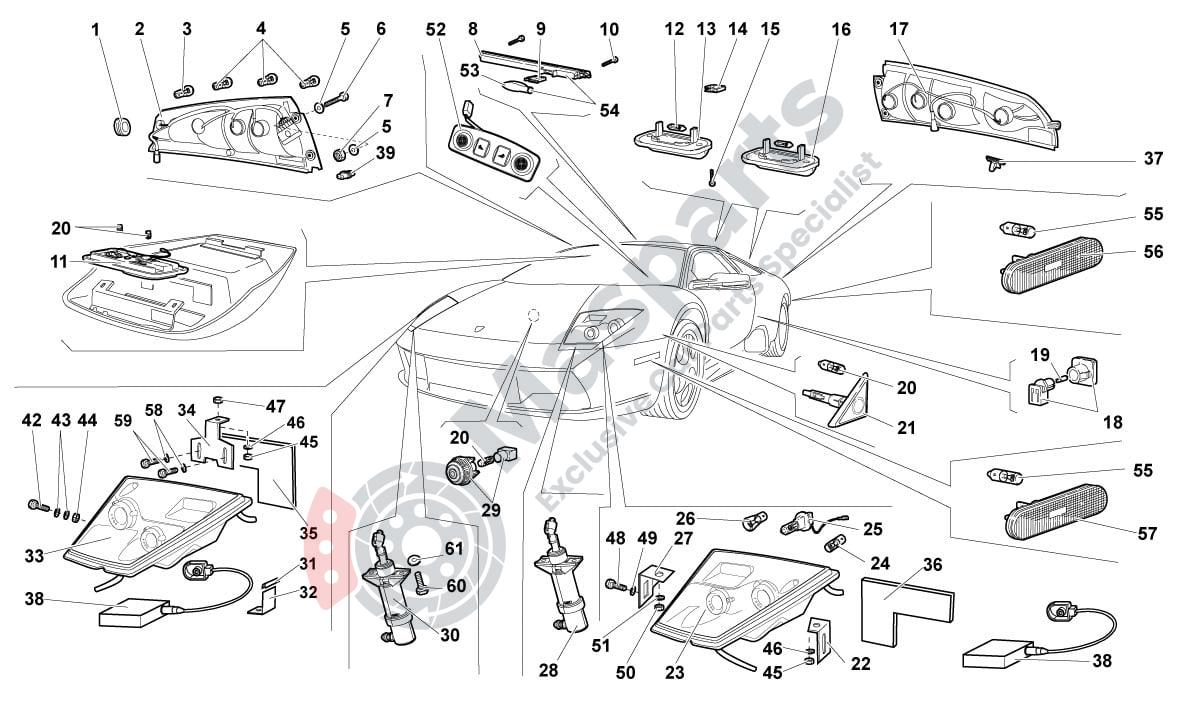

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-400821190 | Grommet |
$2.20 |
|
|
| 2 | L-410945096A | Rear Light |
$2,786.62 |
|
|
| 6 | L-WHT000757 | Screw |
$4.52 |
|
|
| 7 | L-N02214812 | Hex.Head Clamping |
$1.86 |
|
|
| 8 | L-410945249A | Stop Lamp |
$161.74 |
|
|
| 9 | L-867906231 | Connector |
$1.04 |
|
|
| 11 | L-410947103 | Cockpit Ceiling Lamp Assembly |
$135.65 |
|
|
| 13 | L-8N0943022A | Licence Plate Light |
$15.77 |
|
|
| 15 | L-WHT003065 | Parker Screw 2.9 X 16 |
$1.14 |
|
|
| 16 | L-8N0943021A | Licence Plate Light |
$15.94 |
|
|
| 17 | L-410945095A | Rear Light |
$2,786.62 |
|
|
| 18 | L-410947413 | Ceiling Light |
$75.36 |
|
|
| 20 | L-N0177532 | Lamp Bulb |
$0.98 |
|
|
| 21 | L-410953081 | Direction Indicator Light |
$259.94 |
|
|
| 22 | L-410941057 | Bracket |
$53.91 |
|
|
| 22 | L-410941058 | Bracket |
$53.91 |
|
|
| 23 | L-413941031E | Gas Discharge Headlight |
$11,146.47 |
|
|
| 24 | L-N0177522 | Bulb |
$1.80 |
|
|
| 25 | L-N10445703 | Discharge Lamp |
$145.04 |
|
|
| 26 | L-N10445602 | Bulb |
$14.09 |
|
|
| 27 | L-410941155 | Bracket |
$99.82 |
|
|
| 28 | L-410955985 | Headlight Washer Assembly |
$181.45 |
|
|
| 30 | L-410955984 | Headlight Washer Assembly |
$181.45 |
|
|
| 31 | L-410941119 | Gasket |
$21.74 |
|
|
| 32 | L-410941451 | Bracket |
$43.71 |
|
|
| 32 | L-410941452 | Bracket |
$28.06 |
|
|
| 33 | L-413941032E | Gas Discharge Headlight |
$11,146.47 |
|
|
| 34 | L-410941355 | Bracket |
$77.33 |
|
|
| 35 | L-410941982 | Protection |
$133.33 |
|
|
| 36 | L-410941981 | Protection |
$34.26 |
|
|
| 37 | L-410972672 | Support |
$0.83 |
|
|
| 38 | L-3B0941641 | Headlamp Ecu |
$1,385.48 |
|
|
| 39 | L-410945247 | Connector |
$11.30 |
|
|
| 42 | L-N10718801 |
Hexagon Flange M6X16
|
$1.57 |
|
|
| 43 | L-WHT002961 | Washer |
$0.34 |
|
|
| 44 | L-N01508213 |
Hexagon Flange Nutm6
|
$0.17 |
|
|
| 45 | L-N01118312 | Prev.Torque Type M6 |
$1.86 |
|
|
| 46 | L-WHT002961 | Washer |
$0.34 |
|
|
| 47 | L-WHT003044 | Washer |
$7.48 |
|
|
| 48 | L-N90319404 | Hexagon Flange |
$1.91 |
|
|
| 49 | L-WHT002961 | Washer |
$0.34 |
|
|
| 50 | L-N01118312 | Prev.Torque Type M6 |
$1.86 |
|
|
| 51 | L-WHT003044 | Washer |
$7.48 |
|
|
| 53 | L-410945090 | Cap |
$9.16 |
|
|
| 54 | L-0R1470010 | Kit 3 Stop + Protezione |
$88.79 |
|
|
| 58 | L-WHT002961 | Washer |
$0.34 |
|
|
| 60 | L-WHT003069 | Screw |
$39.01 |
|
|
| 61 | L-WHT002961 | Washer |
$0.34 |
|
