Be aware: Two same spot numbers are selected, for example left and right.

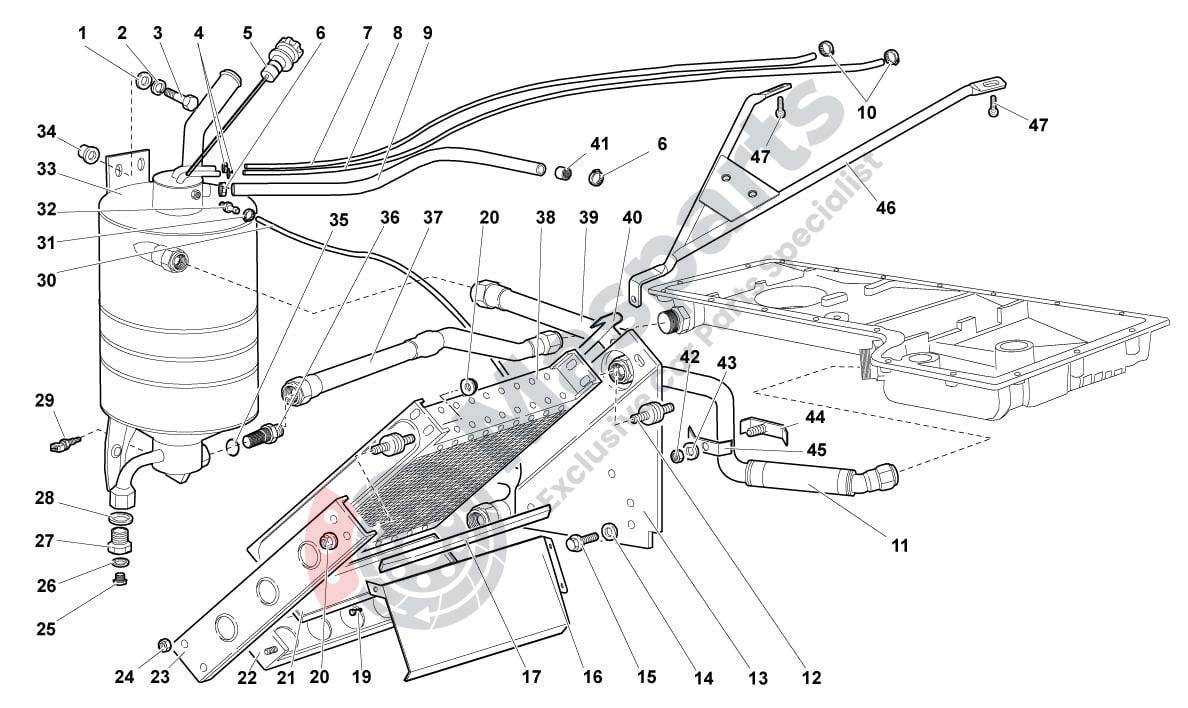

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N90840802 | Washer |
$0.38 |
|
|
| 2 | L-N0152785 |
Washer 8X16X2
|
$0.39 |
|
|
| 5 | L-07M115311D | Cover |
$1,545.09 |
|
|
| 6 | L-400127217 | Securing Clip |
$0.34 |
|
|
| 7 | L-07M115278A | Pipe |
$103.72 |
|
|
| 8 | L-07M115278 | Pipe |
$103.72 |
|
|
| 9 | L-07M115657 | Pipe |
$124.73 |
|
|
| 10 | L-400251189E | Clamp |
$12.14 |
|
|
| 11 | L-07M117413 | Pipe |
$1,415.86 |
|
|
| 13 | L-410813404 | Internal Oil Cooler Sheet |
$80.79 |
|
|
| 14 | L-WHT002961 | Washer |
$0.33 |
|
|
| 15 | L-N90319404 | Hexagon Flange |
$1.85 |
|
|
| 16 | L-07M119275 | Rear Panel Oil Radiator |
$322.50 |
|
|
| 17 | L-07M119467 | Air Conveyor Seal |
$91.24 |
|
|
| 19 | L-N90632303 | Screw |
$1.97 |
|
|
| 20 | L-N01508213 |
Hexagon Flange Nutm6
|
$0.17 |
|
|
| 21 | L-410117079 | Support |
$8.99 |
|
|
| 22 | L-410117095 | Lower Sheet For Oil Cooler Support |
$456.22 |
|
|
| 23 | L-410117141 | Side Oil Cooler Bracket |
$434.87 |
|
|
| 24 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.58 |
|
|
| 25 | L-N0297042 | Screw Plug |
$9.94 |
|
|
| 26 | L-N91122801 | Washer |
$2.47 |
|
|
| 27 | L-07M115707A | Pipe Union |
$106.75 |
|
|
| 28 | L-WHT003050 | Washer |
$5.73 |
|
|
| 29 | L-07L919501A | Sensor |
$294.41 |
|
|
| 34 | L-410814939 | Threaded Bushing |
$7.02 |
|
|
| 35 | L-WHT003309 | Washer |
$25.62 |
|
|
| 36 | L-07M115157 | Unit |
$2,539.56 |
|
|
| 37 | L-07M115688 | Pipe |
$786.59 |
|
|
| 38 | L-07M117021 | Engine Oil Radiator |
$3,623.93 |
|
|
| 39 | L-07M115689 | Pipe |
$373.07 |
|
|
| 40 | L-410813271 | Bracket |
$243.84 |
|
|
| 41 | L-07L129793 | Securing Part |
$97.99 |
|
|
| 42 | L-N01118312 | Prev.Torque Type M6 |
$1.80 |
|
|
| 43 | L-WHT003407 | Washer |
$0.44 |
|
|
| 44 | L-07M115633A | Staffa Per Tubi Olio |
$24.55 |
|
|
| 45 | L-07M115634A | Staffa Per Tubi Olio |
$21.29 |
|
|
| 46 | L-410117073 | Frame |
$380.93 |
|
|
| 47 | L-N10718801 |
Hexagon Flange M6X16
|
$1.52 |
|
