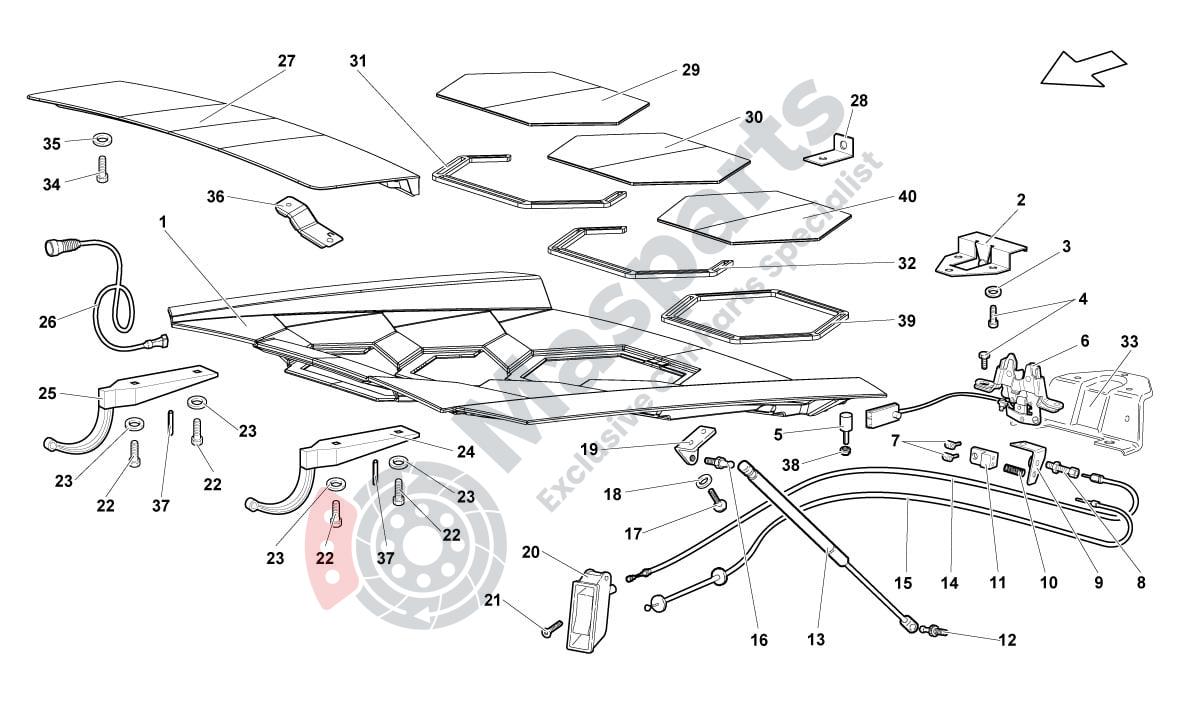

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-429827023 | Trunk Lid |
$34,569.12 |
|
|
| 2 | L-418827322A | Hook |
$822.96 |
|
|
| 3 | L-WHT003407 | Washer |
$0.44 |
|
|
| 4 | L-N90319404 | Hexagon Flange |
$1.85 |
|
|
| 5 | L-417807333 | Support |
$29.43 |
|
|
| 6 | L-410827501B | Lock,Compl. |
$640.21 |
|
|
| 7 | L-410827654 | Clamp |
$166.50 |
|
|
| 8 | L-410827421 | Bonnet Lock Wire Adjustment |
$5.16 |
|
|
| 9 | L-418827909 | Bracket |
$37.95 |
|
|
| 10 | L-410827665 | Spring Engine Bonnet |
$21.75 |
|
|
| 11 | L-410814333 | Bonnet Lock Wire Retainer |
$287.03 |
|
|
| 12 | L-6X0827439A | Ball Pin |
$62.56 |
|
|
| 13 | L-418827401A | Gas-Filled Strut |
$93.73 |
|
|
| 14 | L-418827531 | Engine Bonnet Opening Cable Assembly |
$78.37 |
|
|
| 15 | L-418827532 | Engine Bonnet Emergence Opening Cable As |
$59.31 |
|
|
| 16 | L-895827439B | Ball Pinn |
$3.87 |
|
|
| 17 | L-N90319404 | Hexagon Flange |
$1.85 |
|
|
| 18 | L-WHT003407 | Washer |
$0.44 |
|
|
| 19 | L-410827601 | Shock Absorber Fastening Bracket |
$104.05 |
|
|
| 19 | L-410827602 | Shock Absorber Fastening Bracket |
$121.65 |
|
|
| 20 | L-400827185 | Operating Lever |
$1,575.29 |
|
|
| 21 | L-WHT003068 |
Screw
|
$1.18 |
|
|
| 22 | L-N90319404 | Hexagon Flange |
$1.85 |
|
|
| 23 | L-WHT003407 | Washer |
$0.44 |
|
|
| 24 | L-418827152 | Hinge Assembly |
$565.08 |
|
|
| 25 | L-418827151 | Hinge Assembly |
$275.25 |
|
|
| 26 | L-429971170 | Harness,Stop Light |
$321.78 |
|
|
| 27 | L-429827991 | Cover |
$6,007.39 |
|
|
| 28 | L-410827454 | Hydraulic Power Steering Support |
$16.20 |
|
|
| 29 | L-429827631C | Insert Part |
$3,323.24 |
|
|
| 30 | L-429827632C | Insert Part |
$3,323.24 |
|
|
| 34 | L-N90319404 | Hexagon Flange |
$1.85 |
|
|
| 35 | L-WHT003407 | Washer |
$0.44 |
|
|
| 36 | L-418827603 | Bracket |
$33.92 |
|
|
| 36 | L-418827604 | Bracket |
$33.92 |
|
|
| 37 | L-N10073601 | Coiled Spring |
$0.45 |
|
|
| 38 | L-N01111611 | Hex.Nut M6 |
$1.63 |
|
|
| 40 | L-429827446C | Insert Part |
$3,323.24 |
|
