Be aware: Two same spot numbers are selected, for example left and right.

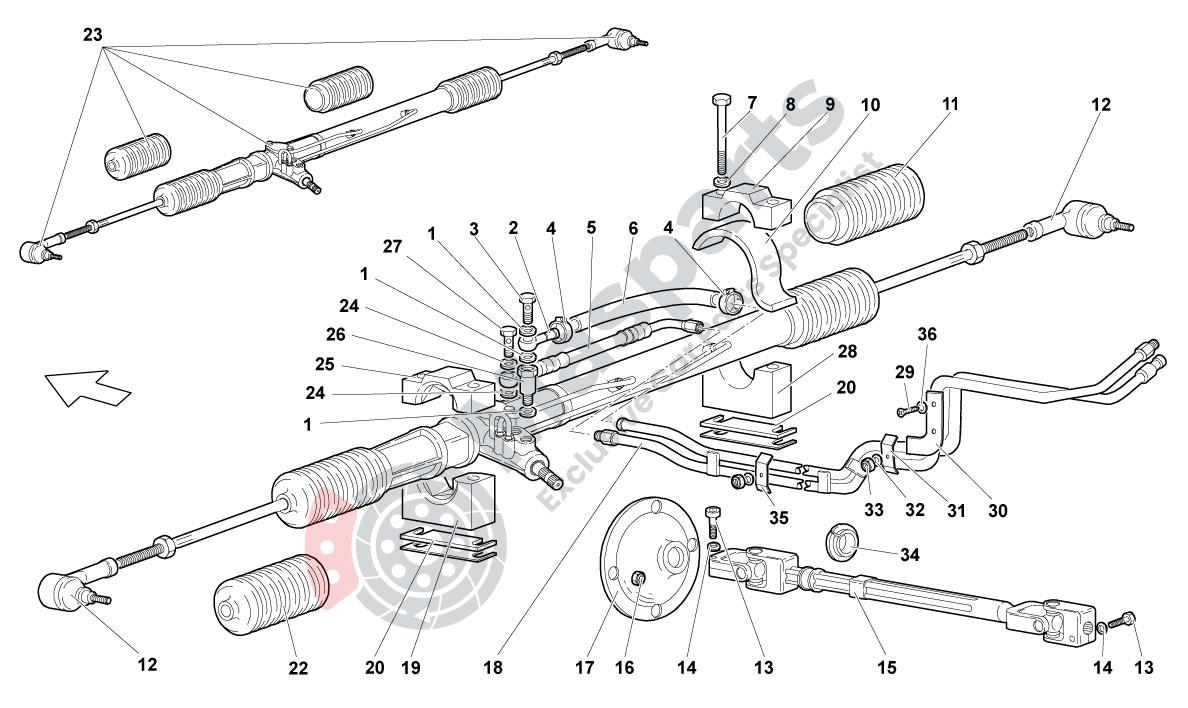

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N0138481 | Washer |
$0.59 |
|
|
| 2 | L-413422247A | Neck |
$48.42 |
|
|
| 3 | L-400422279A | Pipe Union |
$9.87 |
|
|
| 4 | L-N0245097 | Clamp |
$15.70 |
|
|
| 5 | L-413422895A | Hose |
$865.73 |
|
|
| 6 | L-410422890A | Return Hose |
$62.91 |
|
|
| 7 | L-N10576802 | Hexagon Head Bolt |
$5.14 |
|
|
| 8 | L-N0122115 | Washer |
$0.76 |
|
|
| 9 | L-410422761A | Support |
$535.60 |
|
|
| 10 | L-400422850 | Rubber Spacer |
$16.62 |
|
|
| 11 | L-410419831 | Cup |
$1,101.20 |
|
|
| 13 | L-WHT003310 | Hexagon Socket |
$6.35 |
|
|
| 14 | L-410422395 | Spring Seat |
$9.29 |
|
|
| 15 | L-410419515A | Steering Shaft |
$548.29 |
|
|
| 16 | L-N01100637 | Hex.Nut |
$0.28 |
|
|
| 17 | L-410422326 | Seal |
$234.32 |
|
|
| 18 | L-410422867B | Feed Pipe |
$3,001.18 |
|
|
| 18 | L-410422867C | Feed Pipe |
$2,424.03 |
|
|
| 19 | L-410422761 | Support |
$1,004.24 |
|
|
| 20 | L-410422127A | Spacer Ring |
$15.76 |
|
|
| 22 | L-410419831 | Cup |
$1,101.20 |
|
|
| 23 | L-413422061C | Steering Gear |
$6,002.36 |
|
|
| 24 | L-N0138492 | Sealing Washer |
$3.52 |
|
|
| 25 | L-410422874 | Clip |
$1,275.50 |
|
|
| 26 | L-410422293B | Hose Connection |
$163.91 |
|
|
| 27 | L-400422269A | Hollow Screw |
$16.80 |
|
|
| 28 | L-410422873 | Clip |
$368.22 |
|
|
| 29 | L-N0102649 | Hexagon Head Bolt |
$1.85 |
|
|
| 30 | L-410422078 | Sheet |
$301.27 |
|
|
| 31 | L-410422477A | Plate |
$22.16 |
|
|
| 32 | L-N10612001 | Washer 5.3X15X1 |
$0.45 |
|
|
| 33 | L-N0211963 | Hex.Head Clamping |
$0.65 |
|
|
| 34 | L-410419548 | Clamping Sleeve |
$102.85 |
|
|
| 35 | L-410422477A | Plate |
$22.16 |
|
|
| 36 | L-N0115124 | Washer |
$2.89 |
|
