Be aware: Two same spot numbers are selected, for example left and right.

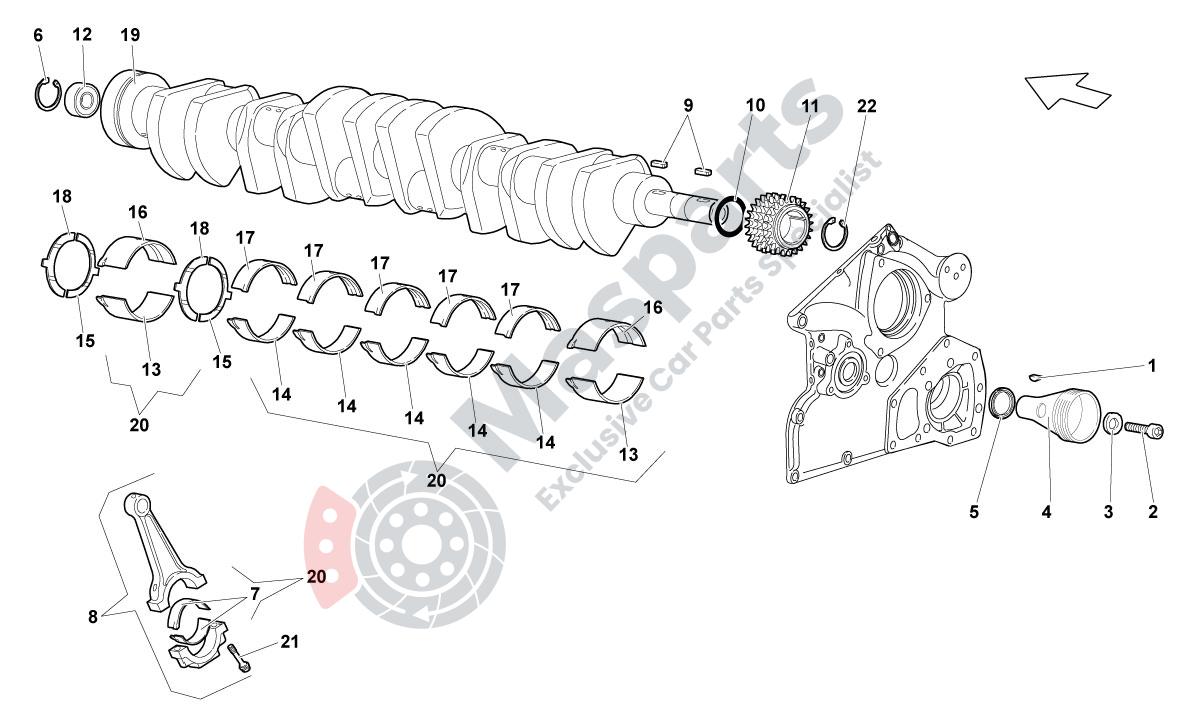

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-410109445 | Tab 15X5X5 Uni 92/C40 |
$1.23 |
|
|
| 2 | L-N10717901 | Hexagon Head Bolt |
$11.10 |
|
|
| 3 | L-WHT003056 | Washer |
$1.87 |
|
|
| 4 | L-07M105255D | Pulley |
$675.28 |
|
|
| 5 | L-WHT003103 | Sealing Ring |
$56.55 |
|
|
| 6 | L-07M109381 | O-Ring I 35 Uni 3654 |
$1.46 |
|
|
| 7 | L-07M105701 | Bushing |
$74.70 |
|
|
| 8 | L-07M105401 | Connecting Rod Assembly |
$674.11 |
|
|
| 9 | L-410109445 | Tab 15X5X5 Uni 92/C40 |
$1.23 |
|
|
| 10 | L-WHT003062 | O-Ring |
$5.78 |
|
|
| 11 | L-07M105209A | Sprocket |
$4,725.77 |
|
|
| 12 | L-410109264 | Bearing |
$24.77 |
|
|
| 13 | L-07M105707A | Bushing |
$93.35 |
|
|
| 14 | L-07M105707C | Bushing |
$90.08 |
|
|
| 15 | L-07M105531A | Shim Adjustment |
$35.40 |
|
|
| 16 | L-07M105707 | Bushing |
$429.93 |
|
|
| 17 | L-07M105707D | Connecting Rod Bearing |
$159.47 |
|
|
| 18 | L-07M105531A | Shim Adjustment |
$35.40 |
|
|
| 19 | L-07M105019D | Cranckshaft |
$9,136.11 |
|
|
| 20 | L-0R1470108 | Bushing Set |
$4,655.68 |
|
|
| 21 | L-WHT003252 | Bolt |
$2.69 |
|
|
| 22 | L-07M109382 | Seeger 7436/75 D.35 Ester |
$7.71 |
|
