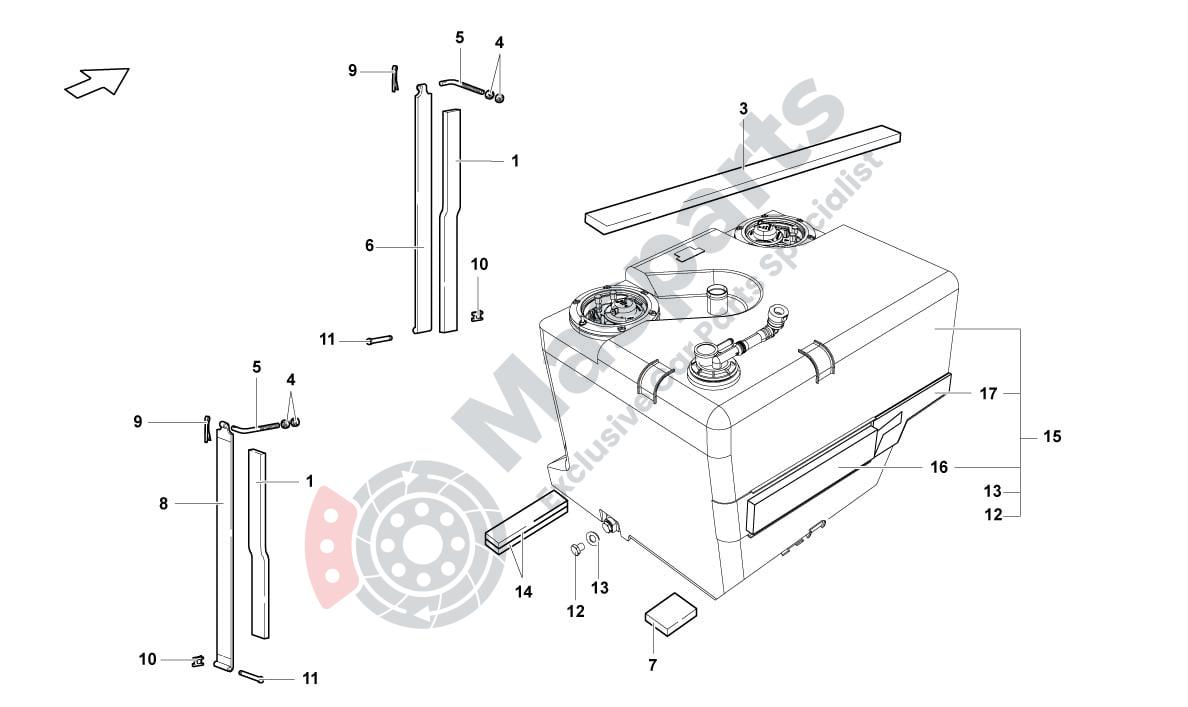

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-410201644 | Aerstop Fa Cn/20 5 Mm |
$15.10 |
|
|
| 3 | L-410201644 | Aerstop Fa Cn/20 5 Mm |
$15.10 |
|
|
| 4 | L-N01100845 | Hex.Nut |
$1.78 |
|
|
| 6 | L-410201639A | Strap |
$132.64 |
|
|
| 7 | L-410201643 | Tank Rear Bracket Seal |
$6.66 |
|
|
| 8 | L-410201639A | Strap |
$132.64 |
|
|
| 9 | L-N0125291 | Cotter Pin |
$0.73 |
|
|
| 10 | L-N0126453 | Washer |
$0.23 |
|
|
| 11 | L-410201750 | Pivot |
$22.62 |
|
|
| 12 | L-410201254 | Sealing Plug |
$35.08 |
|
|
| 13 | L-WHT003362 | Copper Washer D.12X22X1.5 |
$1.21 |
|
|
| 14 | L-410201644 | Aerstop Fa Cn/20 5 Mm |
$15.10 |
|
|
| 15 | L-410201075H | Fuel Tank |
$1,966.92 |
|
|
| 16 | L-410201783 | Side Protection |
$21.07 |
|
|
| 17 | L-417201537 | Sheet |
$18.83 |
|
