Be aware: Two same spot numbers are selected, for example left and right.

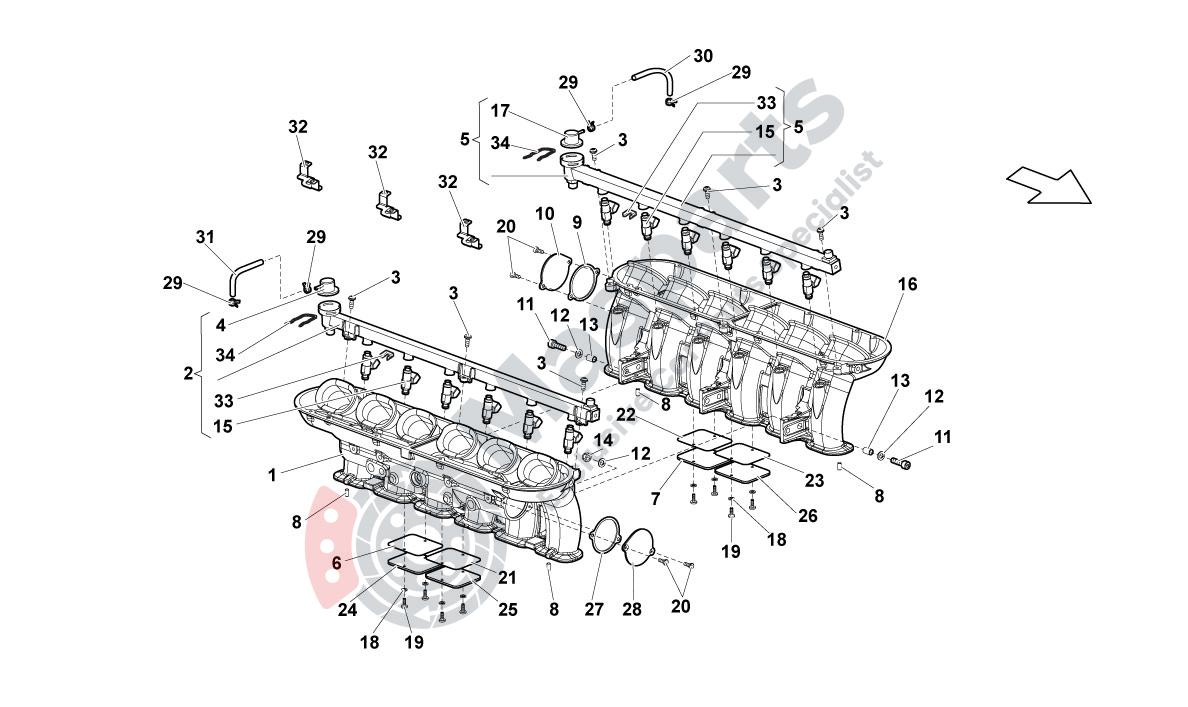

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-07M133151A | Intake Manifold |
$1,404.59 |
|
|
| 2 | L-07M133681F | Fuel Collector |
$1,058.04 |
|
|
| 3 | L-N10451402 | Screw |
$0.83 |
|
|
| 4 | L-07M133035A | Pressure Regulator |
$655.09 |
|
|
| 5 | L-07M133681E | Fuel Collector |
$1,058.04 |
|
|
| 6 | L-07M133075A | Gasket |
$35.92 |
|
|
| 7 | L-07M133100B | Cover |
$156.58 |
|
|
| 8 | L-07M133615 | Reference Pin 6H6X12C40 |
$7.54 |
|
|
| 9 | L-07M133026B | Dichtung |
$36.84 |
|
|
| 10 | L-07M133211A | Flange |
$529.60 |
|
|
| 11 | L-N0147267 | Screw M8X25 |
$0.78 |
|
|
| 13 | L-07M103143A | Sleeve |
$30.22 |
|
|
| 15 | L-07M906031A | Injector |
$194.57 |
|
|
| 16 | L-07M133151A | Intake Manifold |
$1,404.59 |
|
|
| 17 | L-07M133035A | Pressure Regulator |
$655.09 |
|
|
| 19 | L-N10627501 | Hexalobular Socket Screw |
$17.73 |
|
|
| 21 | L-07M133075A | Gasket |
$35.92 |
|
|
| 22 | L-07M133075A | Gasket |
$35.92 |
|
|
| 23 | L-07M133075A | Gasket |
$35.92 |
|
|
| 24 | L-07M133100B | Cover |
$156.58 |
|
|
| 25 | L-07M133100B | Cover |
$156.58 |
|
|
| 26 | L-07M133100B | Cover |
$156.58 |
|
|
| 27 | L-07M133026B | Dichtung |
$36.84 |
|
|
| 28 | L-07M133211A | Flange |
$529.60 |
|
|
| 29 | L-400127217 | Securing Clip |
$0.35 |
|
|
| 30 | L-07M133264C | Hose |
$4.95 |
|
|
| 31 | L-07M133264B | Hose |
$4.95 |
|
|
| 32 | L-07M103933 | Bracket |
$26.19 |
|
|
| 33 | L-07M133047 | Clip |
$128.95 |
|
|
| 34 | L-037133047A | Retaining Clip |
$184.21 |
|
