Be aware: Two same spot numbers are selected, for example left and right.

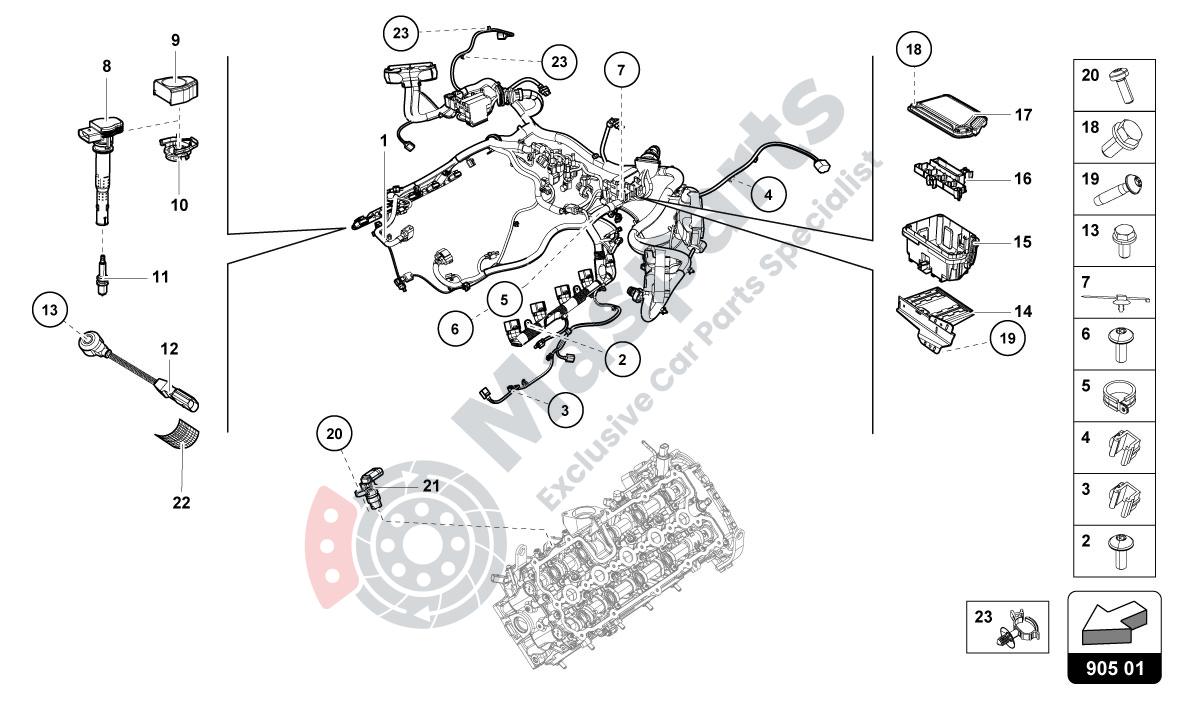

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-4S8971713 | Harness,Engine 5,2L V10 Fsi Mss |
€6.440,00 |
|
|
| 2 | L-N10464802 |
Pan Head Screw W. Tp4X12-S2-L
|
€0,34 |
|
|
| 3 | L-WHT001999 |
Cable Tie Base 200.00X4.00-45.00
|
€1,80 |
|
|
| 4 | L-5M0971838 |
Cable Tie Base L-4.6X193
|
€2,10 |
|
|
| 5 | L-N91123701 |
Retaining Clamp D1-40X15
|
€3,45 |
|
|
| 6 | L-N90833202 |
Duo Hexagon Flangem6X22
|
€0,60 |
|
|
| 7 | L-N10646101 | Cable Tie Base A5/4.6X143 |
€0,78 |
|
|
| 9 | L-07L905142 |
Protective Cap
|
€3,55 |
|
|
| 10 | L-07L905116B |
Protective Cap
|
€5,80 |
|
|
| 11 | L-06H905601C | Spark Plug |
€24,45 |
|
|
| 12 | L-06E905377C |
Knock Sensor
|
€106,00 |
|
|
| 12 | L-07L905377C |
Knock Sensor
|
€91,10 |
|
|
| 12 | L-07L905377D |
Knock Sensor
|
€92,70 |
|
|
| 12 | L-06E905377J |
Sensore D Detonaz.
|
€67,20 |
|
|
| 13 | L-N01024425 |
Hexagon Head Bolt
|
€2,00 |
|
|
| 14 | L-4S0937539B |
Bracket E-Box Li
|
€40,35 |
|
|
| 14 | L-4S0937540B |
Bracket E-Box Re
|
€40,35 |
|
|
| 15 | L-4S0937113A |
Electronics Box
|
€24,05 |
|
|
| 15 | L-4S0937114A |
Electronics Box
|
€24,05 |
|
|
| 16 | L-4S0937503 |
Relay Plate
|
€16,40 |
|
|
| 16 | L-4S0937507 |
Relay Plate
|
€12,05 |
|
|
| 17 | L-4S0937554A |
Cover E-Box Re
|
€12,40 |
|
|
| 17 | L-4S0937555A |
Cover E-Box Li
|
€12,40 |
|
|
| 18 | L-N90739704 |
Screw Tp5X22-Q
|
€0,60 |
|
|
| 19 | L-N10653201 |
Hexagon Flange M6X16
|
€1,45 |
|
|
| 20 | L-N10196103 |
Hexalobular Socket M6X18
|
€0,98 |
|
|
| 21 | L-04C907601 |
Cam Sensor
|
€79,20 |
|
|
| 22 | L-4T7971461 | Heat Protection |
€11,10 |
|
|
| 23 | L-N10584001 | Retaining Clip |
€2,80 |
|
