Be aware: Two same spot numbers are selected, for example left and right.

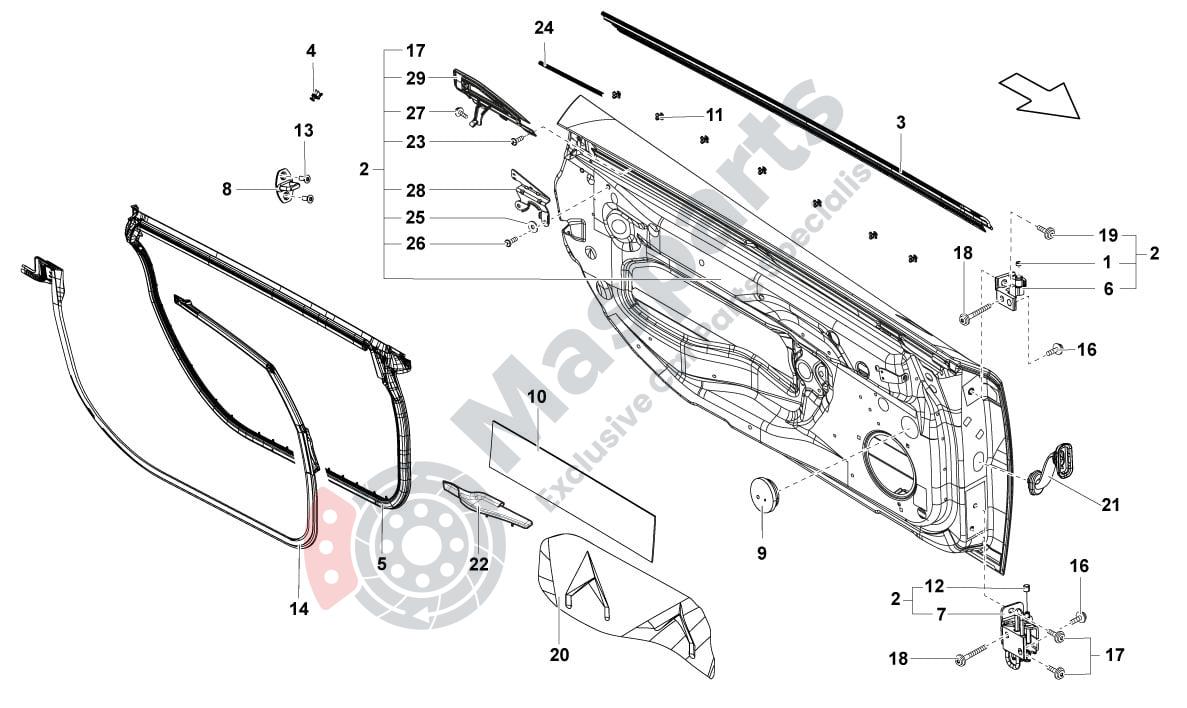

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-1H0837947 | Cap |
$0.34 |
|
|
| 2 | L-407831021 | Door,Fr |
$10,782.71 |
|
|
| 2 | L-407831022 | Door,Fr |
$10,782.71 |
|
|
| 3 | L-407837477 | Window Slot Seal |
$153.40 |
|
|
| 3 | L-407837478 | Window Slot Seal |
$153.40 |
|
|
| 4 | L-400837497 | Clip |
$4.70 |
|
|
| 4 | L-400837498 | Clip |
$4.70 |
|
|
| 5 | L-407837911A | Door Seal |
$369.50 |
|
|
| 5 | L-407837912A | Door Seal |
$369.50 |
|
|
| 6 | L-4E0831401A | Door Hinge |
$62.93 |
|
|
| 6 | L-4E0831402A | Door Hinge |
$62.93 |
|
|
| 7 | L-4E0831411C | Door Hinge |
$93.16 |
|
|
| 7 | L-4E0831412C | Door Hinge |
$93.16 |
|
|
| 8 | L-8E0837033 | Striker Lh |
$24.58 |
|
|
| 9 | L-8E0971841E | Grommet |
$10.53 |
|
|
| 10 | L-8L0837805 | Covering Lh |
$3.47 |
|
|
| 11 | L-8L3837199B | Clip |
$0.85 |
|
|
| 12 | L-8L3837947 | Cap Scharnier |
$0.34 |
|
|
| 13 | L-N0902941 | Combi Tapping Screw 4,2X19 |
$0.65 |
|
|
| 14 | L-407831707A | Door Seal |
$340.39 |
|
|
| 14 | L-407831708A | Door Seal |
$340.39 |
|
|
| 16 | L-WHT001237 | Hexalobular Socketm8X40 |
$1.23 |
|
|
| 17 | L-WHT001230 |
Hexalobular Socketm8X27
|
$3.42 |
|
|
| 18 | L-N91060501 | Hexalobular Socket Flange Bolt |
$45.63 |
|
|
| 19 | L-8H0831701 |
Screw
|
$1.68 |
|
|
| 20 | L-400863979 | Sound Absorber |
$1,735.54 |
|
|
| 20 | L-400863980 | Sound Absorber |
$1,735.54 |
|
|
| 21 | L-8P3959845A | Bellows |
$8.29 |
|
|
| 22 | L-400863051 | Cover |
$4.70 |
|
|
| 22 | L-400863052 | Cover |
$4.70 |
|
|
| 23 | L-407837173A | Clamp |
$50.79 |
|
|
| 24 | L-407868382 | Seal Part |
$32.25 |
|
|
| 25 | L-N90107607 | Washer |
$0.96 |
|
|
| 26 | L-N90900401 |
Hexalobular Socket
|
$1.90 |
|
|
| 27 | L-N90807405 | Hexalobular Socketm5X18 |
$1.07 |
|
|
| 28 | L-407831665 | Bracket |
$166.84 |
|
|
| 28 | L-407831666 | Bracket |
$166.84 |
|
|
| 29 | L-407837901 | Trim |
$468.03 |
|
|
| 29 | L-407837902 | Trim |
$468.03 |
|
