Be aware: Two same spot numbers are selected, for example left and right.

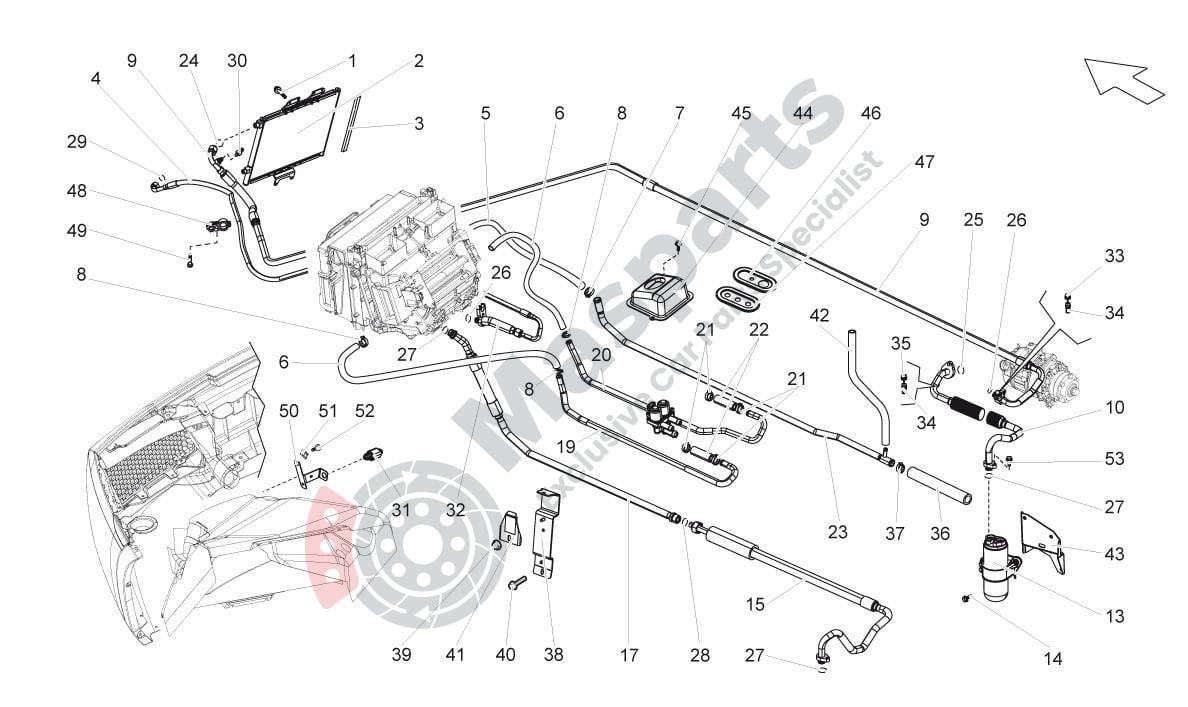

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N10082911 | Hexagon Head Bolt M6X16-S1-N |
$0.67 |
|
|
| 2 | L-400260401B | Condenser |
$565.61 |
|
|
| 3 | L-400820261 | Gasket |
$132.17 |
|
|
| 4 | L-400260709 | Refrigerant Line |
$911.90 |
|
|
| 5 | L-400819371 | Heating Hose |
$124.09 |
|
|
| 6 | L-400819370 | Heating Hose |
$14.49 |
|
|
| 7 | L-N10166201 | Hose Clamp Lug |
$1.10 |
|
|
| 8 | L-N10255601 |
Ear Hose Clamp 23.5X7X0.6
|
$1.79 |
|
|
| 9 | L-400260701B | Compressor/Condenser Pipe |
$686.81 |
|
|
| 10 | L-400260741 | Hose, Accum./Compress. |
$159.87 |
|
|
| 10 | L-400260741A | Refrigerant Line |
$659.11 |
|
|
| 13 | L-400820194 | Accumulator |
$171.41 |
|
|
| 14 | L-N0903411 | Screw |
$2.71 |
|
|
| 15 | L-400260740A | Hvac Group/Compress. Pipe |
$196.23 |
|
|
| 15 | L-400260740B | Refrigerant Pipe |
$193.35 |
|
|
| 17 | L-400260740 | Hvac Group/Compress. Pipe |
$304.74 |
|
|
| 19 | L-400819270 | Pipe, Cooling Syst. |
$51.77 |
|
|
| 20 | L-400819269 | Pipe, Cooling Syst. |
$50.27 |
|
|
| 21 | L-N0245107 | Hose Clip |
$4.44 |
|
|
| 22 | L-400819372 | Heating Hose |
$12.18 |
|
|
| 23 | L-407820665 | Pipe From Compressor To Eng. |
$83.80 |
|
|
| 24 | L-8A0260749AJ | Seal |
$4.67 |
|
|
| 25 | L-8E0260749C |
Seal Ring
|
$4.85 |
|
|
| 26 | L-4E0260749A |
Seal Ring
|
$5.71 |
|
|
| 27 | L-4E0260749C | Seal Ring |
$5.71 |
|
|
| 28 | L-8A0260749AH | Seal |
$0.38 |
|
|
| 29 | L-8A0260749AK |
O-Ring
|
$1.79 |
|
|
| 30 | L-3R0959126 | Pressure Sensor, Air Condition Ng |
$105.96 |
|
|
| 31 | L-8Z0820535 | Thermoprobe |
$34.11 |
|
|
| 33 | L-400820853A | Cap |
$8.31 |
|
|
| 34 | L-400820855 | Valve Insert |
$20.78 |
|
|
| 35 | L-400820853 | Cap |
$8.31 |
|
|
| 36 | L-400819268A | Heater Circuit |
$35.67 |
|
|
| 37 | L-N0245203 | Fascetta |
$6.18 |
|
|
| 38 | L-400121079A | Bracket |
$19.45 |
|
|
| 39 | L-N90367502 | Hexagonal Nut M6 |
$0.65 |
|
|
| 40 | L-N90533002 | Hexag.Screw M6X20 |
$1.50 |
|
|
| 41 | L-400121068 | Bracket Ass. |
$18.64 |
|
|
| 43 | L-400260759F | Bracket |
$392.46 |
|
|
| 44 | L-400820955A | Cover |
$66.72 |
|
|
| 45 | L-WHT001190 | Screw |
$1.90 |
|
|
| 46 | L-400820099A | Gasket |
$31.11 |
|
|
| 47 | L-400819028A | Gasket |
$30.13 |
|
|
| 48 | L-8E0260759AP | Support |
$4.21 |
|
|
| 49 | L-N10470701 | Screw M6X50 |
$0.62 |
|
|
| 49 | L-N10470703 |
Hexalobular Socket
|
$2.02 |
|
|
| 50 | L-400820536A | Bracket |
$10.45 |
|
|
| 51 | L-N0454281 | Speed Nut |
$0.84 |
|
|
| 52 | L-N10405502 | Pan Head Tapping |
$0.53 |
|
|
| 53 | L-N0903782 | Cyl.Bolt W. Washer M8X25-S4-N |
$1.33 |
|
