Be aware: Two same spot numbers are selected, for example left and right.

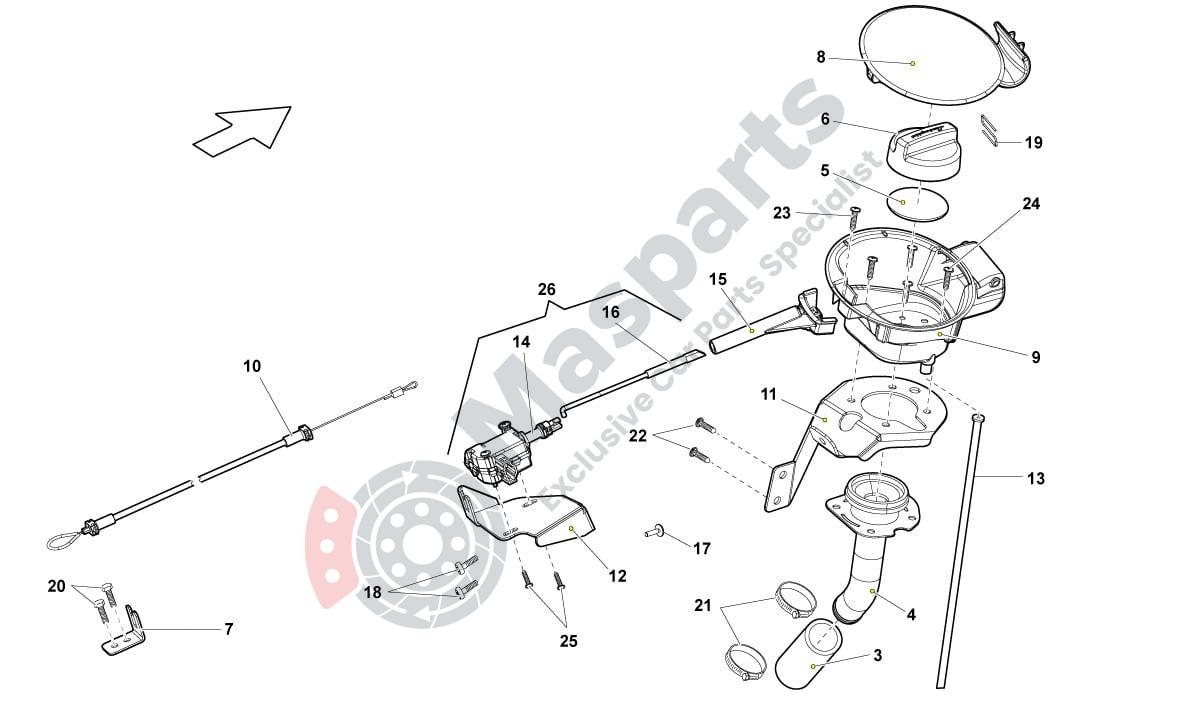

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | L-400201609 | Filling Hose |
$20.12 |
|
|
| 4 | L-408201137A | Filling Pipe |
$1,656.84 |
|
|
| 5 | L-400201557 | Sealing Washer |
$496.48 |
|
|
| 6 | L-400201587A | Tappo Benzina |
$806.06 |
|
|
| 8 | L-400809909A | Fuel Filler Door |
$190.91 |
|
|
| 9 | L-400809933C | Insert,Fuel Filler |
$115.81 |
|
|
| 10 | L-400809977 | Bowden Cable |
$32.79 |
|
|
| 10 | L-400809977A | Bowden Cable |
$32.85 |
|
|
| 12 | L-400959849C | Bracket |
$22.24 |
|
|
| 13 | L-8Z0809937 | Water Outlet Pipe |
$1.89 |
|
|
| 14 | L-8Z0810773A | Motor |
$165.68 |
|
|
| 15 | L-8Z0810901 | Actuator Support |
$3.10 |
|
|
| 17 | L-N90732103 |
Screw Tp4X16-Q
|
$0.55 |
|
|
| 18 | L-N10082911 | Hexagon Head Bolt M6X16-S1-N |
$0.67 |
|
|
| 19 | L-1J0809931 | Spring |
$4.30 |
|
|
| 21 | L-N91115401 | Hose Clamp |
$4.70 |
|
|
| 22 | L-N10082911 | Hexagon Head Bolt M6X16-S1-N |
$0.67 |
|
|
| 23 | L-N90732103 |
Screw Tp4X16-Q
|
$0.55 |
|
|
| 24 | L-N90944603 |
Hexalobular Socketm5X12
|
$1.05 |
|
|
| 26 | L-408959776 | Locking Motor |
$57.22 |
|
