Be aware: Two same spot numbers are selected, for example left and right.

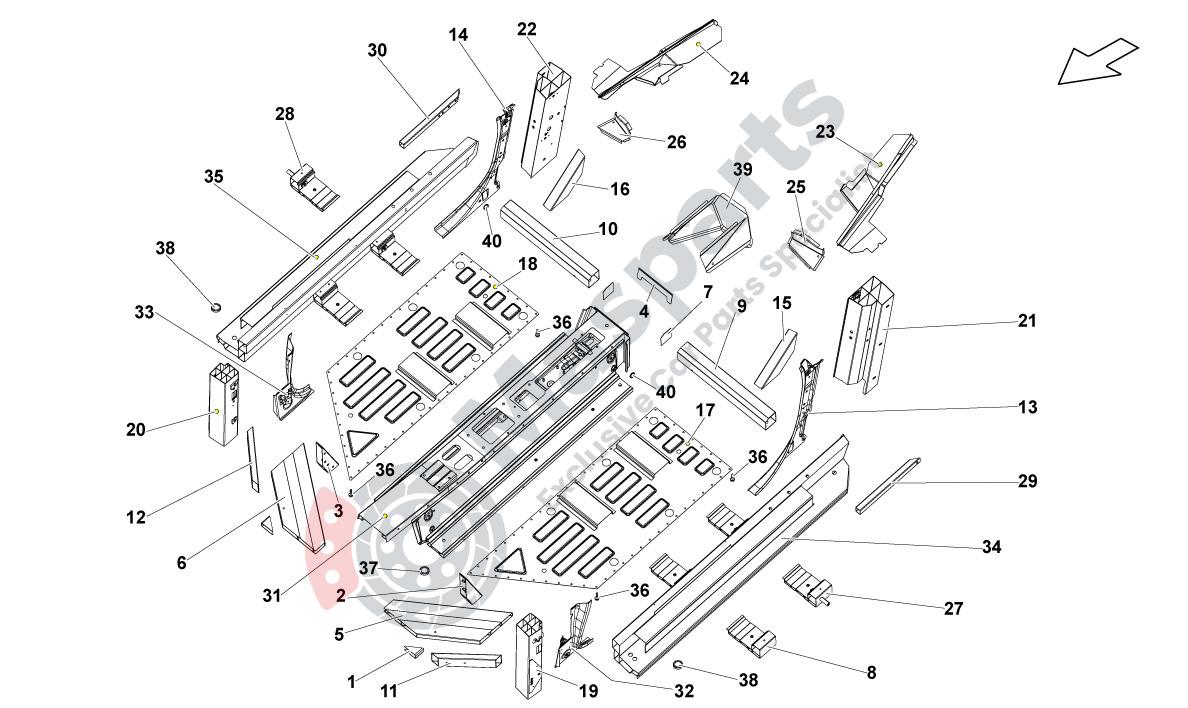

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-400802451 | Support Sx |
$345.52 |
|
|
| 2 | L-400802725 | Support Part |
$996.87 |
|
|
| 3 | L-400802726 | Support Part |
$996.87 |
|
|
| 5 | L-400803033A | Side Member |
$388.71 |
|
|
| 6 | L-400803034A | Side Member |
$4,622.51 |
|
|
| 7 | L-400803177 | End Plate Lh |
$74.12 |
|
|
| 8 | L-400803243 | Bracket |
$267.31 |
|
|
| 9 | L-400803291A | Cross Member |
$452.91 |
|
|
| 10 | L-400803292A | Cross Member |
$452.91 |
|
|
| 11 | L-400805861 | Side Member |
$1,570.02 |
|
|
| 12 | L-400805862 | Side Member |
$1,570.02 |
|
|
| 13 | L-400809223 | Pillar B, Inner |
$670.03 |
|
|
| 14 | L-400809224 | Pillar B, Inner |
$1,505.82 |
|
|
| 15 | L-400809971 | Support Part |
$225.29 |
|
|
| 16 | L-400809972 | Support Pillar B |
$225.29 |
|
|
| 17 | L-408803061 | Floor Assembly,Fr |
$857.97 |
|
|
| 18 | L-408803062 | Floor Assembly,Fr |
$857.97 |
|
|
| 19 | L-408809205 | Pillar A,Lwr |
$2,883.23 |
|
|
| 20 | L-408809206 | Pillar A,Lwr |
$2,883.23 |
|
|
| 21 | L-408809221A | Pillar B Outer |
$717.89 |
|
|
| 22 | L-408809222A | Pillar B Outer |
$710.89 |
|
|
| 23 | L-408810205 | Support Lh |
$473.92 |
|
|
| 24 | L-408810206 | Support Rh |
$473.92 |
|
|
| 25 | L-408813563 | Reinforced Corner |
$315.17 |
|
|
| 26 | L-408813564 | Reinforced Corner |
$315.17 |
|
|
| 27 | L-400803151F | Bracket |
$1,289.87 |
|
|
| 28 | L-400803152F | Bracket |
$1,289.87 |
|
|
| 29 | L-400809321A | Bracket |
$236.38 |
|
|
| 30 | L-400809322A | Bracket |
$236.38 |
|
|
| 31 | L-408802061F | Floor,Center |
$3,741.20 |
|
|
| 32 | L-408802125A | Pillar A,Lower |
$465.75 |
|
|
| 33 | L-408802126A | Pillar A,Lower |
$436.57 |
|
|
| 34 | L-408802255G | Sill, Inner |
$4,336.52 |
|
|
| 35 | L-408802256G | Sill, Inner |
$4,336.52 |
|
|
| 36 | L-N90919302 | Drilling Screw |
$0.67 |
|
|
| 38 | L-4E0804297 | Plug |
$2.28 |
|
|
| 39 | L-400802853A | End Plate |
$398.05 |
|
|
| 40 | L-N10249701 | Cover Bowden Cable Gt3 |
$0.57 |
|
