Be aware: Two same spot numbers are selected, for example left and right.

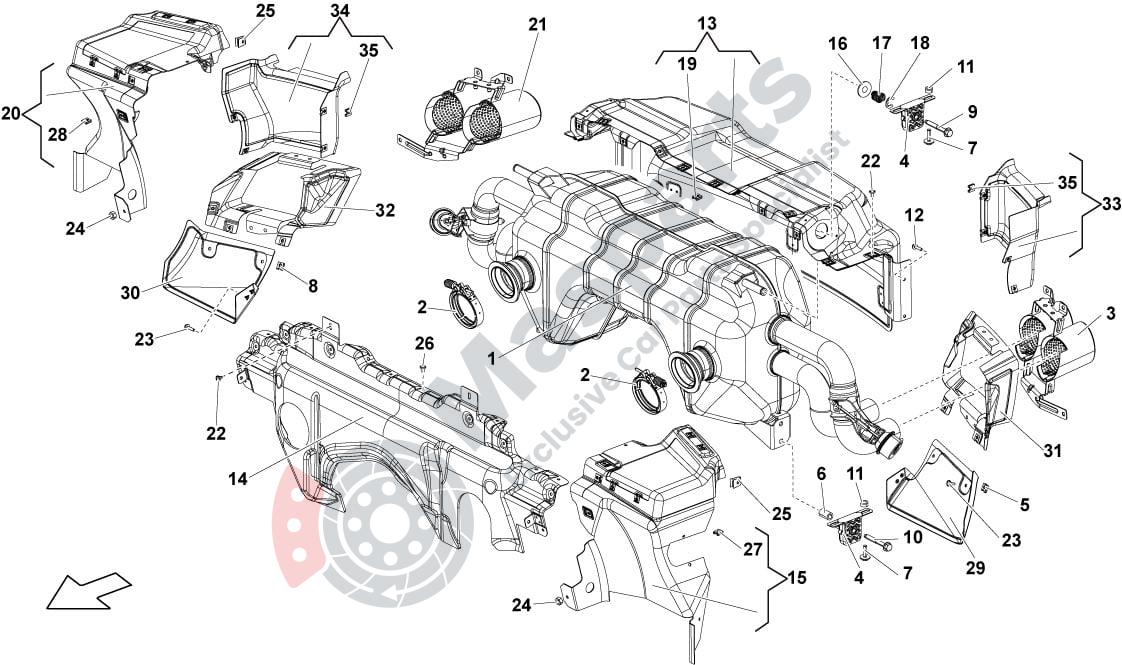

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-420251052 | Muffler Dl800 |
$7,484.01 |
|
|
| 2 | L-420251143 | Pipe Clamp |
$74.78 |
|
|
| 3 | L-400253697E | Trim. Tail Pipe |
$585.27 |
|
|
| 4 | L-420251303 | Suspension |
$50.90 |
|
|
| 5 | L-N10433701 | Clip-On Nut St4.8X18.6X16 |
$1.23 |
|
|
| 6 | L-420251198A | Sleeve |
$6.00 |
|
|
| 7 | L-N10106904 | Hex. Bolt With Was |
$1.23 |
|
|
| 8 | L-N10433701 | Clip-On Nut St4.8X18.6X16 |
$1.23 |
|
|
| 9 | L-N10609902 | Hexagon Flange |
$5.77 |
|
|
| 10 | L-N10680201 | Duo Hexagon Flange Bolt |
$3.08 |
|
|
| 11 | L-420251465 | Spacer |
$6.00 |
|
|
| 12 | L-N90775001 |
Flange Tapping St4.8X16
|
$1.96 |
|
|
| 13 | L-403825709 | Heat Shield |
$1,502.41 |
|
|
| 14 | L-420825613B | Heat Shield |
$735.51 |
|
|
| 15 | L-400825645 | Heat Shield,Wheel |
$1,653.77 |
|
|
| 16 | L-420825371 | Shield |
$136.79 |
|
|
| 17 | L-420825430B | Spring |
$3.42 |
|
|
| 18 | L-N0124501 |
Lock Washer 15
|
$0.77 |
|
|
| 19 | L-N10433701 | Clip-On Nut St4.8X18.6X16 |
$1.23 |
|
|
| 20 | L-400825646 | Heat Shield,Wheel |
$783.72 |
|
|
| 21 | L-400253698E | Trim. Tail Pipe |
$585.27 |
|
|
| 22 | L-4E0831701 | Screw |
$0.82 |
|
|
| 23 | L-N90775001 |
Flange Tapping St4.8X16
|
$1.96 |
|
|
| 24 | L-N90488004 |
Hexagon Nut W. M6
|
$0.36 |
|
|
| 25 | L-N10491001 | U-Clamp A12.5X8.5X1.5 |
$0.53 |
|
|
| 26 | L-N90775001 |
Flange Tapping St4.8X16
|
$1.96 |
|
|
| 27 | L-N90156103 | Speed Nut |
$0.86 |
|
|
| 28 | L-N90156103 | Speed Nut |
$0.86 |
|
|
| 29 | L-400825729 | Heat Shield |
$421.57 |
|
|
| 30 | L-400825730 | Heat Shield |
$43.67 |
|
|
| 33 | L-400825715 | Heat Shield,Bumper |
$275.25 |
|
|
| 34 | L-400825716 | Heat Shield,Bumper |
$275.25 |
|
|
| 35 | L-N10433701 | Clip-On Nut St4.8X18.6X16 |
$1.23 |
|
