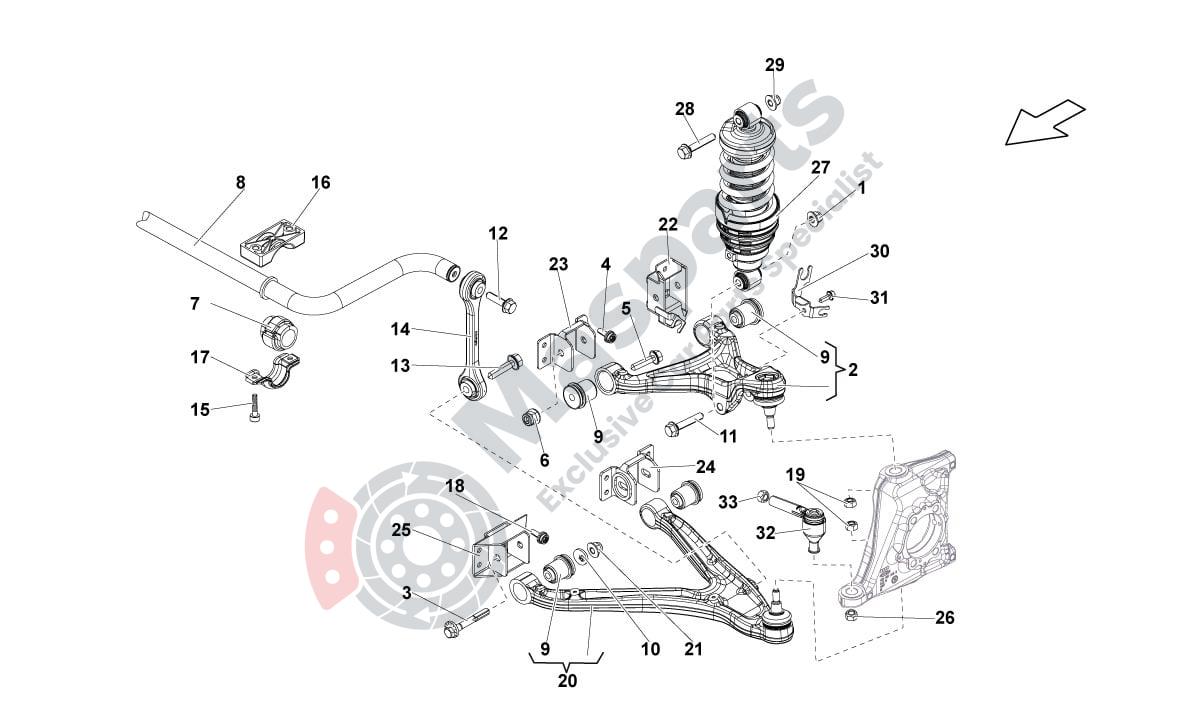

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.19 |
|
|
| 2 | L-420407505E | Control Arm,Front |
$430.58 |
|
|
| 2 | L-420407506E | Control Arm,Front |
$430.58 |
|
|
| 2 | L-0R1400557 | M14 Front Suspension Arms Kit |
$1,868.09 |
|
|
| 3 | L-WHT002262 | Eccentric Bolt |
$12.50 |
|
|
| 4 | L-N10689301 |
12-Point Socket M8X25
|
$3.03 |
|
|
| 5 | L-N10428002 | Hexagon Flange Am12X1.5X80 |
$6.17 |
|
|
| 6 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.19 |
|
|
| 7 | L-4D0411327J |
Rubber Mount D 31
|
$146.33 |
|
|
| 8 | L-420411309 | Stabilizer |
$318.45 |
|
|
| 10 | L-WHT001676 | Eccentric Washer |
$1.46 |
|
|
| 11 | L-N10629501 | Hexagon Flange |
$8.47 |
|
|
| 12 | L-N10699901 | Hexagon Flange M10X45 |
$3.53 |
|
|
| 13 | L-N10314506 |
Hexagon Flange Am10X50
|
$3.87 |
|
|
| 14 | L-420407465 | Connecting Link |
$196.23 |
|
|
| 15 | L-N10682501 |
12-Point Socket M8X50
|
$3.36 |
|
|
| 16 | L-420411031A | Stabilizer |
$21.81 |
|
|
| 17 | L-4D0411336G | Clip Stabi |
$4.88 |
|
|
| 18 | L-N10689301 |
12-Point Socket M8X25
|
$3.03 |
|
|
| 19 | L-N90848406 | Hexagon Flange Nutm12X1.5 |
$6.17 |
|
|
| 19 | L-WHT004898 |
Hexagon Flange Nut M14X1.5
|
$5.94 |
|
|
| 20 | L-420407151L | Track Control Arm |
$479.92 |
|
|
| 20 | L-420407152L | Track Control Arm |
$479.92 |
|
|
| 21 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.19 |
|
|
| 22 | L-420407457B | Mounting |
$48.55 |
|
|
| 22 | L-420407458B | Mounting |
$48.55 |
|
|
| 23 | L-420407457F | Mounting |
$461.98 |
|
|
| 23 | L-420407458F | Mounting |
$461.98 |
|
|
| 24 | L-420407457H | Mounting |
$48.55 |
|
|
| 24 | L-420407458H | Mounting |
$48.55 |
|
|
| 25 | L-400407457 | Mounting |
$138.48 |
|
|
| 26 | L-N90848406 | Hexagon Flange Nutm12X1.5 |
$6.17 |
|
|
| 27 | L-400412019BT | Damper Strut |
$9,062.35 |
|
|
| 27 | L-400412019CB | Damper Strut |
$10,061.42 |
|
|
| 27 | L-400412019CD | Damper Strut |
$7,634.37 |
|
|
| 27 | L-400412019BN | Damper Strut |
$2,866.04 |
|
|
| 27 | L-400412019BP | Damper Strut |
$1,175.68 |
|
|
| 27 | L-400412019BS | Damper Strut |
$1,175.68 |
|
|
| 27 | L-400412019CA | Damper Strut |
$1,175.68 |
|
|
| 27 | L-400412019CC | Damper Strut |
$1,175.68 |
|
|
| 28 | L-N10428002 | Hexagon Flange Am12X1.5X80 |
$6.17 |
|
|
| 29 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.19 |
|
|
| 30 | L-400971845A | Bracket |
$30.84 |
|
|
| 30 | L-400971846A | Bracket |
$30.84 |
|
|
| 31 | L-N10714801 |
Hexalobular Socketm6X18
|
$1.29 |
|
|
| 32 | L-420419811A | Ball Joint |
$155.86 |
|
|
| 33 | L-N10218708 | Hex.Nut |
$3.31 |
|
