Be aware: Two same spot numbers are selected, for example left and right.

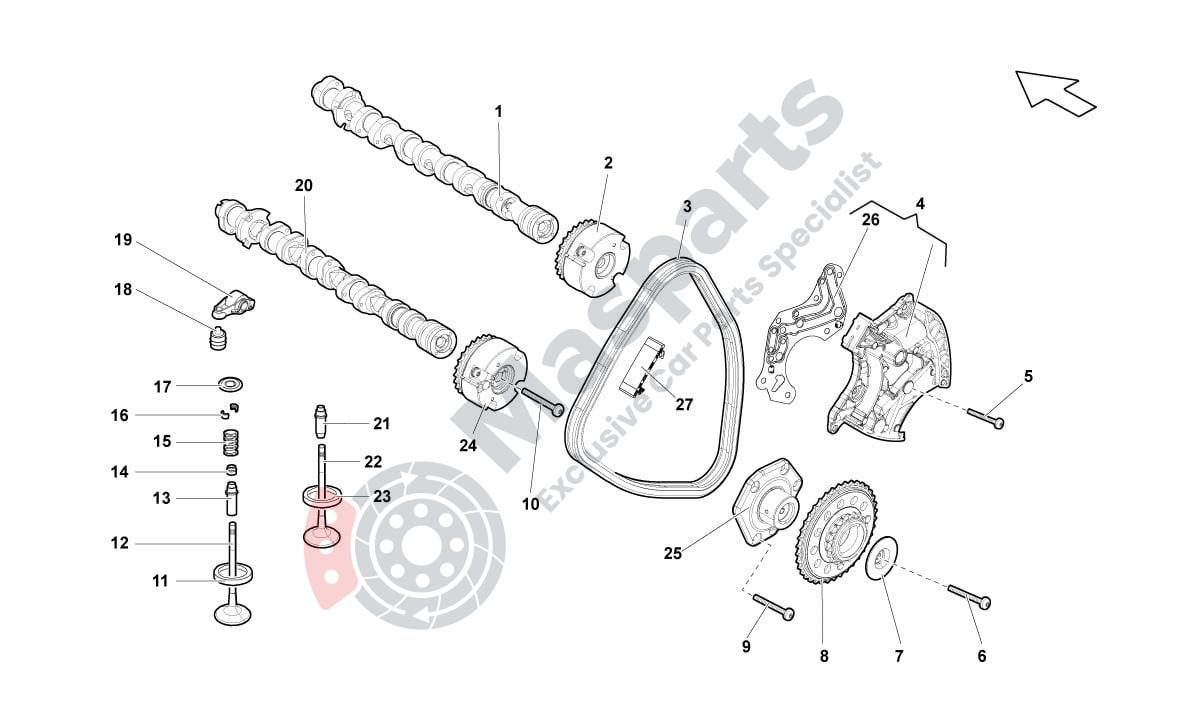

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-07L109103AG | Camshaft |
$999.40 |
|
|
| 2 | L-07L109083D | Camshaft |
$568.04 |
|
|
| 3 | L-06E109465AN | Roller Chain |
$183.75 |
|
|
| 4 | L-079109217AA | Tensioner - Chain |
$183.75 |
|
|
| 5 | L-N10124304 |
Hexalobular Socketm6X20
|
$1.51 |
|
|
| 6 | L-N90888502 |
12-Point Socket
|
$2.07 |
|
|
| 7 | L-079109180A | Axial Bearing |
$18.37 |
|
|
| 8 | L-079109077G | Sprocket |
$199.43 |
|
|
| 9 | L-N90954903 |
Screw
|
$1.29 |
|
|
| 10 | L-N91042802 |
12-Point Socket Flange Bolt
|
$6.05 |
|
|
| 11 | L-06D103431M | Valve Seat (Intake) |
$16.13 |
|
|
| 12 | L-06D109611H | Exhaust Valve |
$850.38 |
|
|
| 15 | L-06E109623 |
Spring Valve
|
$39.89 |
|
|
| 17 | L-06E109641A | Valve Spring Plate |
$15.46 |
|
|
| 18 | L-022109423C | Support Element |
$18.37 |
|
|
| 19 | L-079109409B | Roller Rocker Arm |
$74.39 |
|
|
| 20 | L-07L109104N | Camshaft |
$999.40 |
|
|
| 22 | L-079109601B | Intake Valve |
$45.26 |
|
|
| 23 | L-079103441D | Valve Seat (Intake) |
$16.13 |
|
|
| 24 | L-07L109084E |
Camshaft
|
$445.92 |
|
|
| 25 | L-079109224F |
Journal
|
$86.83 |
|
|
| 26 | L-079109139J |
Gasket
|
$16.53 |
|
