Be aware: Two same spot numbers are selected, for example left and right.

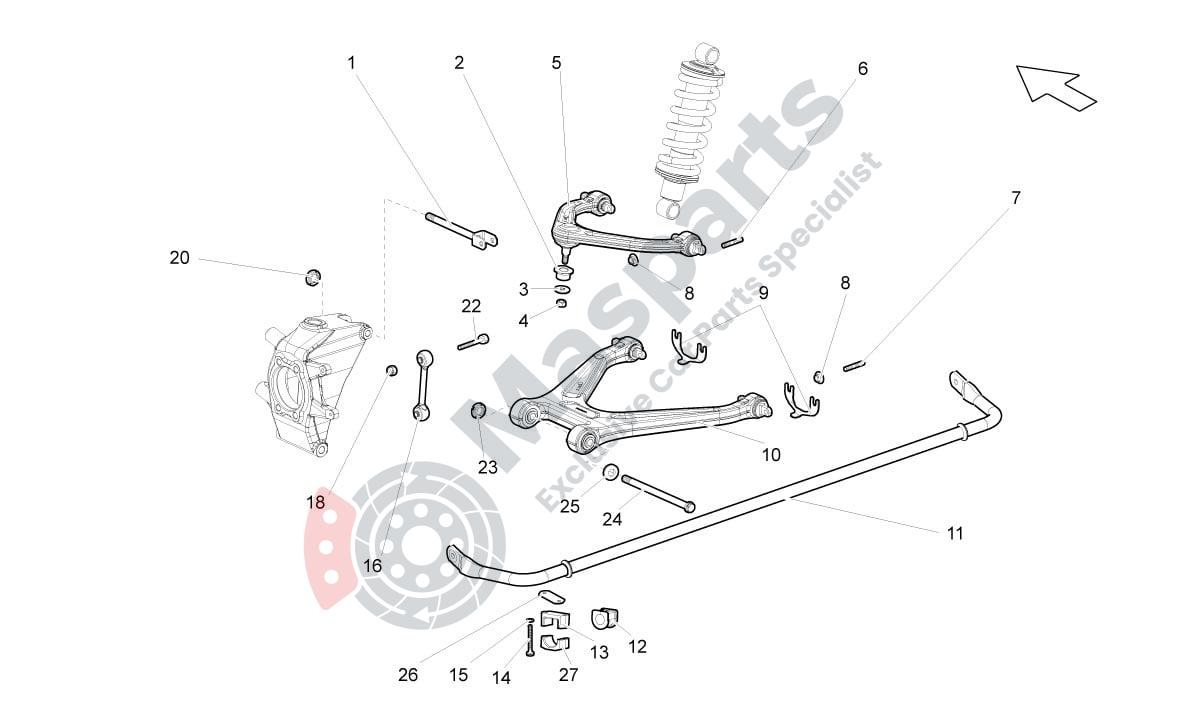

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-400505183D | Fastening Part |
$53.73 |
|
|
| 2 | L-400407171B | Threaded Bush |
$343.61 |
|
|
| 3 | L-400505179B | Spacer |
$40.42 |
|
|
| 4 | L-N90323706 | Hexagon Clamp Nut |
$3.54 |
|
|
| 4 | L-WHT000874 | Nut |
$8.08 |
|
|
| 5 | L-400505323B | Track Control Arm |
$1,779.80 |
|
|
| 6 | L-N91062101 | Stud |
$18.46 |
|
|
| 7 | L-N91062001 | Stud |
$15.72 |
|
|
| 8 | L-N90226404 | Hex.Nut W/ Flange |
$2.02 |
|
|
| 9 | L-400407203 | Intermediate Shim |
$76.81 |
|
|
| 9 | L-400407379A | Camber Adjustment |
$26.73 |
|
|
| 9 | L-400407379B | Camber Adjustment |
$10.44 |
|
|
| 9 | L-400407379C | Camber Adjustment |
$10.44 |
|
|
| 9 | L-400407379D | Camber Adjustment |
$10.44 |
|
|
| 9 | L-400407379E | Camber Adjustment |
$114.54 |
|
|
| 9 | L-400407379F | Camber Adjustment 0.3Mm |
$226.83 |
|
|
| 10 | L-400505311B | Track Control Arm |
$4,227.72 |
|
|
| 11 | L-400511409C | Stabilizer |
$237.49 |
|
|
| 12 | L-8Z0411314 | Bearing |
$23.13 |
|
|
| 13 | L-400511036 | Stabilizer |
$157.77 |
|
|
| 14 | L-WHT000923 | Vite Supp.Barra Stabi. M6X52 |
$6.63 |
|
|
| 15 | L-WHT001197A |
Washer
|
$0.24 |
|
|
| 16 | L-400505465C | Connecting Link |
$79.16 |
|
|
| 18 | L-N10286102 | Hexag.Nut With Flange M10 |
$1.18 |
|
|
| 20 | L-N90323704 | Nut M12X1,50-Z1 |
$2.36 |
|
|
| 22 | L-N10314503 | Flanged Screw M10X50 |
$1.97 |
|
|
| 23 | L-N10268602 | Prev.Torque Type |
$2.25 |
|
|
| 24 | L-400505119 | Fixing Screw |
$122.40 |
|
|
| 25 | L-400407739 | Spacer Bush 1 Mm |
$3.03 |
|
|
| 25 | L-400407740 | Spacer Bush 1,5 Mm |
$3.42 |
|
|
| 25 | L-400407742 | Spacer Bush 2 Mm |
$3.93 |
|
|
| 25 | L-400407749 | Spacer Bush 0,5 Mm |
$2.69 |
|
|
| 26 | L-400411175A | Spacer Plate |
$114.54 |
|
|
| 27 | L-400511035 | Stabilizer |
$44.58 |
|
