Be aware: Two same spot numbers are selected, for example left and right.

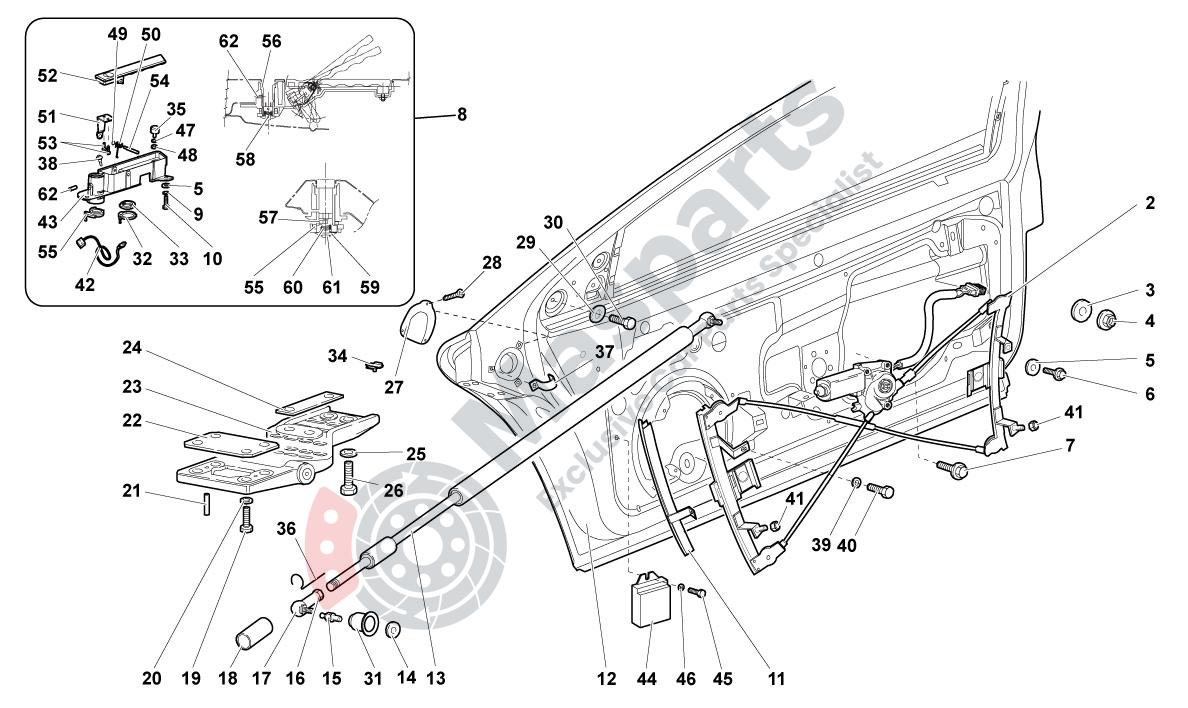

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | L-418837401 | Power Window Assembly |
$1,416.39 |
|
|
| 2 | L-418837402 | Power Window Assembly |
$1,618.73 |
|
|
| 3 | L-WHT002961 | Washer |
$0.33 |
|
|
| 4 | L-N01508213 |
Hexagon Flange Nutm6
|
$0.17 |
|
|
| 5 | L-WHT003040 | Washer |
$6.50 |
|
|
| 6 | L-N01020717 | Hexagon Head Bolt |
$1.06 |
|
|
| 7 | L-N91049601 | Screw |
$0.86 |
|
|
| 9 | L-N91109201 |
Washer
|
$1.50 |
|
|
| 11 | L-418837403 | Powerwindow Guides Ass. |
$267.10 |
|
|
| 11 | L-418837404 | Powerwindow Guides Ass. |
$267.10 |
|
|
| 12 | L-418831051 | Door Assembly |
$9,607.60 |
|
|
| 12 | L-418831052 | Door Assembly |
$9,607.60 |
|
|
| 13 | L-410837987 | Shock Absorber |
$105.69 |
|
|
| 14 | L-WHT000771 | Spring Lock Washer |
$1.02 |
|
|
| 15 | L-410837646A | Gas Spring Pin |
$7.94 |
|
|
| 16 | L-N01100845 | Hex.Nut |
$1.78 |
|
|
| 17 | L-410837262 | Gas Spring Head |
$7.77 |
|
|
| 18 | L-410837801A | Protective Cover |
$43.81 |
|
|
| 22 | L-410837983 | Door Hinge Shim 0.8 Mm |
$15.72 |
|
|
| 22 | L-410837983A | Door Hinge Shim 1 Mm |
$17.38 |
|
|
| 22 | L-410837983B | Door Hinge Shim 1.2 Mm |
$14.22 |
|
|
| 22 | L-410837983C | Door Hinge Shim 1.5 Mm |
$17.04 |
|
|
| 23 | L-410831401 | Door Hinge |
$998.18 |
|
|
| 23 | L-410831402 | Door Hinge |
$998.18 |
|
|
| 24 | L-410837944A | Door Hinge Shim Mm.1 |
$16.64 |
|
|
| 24 | L-410837984 | Intermediate Layer |
$19.74 |
|
|
| 25 | L-N90179103 | Washer |
$1.32 |
|
|
| 26 | L-N01024230 | Hexagon Head Bolt |
$1.32 |
|
|
| 27 | L-410867251 | Cover |
$115.71 |
|
|
| 29 | L-WHT002961 | Washer |
$0.33 |
|
|
| 30 | L-N90319404 | Hexagon Flange |
$1.90 |
|
|
| 31 | L-410837749 | Rubber Plug |
$20.78 |
|
|
| 32 | L-410837061 | Ring Nut |
$113.52 |
|
|
| 33 | L-410837063 | Ring Nut |
$160.61 |
|
|
| 34 | L-410972672 | Support |
$0.83 |
|
|
| 35 | L-410837549 | Rubber Support |
$211.84 |
|
|
| 36 | L-410837171 | Clip |
$0.20 |
|
|
| 37 | L-410868630A | Support,Bracket |
$50.25 |
|
|
| 38 | L-410837549 | Rubber Support |
$211.84 |
|
|
| 39 | L-WHT003040 | Washer |
$6.50 |
|
|
| 40 | L-N10718801 |
Hexagon Flange M6X16
|
$1.55 |
|
|
| 41 | L-N01508213 |
Hexagon Flange Nutm6
|
$0.17 |
|
|
| 43 | L-410837163 | Handle Body |
$211.84 |
|
|
| 43 | L-410837164 | Handle Body |
$211.84 |
|
|
| 46 | L-N01152221 |
Washer 4.3X9X0.8
|
$0.21 |
|
|
| 47 | L-N10612001 | Washer 5.3X15X1 |
$0.45 |
|
|
| 48 | L-WHT003112 | Hexagon Flange Nut8200513 |
$0.60 |
|
|
| 49 | L-410863191 | Seeger |
$0.71 |
|
|
| 50 | L-410837723 | Door Handle Spring |
$52.73 |
|
|
| 50 | L-410837724 | Door Handle Spring |
$52.73 |
|
|
| 51 | L-410837226A | Operating Handle |
$588.31 |
|
|
| 52 | L-410837207 | External Handle |
$986.66 |
|
|
| 52 | L-410837207AVS | External Handle |
$992.42 |
|
|
| 52 | L-410837208 | External Handle |
$986.66 |
|
|
| 52 | L-410837208AVS | External Handle |
$992.42 |
|
|
| 54 | L-410837041 | Stud |
$15.95 |
|
