Be aware: Two same spot numbers are selected, for example left and right.

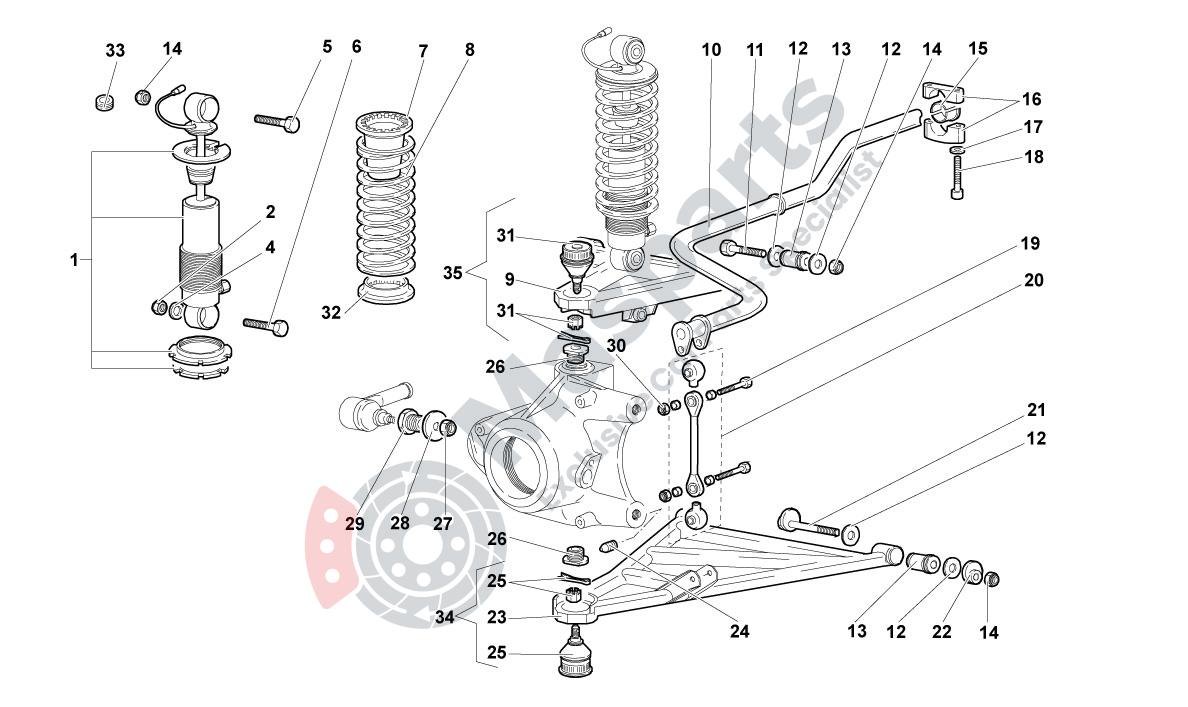

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-410412031B | Damper |
$4,085.15 |
|
|
| 2 | L-N90323704 | Nut M12X1,50-Z1 |
$2.43 |
|
|
| 5 | L-WHT002637 | Hexagon Head Bolt |
$52.40 |
|
|
| 6 | L-N10592402 | Hexagon Flange Bolt |
$8.75 |
|
|
| 7 | L-410512108 | Schock Absorber Bukhead |
$38.84 |
|
|
| 10 | L-410411309 | Stabilisator |
$1,176.79 |
|
|
| 11 | L-WHT002637 | Hexagon Head Bolt |
$52.40 |
|
|
| 12 | L-410407295 | Spacer Ring |
$3.94 |
|
|
| 12 | L-410407295A | Spacer Ring |
$5.91 |
|
|
| 12 | L-410407295B | Spacer Ring |
$5.80 |
|
|
| 12 | L-410407295C | Spacer Ring |
$6.38 |
|
|
| 12 | L-410407295D | Spacer Ring |
$25.62 |
|
|
| 14 | L-WHT003355 | Clamping Nut |
$19.01 |
|
|
| 15 | L-400511324C | Bush |
$152.46 |
|
|
| 16 | L-400411031D | Stabilizer |
$172.75 |
|
|
| 17 | L-WHT001197A |
Washer
|
$0.24 |
|
|
| 18 | L-WHT000923 | Vite Supp.Barra Stabi. M6X52 |
$6.84 |
|
|
| 19 | L-N01034518 | Hexagon Head Bolt |
$22.43 |
|
|
| 20 | L-410411317 | Connecting Link |
$382.60 |
|
|
| 21 | L-410407127A | Eccentric |
$2,017.36 |
|
|
| 22 | L-410407135 | Offset Screw And Slot |
$36.75 |
|
|
| 26 | L-410407171 | Arm Bracket Sleeve |
$87.42 |
|
|
| 27 | L-WHT000915 | Clamping Nut |
$16.93 |
|
|
| 28 | L-WHT000919 | Washer |
$13.04 |
|
|
| 29 | L-410419121 | Steering Linkage Bushing |
$88.81 |
|
|
| 32 | L-410512385 | Shock Absorber Bulkhead |
$46.09 |
|
|
| 34 | L-410407151 | Arm Assembly |
$4,214.42 |
|
|
| 34 | L-410407152 | Arm Assembly |
$4,214.42 |
|
|
| 35 | L-410407505 | Arm Assembly |
$2,243.44 |
|
|
| 35 | L-410407505A | Wheel Attachment |
$2,486.91 |
|
|
| 35 | L-410407506 | Arm Assembly |
$2,243.44 |
|
|
| 35 | L-410407506A | Wheel Attachment |
$2,486.91 |
|
