Be aware: Two same spot numbers are selected, for example left and right.

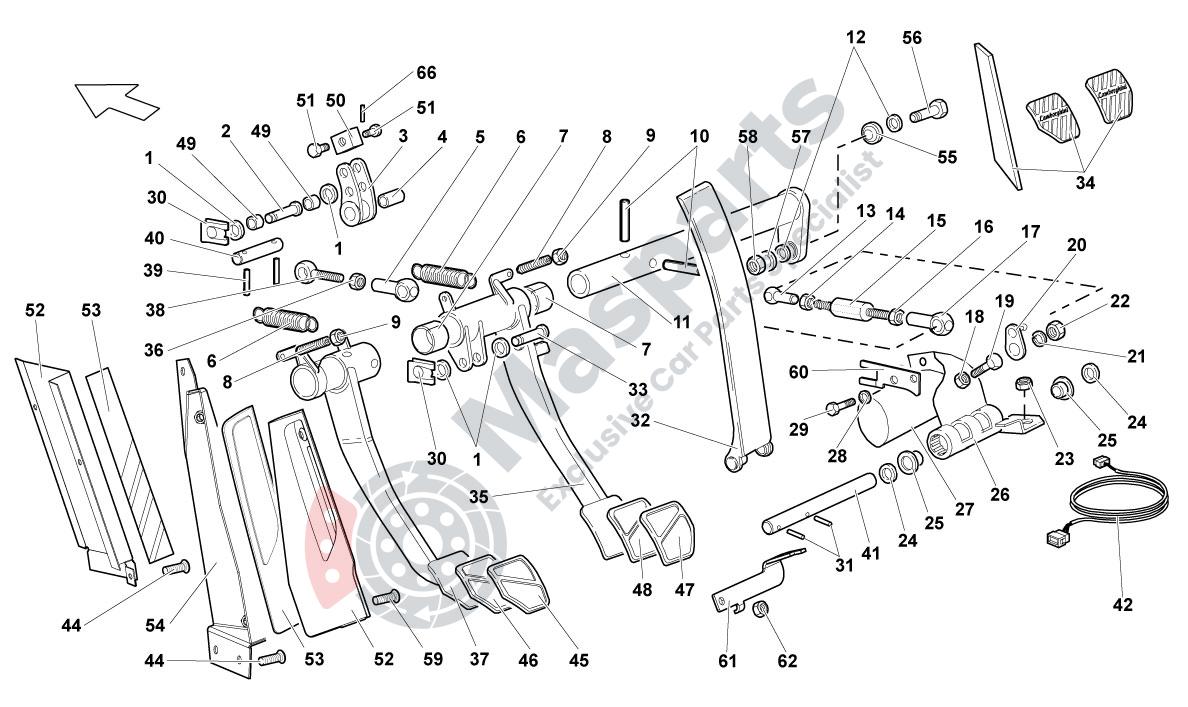

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N01152714 | Washer |
$1.74 |
|
|
| 2 | L-410721966 | Pin |
$175.07 |
|
|
| 3 | L-410721385 | Lever |
$99.94 |
|
|
| 5 | L-410721993 | Pin |
$65.97 |
|
|
| 6 | L-410721363 | Pedal Spring (Brake/Clutch) |
$152.46 |
|
|
| 9 | L-N01100637 | Hex.Nut |
$0.28 |
|
|
| 11 | L-413721325 | Brake/Clutch Pedal Pin |
$3,008.64 |
|
|
| 12 | L-WHT002631 | Washer |
$24.89 |
|
|
| 13 | L-400721214E | Ball Joint |
$55.25 |
|
|
| 14 | L-N10690001 | Hex.Nut |
$454.48 |
|
|
| 15 | L-400721743 | Threaded Shaft |
$41.68 |
|
|
| 16 | L-N10689901 | Hex.Nut |
$0.06 |
|
|
| 17 | L-400721214A | Sphere |
$44.52 |
|
|
| 18 | L-N01100845 | Hex.Nut |
$1.80 |
|
|
| 19 | L-N01033520 | Hexagon Head Bolt |
$2.61 |
|
|
| 20 | L-400721728C | Lever,Pedal Value Transmitter |
$183.76 |
|
|
| 22 | L-N02214812 | Hex.Head Clamping |
$1.86 |
|
|
| 23 | L-N90226404 | Hex.Nut W/ Flange |
$2.09 |
|
|
| 24 | L-WHT000697 | Washer |
$0.85 |
|
|
| 25 | L-400721543 | Busching 12X14 |
$23.88 |
|
|
| 26 | L-400721651A | Mounting,Throttle |
$1,022.59 |
|
|
| 27 | L-400907475A | Pedal Value |
$1,611.57 |
|
|
| 32 | L-400721507A | Acelerator Pedal |
$2,104.31 |
|
|
| 33 | L-410721147 | Pin |
$247.53 |
|
|
| 35 | L-413721145 | Brake Pedal |
$2,423.15 |
|
|
| 36 | L-N10155210 | Hex.Nut |
$1.86 |
|
|
| 38 | L-410721645 | Pin |
$70.49 |
|
|
| 39 | L-N0133481 | Roll Pin |
$0.22 |
|
|
| 40 | L-410721965 | Brake Booster Control Lever Pi N |
$25.91 |
|
|
| 41 | L-400721157 | Accelerator Pedal Pin |
$28.58 |
|
|
| 44 | L-N90780901 |
Hexalobular Socketm6X16
|
$2.67 |
|
|
| 45 | L-400721779 | Cover |
$532.16 |
|
|
| 46 | L-400721173 | Pedal Pad |
$29.91 |
|
|
| 47 | L-400721780A | Cover |
$259.71 |
|
|
| 48 | L-400721174C | Pedal Pad |
$264.34 |
|
|
| 49 | L-410721134A | Spacer Tube |
$194.78 |
|
|
| 50 | L-410721255 | Bracket |
$57.45 |
|
|
| 51 | L-410721379 | Screw |
$39.59 |
|
|
| 52 | L-413864419 | Footrest |
$3,327.48 |
|
|
| 53 | L-401864431 | Cover,Foot Support |
$19.01 |
|
|
| 54 | L-413864775B | Bracket |
$98.43 |
|
|
| 55 | L-410721427 | Servo Spring Tierod |
$78.03 |
|
|
| 57 | L-N90179103 | Washer |
$1.33 |
|
|
| 58 | L-N0111849 | Hex.Head Clamping Nut |
$1.97 |
|
|
| 59 | L-WHT003068 |
Screw
|
$1.22 |
|
|
| 60 | L-410971806 | Support |
$29.68 |
|
|
| 66 | L-N0133311 | Roll Pin |
$0.16 |
|
