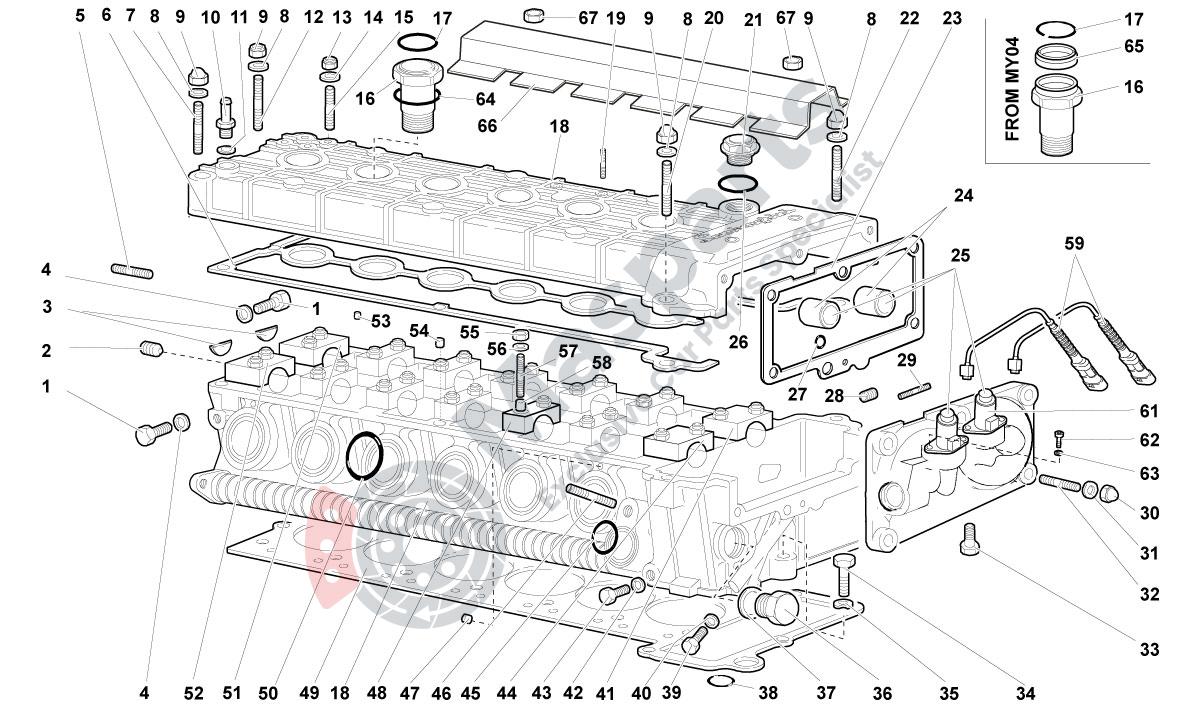

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | L-07M103113 | Cylinder Head Rear Cover Gasket |
€82,90 |
|
|
| 4 | L-N0138302 | Washer |
€2,35 |
|
|
| 6 | L-07M103483A | Guarnizione Coper.Sup.Testa Sx |
€172,50 |
|
|
| 8 | L-WHT001197A |
Washer
|
€0,21 |
|
|
| 10 | L-07L103606A | Connecting Piece |
€34,30 |
|
|
| 13 | L-N01118312 | Prev.Torque Type M6 |
€1,45 |
|
|
| 14 | L-N01152427 | Washer 6.4X12.5X1.6 |
€0,21 |
|
|
| 16 | L-07M103635 | Fixing Pipe |
€166,50 |
|
|
| 17 | L-07M103196 | Ring |
€3,25 |
|
|
| 18 | L-460147015 | Cylinder Head, Lh |
€11.272,80 |
|
|
| 23 | L-07M109091A | Guarn.Cop.Variatore Testa Sx |
€56,90 |
|
|
| 25 | L-07M109144B | Phase Variator Cover Assembly |
€2.410,00 |
|
|
| 29 | L-WHT003028 | Tap End Stud |
€14,63 |
|
|
| 32 | L-WHT003028 | Tap End Stud |
€14,63 |
|
|
| 34 | L-N01033520 | Hexagon Head Bolt |
€1,15 |
|
|
| 35 | L-WHT000771 | Spring Lock Washer |
€0,88 |
|
|
| 36 | L-07M103035 | Plug Am26X1.5 Din 764 |
€46,80 |
|
|
| 37 | L-WHT003049 | Washer 26.3X32.0X1.5 |
€4,35 |
|
|
| 38 | L-WHT003522 | Or Ring |
€4,10 |
|
|
| 41 | L-07M103285A | Supp.Anter.Per Testa Sini |
€161,00 |
|
|
| 42 | L-WHT003041 | Soft Copper Washer 6.4X12X1.5 |
€0,65 |
|
|
| 44 | L-07M103285 | Supp.Anter.Per Testa Sini |
€161,00 |
|
|
| 48 | L-07M103127 | Supp.Interm.Centr.X Testa |
€42,23 |
|
|
| 49 | L-07M103149 | Cylinder Head Gskt |
€4.145,00 |
|
|
| 51 | L-07M103307 | Supp.Post.X Testa Des.Sca |
€109,50 |
|
|
| 52 | L-07M103307A | Supp.Post.X Testa Des.Asp |
€109,50 |
|
|
| 53 | L-WHT003019 | Bushing 6.25X8X10 Mm |
€8,80 |
|
|
| 54 | L-WHT003082 | Cylinder Pins 1707 H11 3X5 |
€0,56 |
|
|
| 55 | L-N01100637 | Hex.Nut |
€0,24 |
|
|
| 56 | L-WHT001197A |
Washer
|
€0,21 |
|
|
| 58 | L-WHT003019 | Bushing 6.25X8X10 Mm |
€8,80 |
|
|
| 61 | L-07M109257 | Solenoid Valve |
€829,00 |
|
|
| 62 | L-N10650701 | Hexalobular Socket Pan Head B Lt |
€0,74 |
|
|
| 63 | L-WHT001197A |
Washer
|
€0,21 |
|
|
| 64 | L-07M103677 | Gasket |
€40,60 |
|
|
| 65 | L-07M103179 | Fixing Pipe Adaptor |
€20,20 |
|
|
| 66 | L-07M103908 | Cover |
€1.372,75 |
|
|
| 67 | L-N01118312 | Prev.Torque Type M6 |
€1,45 |
|
