Be aware: Two same spot numbers are selected, for example left and right.

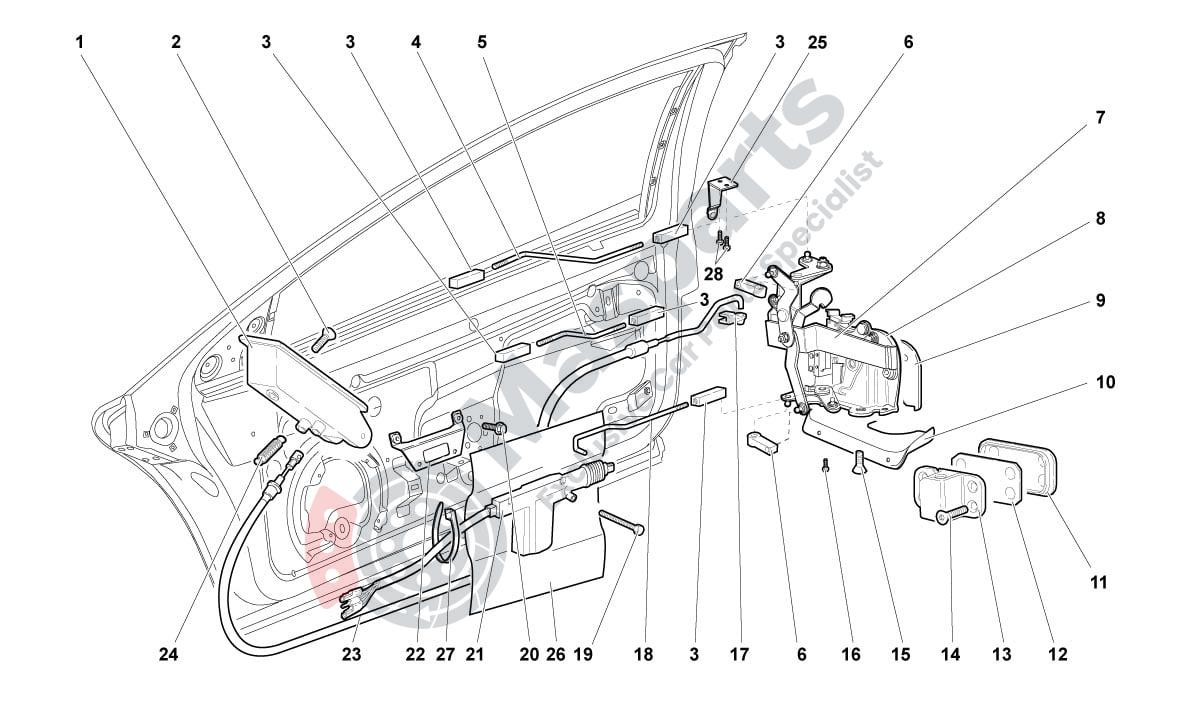

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-400827185 | Operating Lever |
$1,628.96 |
|
|
| 2 | L-WHT003091 | Screw M5X16 Uni 5933/Z Black |
$0.75 |
|
|
| 3 | L-410837261 | Lock Joint |
$2.96 |
|
|
| 4 | L-410837237A | Carrier |
$56.11 |
|
|
| 5 | L-410837511 | Tie Rod |
$52.06 |
|
|
| 6 | L-410837299 | Lh Manifold Head |
$14.78 |
|
|
| 7 | L-410837161 | Bracket, Ass. |
$1,373.89 |
|
|
| 7 | L-410837162A | Bracket, Ass. |
$337.39 |
|
|
| 8 | L-418837011C | Door Lock |
$3,397.04 |
|
|
| 8 | L-418837012C | Door Lock |
$2,660.82 |
|
|
| 9 | L-600940141 | Kit Guarniz.Serrat.Porta |
$146.49 |
|
|
| 10 | L-410837901 | Plate |
$386.08 |
|
|
| 10 | L-410837902 | Plate |
$386.08 |
|
|
| 11 | L-410837899 | Door Heater Trim |
$13.39 |
|
|
| 12 | L-410837963 | Shim Under In.Lock Heat. |
$14.09 |
|
|
| 12 | L-410837964 | Shim Under In.Lock Heat. |
$13.74 |
|
|
| 13 | L-410831407A | Hinge Half |
$426.66 |
|
|
| 13 | L-410831408A | Hinge Half |
$751.29 |
|
|
| 15 | L-WHT003068 |
Screw
|
$1.22 |
|
|
| 16 | L-WHT003065 | Parker Screw 2.9 X 16 |
$1.14 |
|
|
| 17 | L-410837230 | Lock Wire Spring |
$0.94 |
|
|
| 18 | L-410837653 | Rod |
$52.06 |
|
|
| 18 | L-410837654 | Rod |
$52.06 |
|
|
| 20 | L-N90319404 | Hexagon Flange |
$1.91 |
|
|
| 21 | L-410837122 | Actuator |
$892.74 |
|
|
| 22 | L-410837467 | Bracket |
$50.14 |
|
|
| 23 | L-410837018 | Opening Door Cable Assembly |
$108.87 |
|
|
| 24 | L-410837723 | Door Handle Spring |
$53.10 |
|
|
| 24 | L-410837724 | Door Handle Spring |
$53.10 |
|
|
| 25 | L-410837226 | Leva Maniglia Porta |
$74.67 |
|
|
| 26 | L-410837909 | Protection |
$463.76 |
|
|
| 27 | L-893971850C |
Cable Tie 205.00X4.60
|
$0.24 |
|
