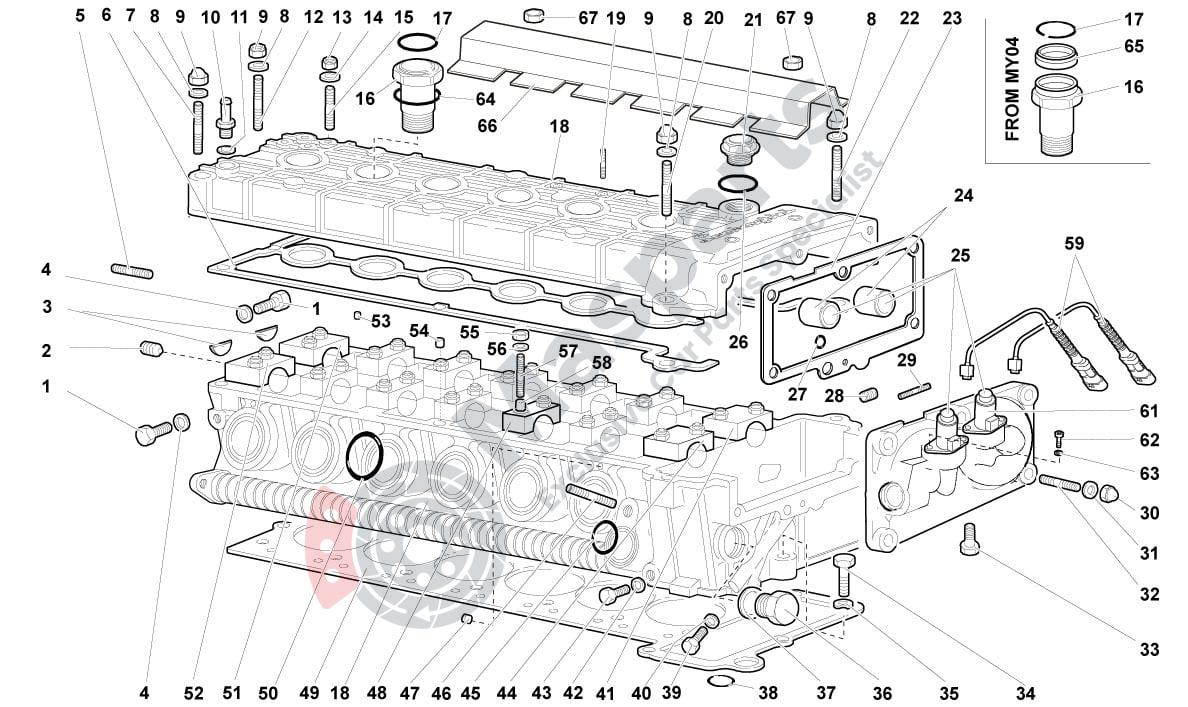

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 3 | L-07M103113 | Cylinder Head Rear Cover Gasket |
$92.62 |
|
|
| 4 | L-N0138302 | Washer |
$3.18 |
|
|
| 6 | L-07M103483A | Guarnizione Coper.Sup.Testa Sx |
$194.41 |
|
|
| 8 | L-WHT001197A |
Washer
|
$0.23 |
|
|
| 10 | L-07L103606A | Connecting Piece |
$38.71 |
|
|
| 13 | L-N01118312 | Prev.Torque Type M6 |
$1.79 |
|
|
| 14 | L-N01152427 | Washer 6.4X12.5X1.6 |
$0.25 |
|
|
| 16 | L-07M103635 | Fixing Pipe |
$187.71 |
|
|
| 17 | L-07M103196 | Ring |
$3.69 |
|
|
| 18 | L-460147015 | Cylinder Head, Lh |
$12,595.10 |
|
|
| 21 | L-07M103141 | Cap |
$506.14 |
|
|
| 23 | L-07M109091A | Guarn.Cop.Variatore Testa Sx |
$64.24 |
|
|
| 25 | L-07M109144B | Phase Variator Cover Assembly |
$2,720.63 |
|
|
| 26 | L-WHT003062 | O-Ring |
$5.53 |
|
|
| 29 | L-WHT003028 | Tap End Stud |
$16.35 |
|
|
| 32 | L-WHT003028 | Tap End Stud |
$16.35 |
|
|
| 34 | L-N01033520 | Hexagon Head Bolt |
$2.79 |
|
|
| 35 | L-WHT000771 | Spring Lock Washer |
$0.99 |
|
|
| 36 | L-07M103035 | Plug Am26X1.5 Din 764 |
$52.85 |
|
|
| 37 | L-WHT003049 | Washer 26.3X32.0X1.5 |
$4.86 |
|
|
| 38 | L-WHT003522 | Or Ring |
$4.58 |
|
|
| 41 | L-07M103285A | Supp.Anter.Per Testa Sini |
$181.56 |
|
|
| 42 | L-WHT003041 | Soft Copper Washer 6.4X12X1.5 |
$0.73 |
|
|
| 44 | L-07M103285 | Supp.Anter.Per Testa Sini |
$181.56 |
|
|
| 48 | L-07M103127 | Supp.Interm.Centr.X Testa |
$47.18 |
|
|
| 49 | L-07M103149 | Cylinder Head Gskt |
$4,631.21 |
|
|
| 51 | L-07M103307 | Supp.Post.X Testa Des.Sca |
$123.46 |
|
|
| 52 | L-07M103307A | Supp.Post.X Testa Des.Asp |
$123.46 |
|
|
| 53 | L-WHT003019 | Bushing 6.25X8X10 Mm |
$9.94 |
|
|
| 54 | L-WHT003082 | Cylinder Pins 1707 H11 3X5 |
$0.63 |
|
|
| 55 | L-N01100637 | Hex.Nut |
$0.27 |
|
|
| 56 | L-WHT001197A |
Washer
|
$0.23 |
|
|
| 58 | L-WHT003019 | Bushing 6.25X8X10 Mm |
$9.94 |
|
|
| 61 | L-07M109257 | Solenoid Valve |
$935.18 |
|
|
| 62 | L-N10650701 | Hexalobular Socket Pan Head B Lt |
$1.56 |
|
|
| 63 | L-WHT001197A |
Washer
|
$0.23 |
|
|
| 64 | L-07M103677 | Gasket |
$82.57 |
|
|
| 65 | L-07M103179 | Fixing Pipe Adaptor |
$22.79 |
|
|
| 66 | L-07M103908 | Cover |
$1,549.70 |
|
|
| 67 | L-N01118312 | Prev.Torque Type M6 |
$1.79 |
|
