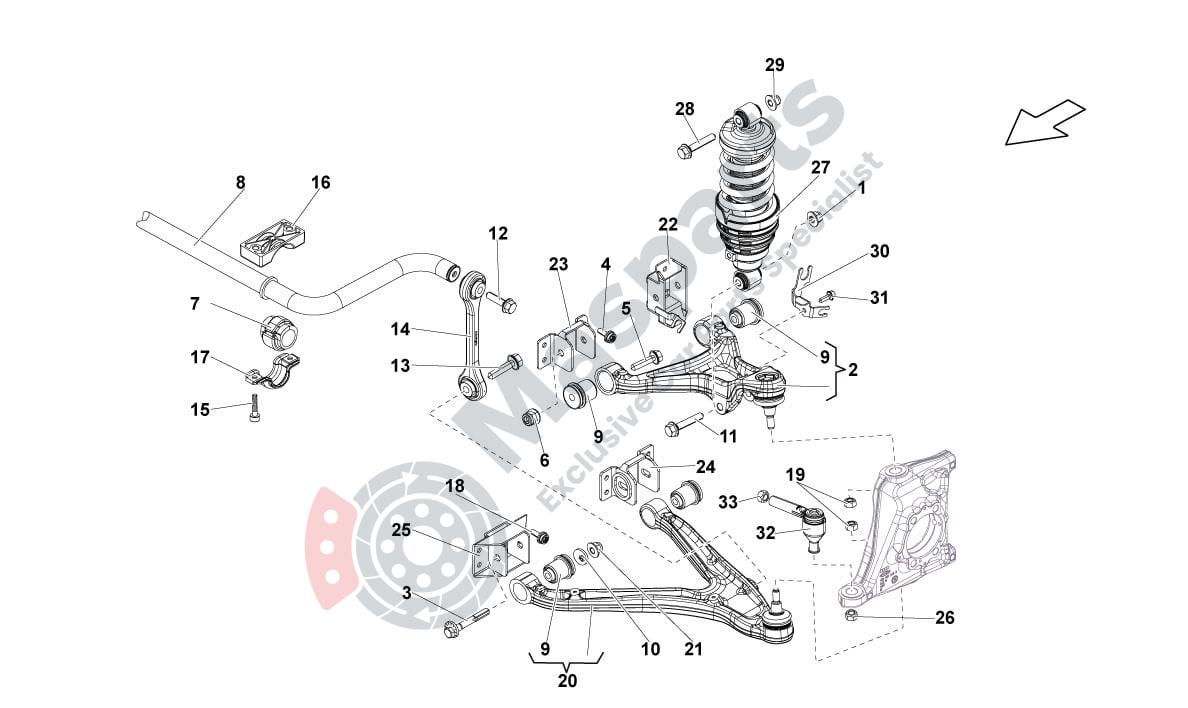

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.26 |
|
|
| 2 | L-400407505J | Control Arm,Front Upper |
$1,090.78 |
|
|
| 2 | L-400407506J | Control Arm,Front Upper |
$1,090.78 |
|
|
| 3 | L-WHT002262 | Eccentric Bolt |
$12.94 |
|
|
| 4 | L-N10689301 |
12-Point Socket M8X25
|
$3.13 |
|
|
| 5 | L-N10428002 | Hexagon Flange Am12X1.5X80 |
$6.38 |
|
|
| 6 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.26 |
|
|
| 7 | L-4D0411327J |
Rubber Mount D 31
|
$151.43 |
|
|
| 8 | L-420411309 | Stabilizer |
$329.55 |
|
|
| 10 | L-WHT001676 | Eccentric Washer |
$1.51 |
|
|
| 11 | L-N10629501 | Hexagon Flange |
$8.76 |
|
|
| 12 | L-N10699901 | Hexagon Flange M10X45 |
$3.66 |
|
|
| 13 | L-N10314506 |
Hexagon Flange Am10X50
|
$4.00 |
|
|
| 14 | L-420407465 | Connecting Link |
$203.07 |
|
|
| 15 | L-N10682501 |
12-Point Socket M8X50
|
$3.48 |
|
|
| 16 | L-420411031A | Stabilizer |
$22.57 |
|
|
| 17 | L-4D0411336G | Clip Stabi |
$5.05 |
|
|
| 18 | L-N10689301 |
12-Point Socket M8X25
|
$3.13 |
|
|
| 19 | L-WHT004898 |
Hexagon Flange Nut M14X1.5
|
$6.15 |
|
|
| 20 | L-400407151J | Track Control Arm |
$1,206.82 |
|
|
| 20 | L-400407152J | Track Control Arm |
$1,155.76 |
|
|
| 21 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.26 |
|
|
| 22 | L-420407457B | Mounting |
$50.25 |
|
|
| 22 | L-420407458B | Mounting |
$50.25 |
|
|
| 23 | L-420407457F | Mounting |
$478.08 |
|
|
| 23 | L-420407458F | Mounting |
$478.08 |
|
|
| 24 | L-420407457H | Mounting |
$50.25 |
|
|
| 24 | L-420407458H | Mounting |
$50.25 |
|
|
| 25 | L-400407457 | Mounting |
$143.31 |
|
|
| 26 | L-N90848406 | Hexagon Flange Nutm12X1.5 |
$6.38 |
|
|
| 27 | L-400412019BT | Damper Strut |
$9,378.35 |
|
|
| 27 | L-400412019CF | Damper Strut |
$10,438.38 |
|
|
| 28 | L-N10428002 | Hexagon Flange Am12X1.5X80 |
$6.38 |
|
|
| 29 | L-N10106402 |
Prev.Torque Type M12X1.5
|
$2.26 |
|
|
| 30 | L-400971845A | Bracket |
$31.91 |
|
|
| 30 | L-400971846A | Bracket |
$31.91 |
|
|
| 31 | L-N10714801 |
Hexalobular Socketm6X18
|
$1.33 |
|
|
| 32 | L-420419811A | Ball Joint |
$161.30 |
|
|
| 33 | L-N10218708 | Hex.Nut |
$3.42 |
|
