Be aware: Two same spot numbers are selected, for example left and right.

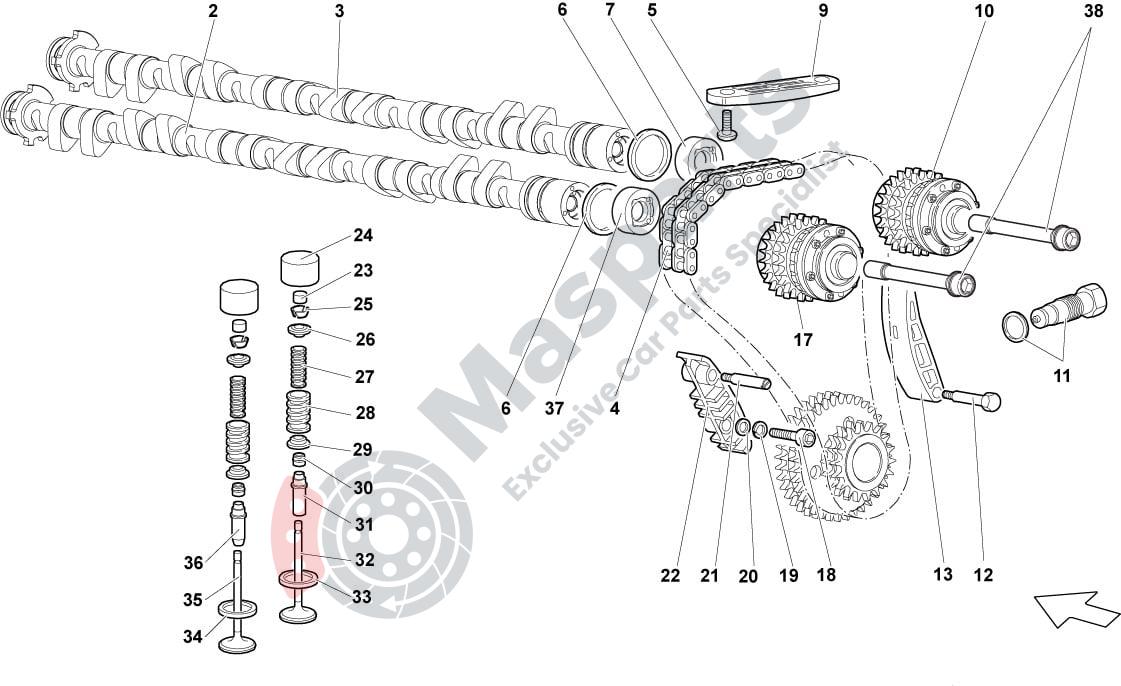

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | L-07M109303K | Intake Cam |
$2,304.83 |
|
|
| 3 | L-07M109305H | Exhaust Cam |
$2,304.83 |
|
|
| 4 | L-07M109231 | Upper Timing Chain |
$142.37 |
|
|
| 5 | L-N90638102 | Screw |
$1.23 |
|
|
| 6 | L-07M109349 | Gasket |
$43.65 |
|
|
| 7 | L-07M109423A | Support |
$1,160.00 |
|
|
| 9 | L-07M109513 | Rh/Lh Head Upper Chain Guide |
$673.36 |
|
|
| 10 | L-07M109084D | Phase Transformer |
$2,141.45 |
|
|
| 11 | L-07M109255 | Hydraulic Tightener |
$744.55 |
|
|
| 12 | L-07M109225A | Tightener Guide Pin |
$45.51 |
|
|
| 13 | L-07M109508 | Upper Chain Tightener Guide |
$207.14 |
|
|
| 17 | L-07M109083C | Camshaft Phase Var. |
$3,641.04 |
|
|
| 18 | L-WHT003071 | Screw M8X35 Uni 59318G/B |
$6.01 |
|
|
| 19 | L-WHT001397 | Spring Lock Washer |
$0.15 |
|
|
| 20 | L-WHT002962 | Washer |
$0.29 |
|
|
| 21 | L-07M109224 | Fixed Guide Pin |
$48.43 |
|
|
| 22 | L-07M109469 | Upper Chain Fixed Guide |
$43.65 |
|
|
| 23 | L-07M109320AM | Compensating |
$46.56 |
|
|
| 23 | L-07M109320AN | Compensating |
$47.91 |
|
|
| 23 | L-07M109320AP | Compensating |
$47.91 |
|
|
| 23 | L-07M109320AQ | Compensating |
$47.91 |
|
|
| 23 | L-07M109320AR | Compensating |
$47.91 |
|
|
| 23 | L-07M109320AS | Compensating |
$47.91 |
|
|
| 23 | L-07M109320AT | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BA | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BB | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BC | Compensating |
$74.45 |
|
|
| 23 | L-07M109320BD | Compensating |
$45.80 |
|
|
| 23 | L-07M109320BE | Compensating |
$90.44 |
|
|
| 23 | L-07M109320BF | Compensating |
$575.33 |
|
|
| 23 | L-07M109320BG | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BH | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BJ | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BK | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BL | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BM | Compensating |
$47.91 |
|
|
| 23 | L-07M109320BN | Compensating |
$47.91 |
|
|
| 24 | L-07M109309A | Bucket Tappet |
$383.94 |
|
|
| 25 | L-036109651B | Semicono Di Valvola |
$0.26 |
|
|
| 26 | L-07M109641A | Valve Spring Plate |
$42.71 |
|
|
| 27 | L-07M109633B | Spring Valve |
$10.74 |
|
|
| 28 | L-07M109623B | Spring Valve |
$11.90 |
|
|
| 29 | L-07M109642B | Valve Spring Plate |
$31.04 |
|
|
| 31 | L-07M103416C | Valve Giude |
$138.29 |
|
|
| 32 | L-07M109611A | Exhaust Valve |
$105.61 |
|
|
| 33 | L-07M103441A | Valve Seat Insert |
$38.86 |
|
|
| 34 | L-07M103431A | Valve Seat Insert |
$36.88 |
|
|
| 35 | L-07M109601B | Intake Valve |
$84.84 |
|
|
| 36 | L-07M103416B | Valve Giude |
$51.11 |
|
|
| 37 | L-07M109423A | Support |
$1,160.00 |
|
|
| 38 | L-07M109177B | Fastening Element |
$52.11 |
|
|
| 38 | L-07M109177C | Fastening Part |
$52.11 |
|
