Be aware: Two same spot numbers are selected, for example left and right.

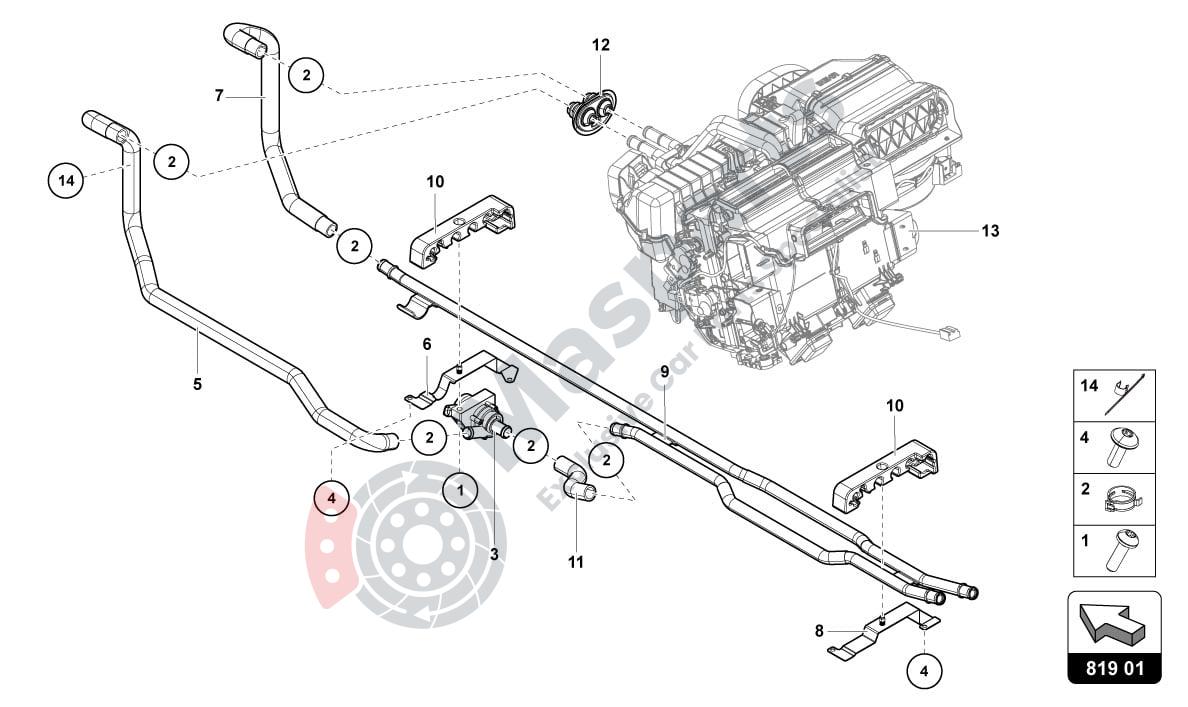

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N10124304 |
Hexalobular Socketm6X20
|
$1.51 |
|
|
| 2 | L-N90687001 |
Spring Clamp B27X12
|
$6.08 |
|
|
| 3 | L-1K0965561G | Water Circulating Pump |
$252.17 |
|
|
| 4 | L-N90780903 |
Hexalobular Socketm6X16
|
$0.79 |
|
|
| 5 | L-470819372B | Heating Hose |
$339.20 |
|
|
| 6 | L-470803617A | Retainer |
$33.92 |
|
|
| 7 | L-470819376B | Heating Hose |
$64.16 |
|
|
| 8 | L-470803548A | Retainer |
$23.49 |
|
|
| 9 | L-470819337A | Heating Hose |
$278.39 |
|
|
| 10 | L-470803263C | Stop Ledge |
$57.91 |
|
|
| 11 | L-470819370A | Heating Hose |
$36.60 |
|
|
| 12 | L-8K0819699A | Double Grommet |
$5.24 |
|
|
| 14 | L-N90666101 | Cable Tie Base 4.6X200 |
$0.89 |
|
