Be aware: Two same spot numbers are selected, for example left and right.

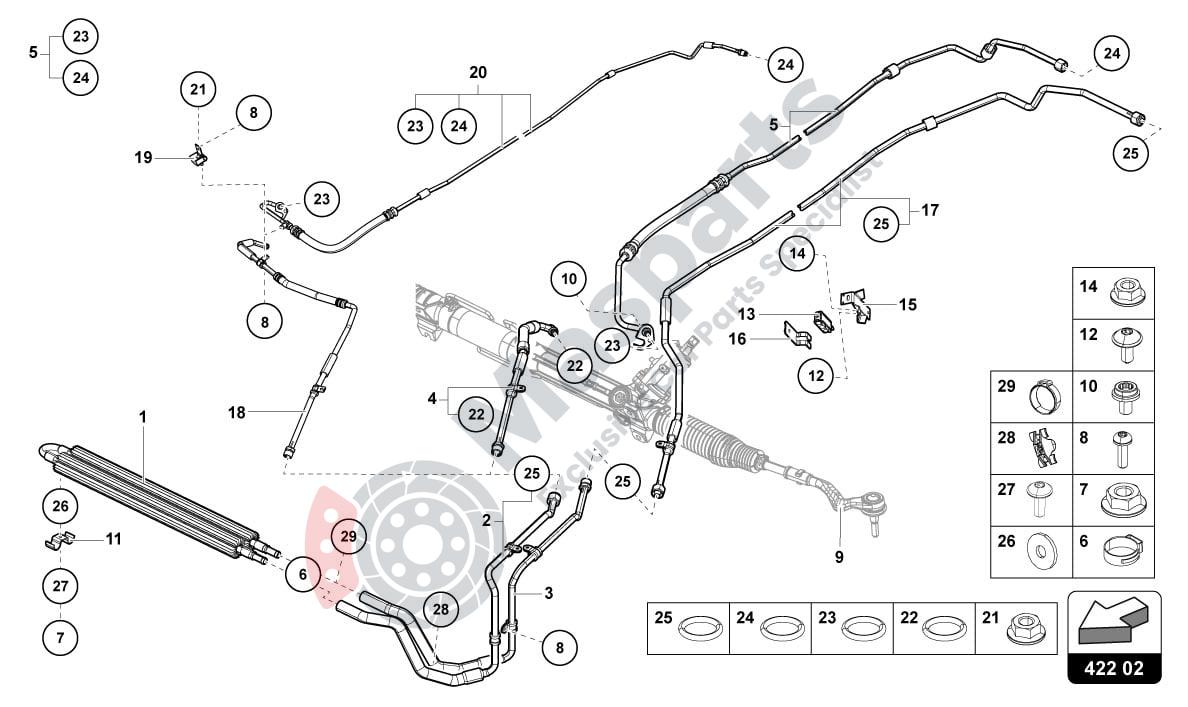

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-400422886A | Oil Cooler |
€401,00 |
|
|
| 2 | L-470422898 | Return Hose |
€96,70 |
|
|
| 3 | L-470422857L | Return Hose |
€107,50 |
|
|
| 4 | L-471422891C | Return Hose |
€207,50 |
|
|
| 5 | L-471422893F | Expandable Hose P.Idrog/Scat.-Ant |
€330,00 |
|
|
| 6 | L-N10197601 | Ear Hose Clamp 19.8X7X0.6 |
€1,05 |
|
|
| 7 | L-N10017307 |
Hexagon Flange Nutm5
|
€1,50 |
|
|
| 8 | L-N10124304 |
Hexalobular Socketm6X20
|
€1,35 |
|
|
| 10 | L-N10664901 |
12-Point Socket M8X16
|
€2,55 |
|
|
| 11 | L-400422871D | Bracket |
€5,45 |
|
|
| 12 | L-N90898101 | Hexalobular Socketm6X14 |
€1,70 |
|
|
| 13 | L-420201190A | Securing Clip |
€7,10 |
|
|
| 14 | L-N10017304 |
Hexagon Flange Nut M5
|
€1,50 |
|
|
| 15 | L-470422871 | Bracket |
€17,75 |
|
|
| 16 | L-420611793A | Bracket |
€3,20 |
|
|
| 17 | L-470422859E | Return Pipe |
€209,00 |
|
|
| 22 | L-470298021E | O-Ring |
€26,10 |
|
|
| 23 | L-470298021F | O-Ring |
€17,40 |
|
|
| 24 | L-470298021G | O-Ring |
€17,40 |
|
|
| 25 | L-470298021H | O-Ring |
€17,40 |
|
|
| 26 | L-WHT001190 | Screw |
€1,65 |
|
|
| 27 | L-WHT000778 |
Washer 5.3X15X1.5 Iso7093-1
|
€0,48 |
|
|
| 28 | L-3D0971838F | Cable Tie Base |
€2,10 |
|
|
| 29 | L-400251189B | Clamp |
€8,05 |
|
