Be aware: Two same spot numbers are selected, for example left and right.

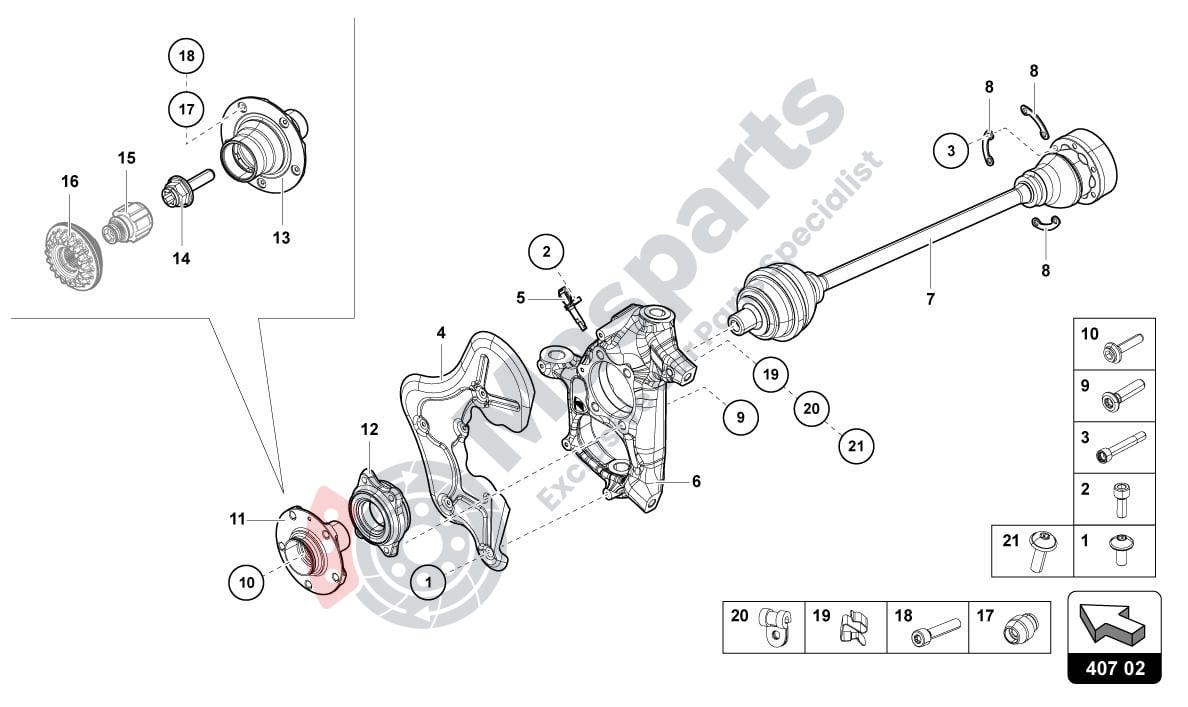

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-N10406504 |
Hexalobular Socketm6X12
|
$1.62 |
|
|
| 2 | L-N01474011 |
Pan Head Bolt M6X16
|
$2.12 |
|
|
| 3 | L-N91108201 |
Triple Square Boltm8X48
|
$3.24 |
|
|
| 4 | L-470407721B | Shield |
$54.24 |
|
|
| 4 | L-470407722B | Shield |
$54.24 |
|
|
| 5 | L-4E0927803F |
Speed Sensor Right
|
$109.05 |
|
|
| 5 | L-4E0927804F |
Speed Sensor Left
|
$109.05 |
|
|
| 6 | L-470407245E | Steering Knuckle, Front Lh |
$1,955.28 |
|
|
| 6 | L-470407246E | Steering Knuckle, Front Rh |
$1,955.28 |
|
|
| 7 | L-470407271B | Drive Shaft |
$7,619.99 |
|
|
| 8 | L-1K0407357C | Backing Plate |
$1.73 |
|
|
| 9 | L-WHT000237A | Triple Square Boltm12X1.5X45 |
$5.98 |
|
|
| 10 | L-4B0407643A |
Hexagon Head Bolt M16X72
|
$13.97 |
|
|
| 11 | L-4D0407613E | Wheel Hub |
$293.85 |
|
|
| 12 | L-4E0407625E |
Front Hub Bearing
|
$227.93 |
|
|
| 13 | L-470407613A | Wheel Hub Mozzo Ant Assy |
$1,865.89 |
|
|
| 14 | L-WHT007467 | Wheel Bolt M16X1.5X72.0 |
$139.10 |
|
|
| 17 | L-470615315 | Tang |
$32.57 |
|
|
| 18 | L-WHT008292 |
Hexalobular Socketm6X30
|
$4.47 |
|
|
| 18 | L-N10620901 | Hexalobular Socket Pan Head Bolt M6X30 |
$2.40 |
|
|
| 20 | L-N10328101 | Retaining Clamp D1-5X15 |
$1.84 |
|
|
| 21 | L-N10714801 |
Hexalobular Socketm6X18
|
$1.28 |
|
