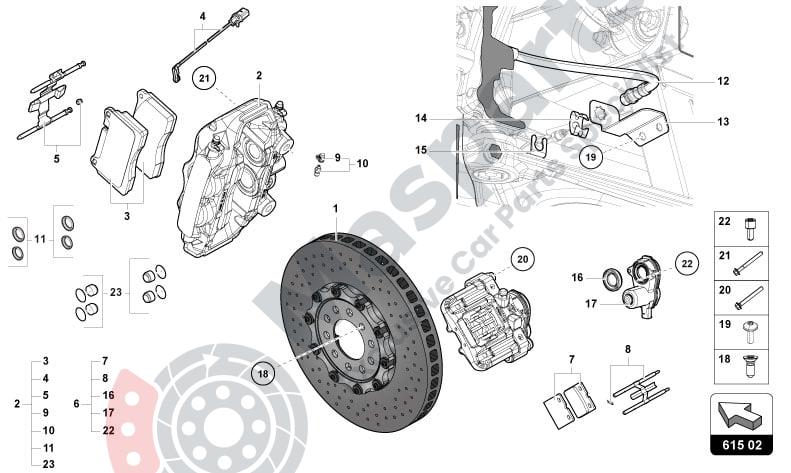

615-BRAKES DISCS parts diagram
Be aware: Two same spot numbers are selected, for example left and right.
# S Part nr Description Price Add
1 L-470615601J Brake Rotor

$7,797.30

1 L-470615602J Brake Rotor

$7,797.30

2 L-470615405AA Sliding-Caliper

$5,229.76

2 L-470615405AB Sliding-Caliper

$5,229.76

2 L-470615405AC Sliding-Caliper Post.Sx Cbc Nera

$2,155.40

2 L-470615405AD Sliding-Caliper Post.Sx Cbc Gialla

$2,155.40

2 L-470615405AE Sliding-Caliper Post.Sx Cbc Grigia

$2,155.40

2 L-470615405AF Sliding-Caliper Post.Sx Cbc Orange

$2,155.40

2 L-470615405AG Sliding-Caliper Post.Sx Cbc Rossa

$2,155.40

2 L-470615405AH Sliding-Caliper Post.Sx.Verde.Mant

$2,155.40

2 L-470615405AQ Sliding-Caliper

$2,784.75

2 L-470615405BB Sliding-Caliper

$5,229.76

2 L-470615406AA Sliding-Caliper

$5,229.76

2 L-470615406AB Sliding-Caliper

$5,229.76

2 L-470615406AC Sliding-Caliper Post.Dx Cbc Nera

$2,155.40

2 L-470615406AD Sliding-Caliper Post.Dx Cbc Gialla

$2,155.40

2 L-470615406AE Sliding-Caliper Post.Dx Cbc Grigia

$2,155.40

2 L-470615406AF Sliding-Caliper Post.Dx Cbcarancio

$2,155.40

2 L-470615406AG Sliding-Caliper Post.Dx Rosso

$2,155.40

2 L-470615406AH Sliding-Caliper Post.Dx.Verde.Mant

$2,155.40

2 L-470615407 Calliper Without Brake Pads

$7,000.86

2 L-470615407A Calliper Without Brake Pads

$7,758.31

2 L-470615407B Calliper Without Brake Pads

$7,346.17

2 L-470615407C Calliper Without Brake Pads

$7,791.73

2 L-470615407D Calliper Without Brake Pads

$7,975.52

2 L-470615407E Calliper Without Brake Pads

$7,975.52

2 L-470615407F Calliper Without Brake Pads

$7,975.52

2 L-470615407G Calliper Without Brake Pads

$7,975.52

2 L-470615407H Calliper Without Brake Pads

$7,975.52

2 L-470615408 Calliper Without Brake Pads

$7,000.86

2 L-470615408A Calliper Without Brake Pads

$7,758.31

2 L-470615408B Calliper Without Brake Pads

$7,346.17

2 L-470615408C Calliper Without Brake Pads

$7,791.73

2 L-470615408D Calliper Without Brake Pads

$7,975.52

2 L-470615408E Calliper Without Brake Pads

$7,975.52

2 L-470615408F Calliper Without Brake Pads

$7,975.52

2 L-470615408G Calliper Without Brake Pads

$7,975.52

2 L-470615408H Calliper Without Brake Pads

$7,975.52

3 L-470698451 Set Brake

$983.46

3 L-470698451D Set Guarnizioni Freno

$984.46

4 L-470698437 Indicator

$182.12

5 L-470698135A Fastening Part

$446.67

6 L-470615403B Brake Caliper Freno A Mano

$1,882.49

6 L-470615404B Brake Caliper Freno A Mano

$1,882.49

7 L-470698451A Set Brake

$968.42

8 L-470698135B Fastening Part

$646.06

9 L-7D0611483 Dust Cap

$12.87

10 L-8A0615273 Bleeder Screw

$24.51

12 L-470611775A Brake Hose

$55.03

13 L-470611847A Bracket,Brake Hose

$18.21

13 L-470611848A Bracket,Brake Hose

$18.21

14 L-4D0611715B Retaining Spring

$0.84

17 L-470998281 Control Motor

$397.66

18 L-N10648301
Hexalobular Socketm6X16

$1.34

19 L-N10714801
Hexalobular Socketm6X18

$1.28

20 L-N91105601
Hexagon Flange M10X85

$4.23

21 L-N10731501 Hexagon Flange Bolt

$7.52

22 L-N10285506 Hexalobular Socket Pan Head Bo T

$2.23
