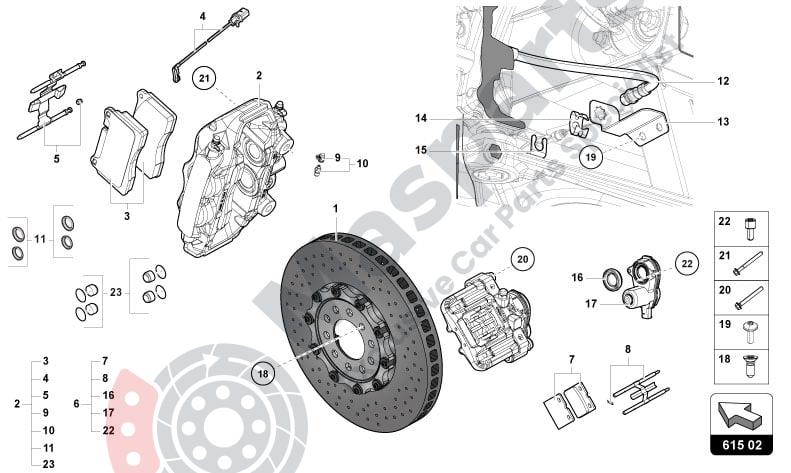

615-BREMSEN SCHEIBEN parts diagram
Be aware: Two same spot numbers are selected, for example left and right.
# S Part nr Description Price Add
1 L-470615601F Brake Disk

$7,789.73

1 L-470615602F Brake Disk

$7,789.73

2 L-470615405B Ccb Caliper Rear

$2,258.15

2 L-470615405C Ccb Caliper Rear

$2,258.15

2 L-470615405D Ccb Caliper Rear

$2,258.15

2 L-470615405E Ccb Caliper Rear

$2,258.15

2 L-470615405F Sliding-Caliper

$2,643.26

2 L-470615405J Sliding-Caliper

$5,426.55

2 L-470615405K Sliding-Caliper

$5,426.55

2 L-470615406B Ccb Caliper Rear

$2,258.15

2 L-470615406C Ccb Caliper Rear

$2,258.15

2 L-470615406D Ccb Caliper Rear

$2,258.15

2 L-470615406E Ccb Caliper Rear

$2,258.15

2 L-470615406F Sliding-Caliper

$2,643.26

2 L-470615406J Sliding-Caliper

$5,426.55

2 L-470615406K Sliding-Caliper

$5,426.55

2 L-470615407 Calliper Without Brake Pads

$7,334.60

2 L-470615407A Calliper Without Brake Pads

$8,052.30

2 L-470615407B Calliper Without Brake Pads

$7,696.37

2 L-470615407C Calliper Without Brake Pads

$8,163.17

2 L-470615407D Calliper Without Brake Pads

$8,355.72

2 L-470615407E Calliper Without Brake Pads

$8,355.72

2 L-470615407F Calliper Without Brake Pads

$8,355.72

2 L-470615407G Calliper Without Brake Pads

$8,355.72

2 L-470615407H Calliper Without Brake Pads

$8,355.72

2 L-470615408 Calliper Without Brake Pads

$7,334.60

2 L-470615408A Calliper Without Brake Pads

$8,052.30

2 L-470615408B Calliper Without Brake Pads

$7,696.37

2 L-470615408C Calliper Without Brake Pads

$8,163.17

2 L-470615408D Calliper Without Brake Pads

$8,355.72

2 L-470615408E Calliper Without Brake Pads

$8,355.72

2 L-470615408F Calliper Without Brake Pads

$8,355.72

2 L-470615408G Calliper Without Brake Pads

$8,355.72

2 L-470615408H Calliper Without Brake Pads

$8,355.72

3 L-470698451 Set Brake

$1,030.34

3 L-470698451D Set Guarnizioni Freno

$1,031.39

4 L-470698437 Indicator

$190.80

5 L-470698135A Fastening Part

$467.97

6 L-470615403A Brake Caliper

$1,744.67

6 L-470615404A Brake Caliper

$1,744.67

7 L-470698451A Set Brake

$1,014.59

8 L-470698135B Fastening Part

$676.86

9 L-7D0611483 Dust Cap

$13.48

10 L-8A0615273 Bleeder Screw

$24.22

12 L-470611775A Brake Hose

$57.65

13 L-470611847A Bracket,Brake Hose

$19.08

13 L-470611848A Bracket,Brake Hose

$19.08

14 L-4D0611715B Retaining Spring

$0.88

17 L-470998281 Control Motor

$416.62

18 L-N10648301
Hexalobular Socketm6X16

$1.40

19 L-N10714801
Hexalobular Socketm6X18

$1.34

20 L-N91105601
Hexagon Flange M10X85

$4.43

21 L-N10731501 Hexagon Flange Bolt

$7.88

22 L-N10285506 Hexalobular Socket Pan Head Bo T

$2.22
