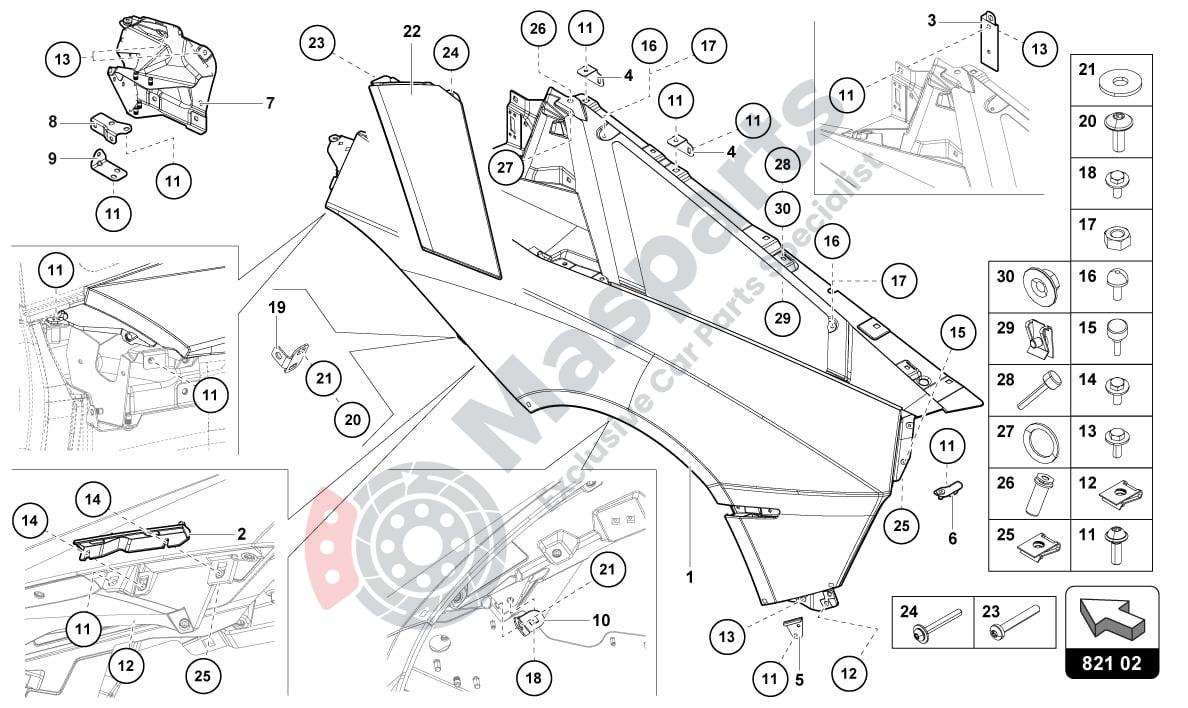

Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | L-470854959G | Cover,Fender |
$4,340.23 |
|
|
| 1 | L-470854960H | Cover,Fender |
$4,340.23 |
|
|
| 2 | L-470853795 | Mounting Plate |
$25.99 |
|
|
| 2 | L-470853796 | Mounting Plate |
$25.99 |
|
|
| 3 | L-470853587B | Bracket |
$22.02 |
|
|
| 3 | L-470853588B | Bracket |
$22.02 |
|
|
| 4 | L-470853945A | Bracket Post. Rear Fender |
$373.86 |
|
|
| 5 | L-470853231 | Bracket |
$27.86 |
|
|
| 5 | L-470853232 | Bracket |
$27.86 |
|
|
| 6 | L-470821141 | Bracket,Fender |
$759.40 |
|
|
| 6 | L-470821142 | Bracket,Fender |
$759.40 |
|
|
| 7 | L-470857289A | Mounting |
$979.04 |
|
|
| 7 | L-470857290A | Mounting |
$258.19 |
|
|
| 8 | L-470857371B | Retaining Plate Fix.Serratura |
$335.30 |
|
|
| 8 | L-470857372B | Retaining Plate Fix Serratura |
$335.30 |
|
|
| 9 | L-470857155B | Bracket Serratura |
$49.42 |
|
|
| 9 | L-470857156B | Bracket Serratura |
$265.20 |
|
|
| 10 | L-470813755B | Bracket |
$11.39 |
|
|
| 10 | L-470813756B | Bracket |
$11.39 |
|
|
| 11 | L-N10558102 |
Hexalobular Socket
|
$3.68 |
|
|
| 12 | L-N90688703 |
Snap Nut Clamp M6X23.8X16
|
$1.12 |
|
|
| 13 | L-N10009507 |
Hexagon Head Bolt M6X18 S1-L
|
$1.23 |
|
|
| 14 | L-N90898101 | Hexalobular Socketm6X14 |
$1.99 |
|
|
| 15 | L-470115627 | Stopper Passhuelse |
$26.99 |
|
|
| 16 | L-410853809 | Buffer |
$37.39 |
|
|
| 17 | L-N01100518 | Hex.Nut M5 |
$3.45 |
|
|
| 18 | L-N10661002 |
Hexalobular Socketm6X20
|
$1.29 |
|
|
| 19 | L-470853647A | Bracket |
$18.28 |
|
|
| 19 | L-470853648A | Bracket |
$18.28 |
|
|
| 20 | L-N90780903 |
Hexalobular Socketm6X16
|
$0.83 |
|
|
| 21 | L-N01166623 |
Washer 6.4X18X1.6
|
$1.29 |
|
|
| 22 | L-475854965A | Cover,Fender Cop.Paraf.Sup.Sx |
$2,903.23 |
|
|
| 22 | L-475854966A | Cover,Fender Cop.Paraf.Sup.Dx |
$2,903.23 |
|
|
| 23 | L-N10405702 |
Hexalobular Socketam6X45
|
$2.75 |
|
|
| 24 | L-N10483102 |
Hexalobular Socketm6X50-S11-L
|
$1.75 |
|
|
| 25 | L-N91195701 |
Speed Nut
|
$2.80 |
|
|
| 26 | L-8H0806221 |
Adjustment Part
|
$9.40 |
|
|
| 27 | L-WHT006377 | Safety Washer Schnorr "S" Type 13X18X1.1 |
$0.82 |
|
