The Ultimate Maserati Ghibli Taillight Upgrade: A 2021+ Boomerang Retrofit Guide

The Maserati Ghibli (M156) has occupied a unique space in the sports sedan market since its debut in 2013. It combined the soul of a Ferrari-derived powertrain with an elegant, flowing silhouette. However, as the automotive world shifted toward intricate LED signatures, the early M156 taillights began to show their age. The solution arrived with the M156 facelift in 2021, which introduced what many enthusiasts consider the most significant aesthetic improvement in the model's history: the 2021+ Boomerang lights.

In this comprehensive guide, we explore the technical nuances of this Maserati Ghibli taillight upgrade . In collaboration with the specialists at Garage Helfferich , we break down why this Ghibli taillight retrofit is the definitive way to modernize your vehicle while maintaining its Italian heritage through the use of Genuine Maserati parts.

The Heritage of the "Boomerang" Design

To understand why the 2021+ Boomerang lights are so sought after, one must look back at Maserati's design lineage. The "Boomerang" shape first gained iconic status with the Giugiaro-designed Maserati 3200 GT in the late 1990s. Those thin, curved LED strips were revolutionary at the time but were unfortunately replaced by more conventional units in the subsequent 4200 GT due to US regulations.

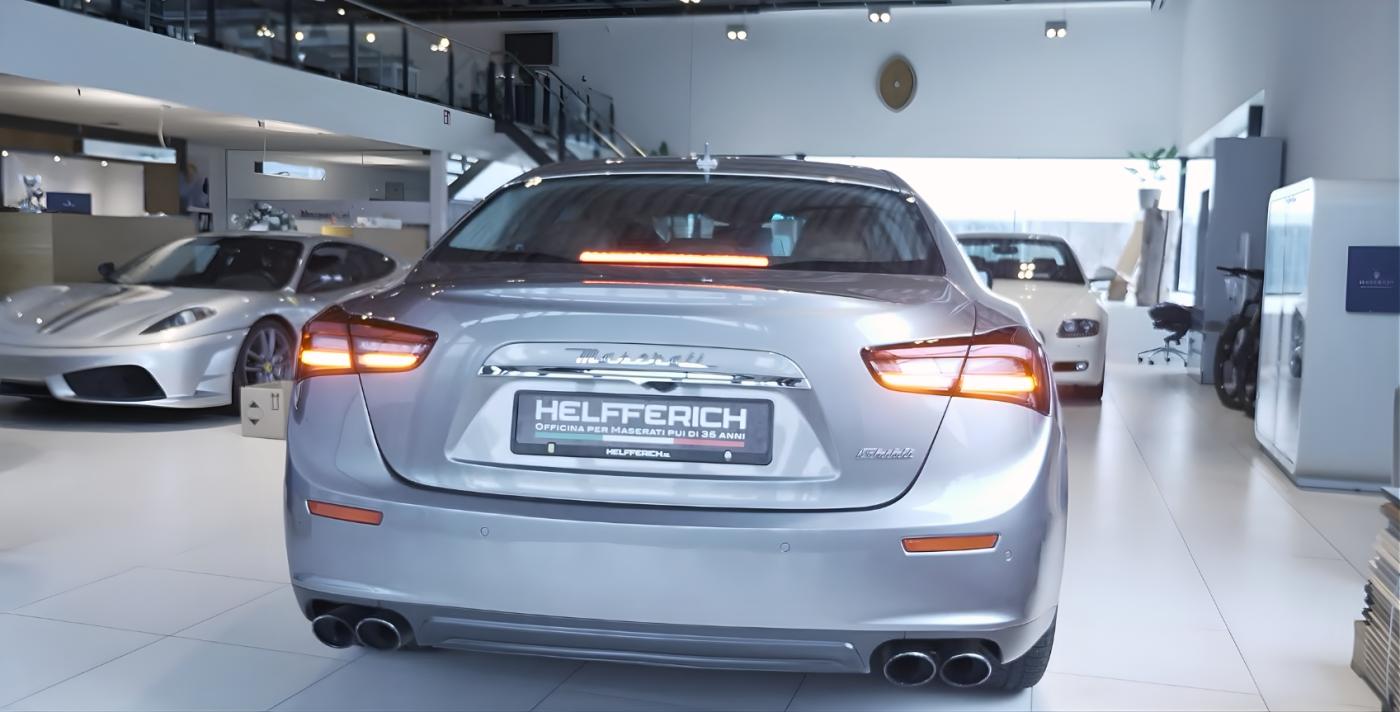

When Maserati designers approached the M156 facelift, they looked to the Alfieri concept car for inspiration. The result was a return to form. The new 2021+ units aren't just a different lens; they feature a three-dimensional internal structure. A milky-white LED light bar traces the outer edge of the unit, creating a deep, glowing red "Boomerang" that remains visible even in direct sunlight. Upgrading to these units isn't just about "newer" lights; it's about restoring a piece of Maserati's visual DNA to the Ghibli.

Technical Compatibility: The M156 Architecture

One of the most impressive aspects of the Maserati Ghibli (M156) platform is the consistency of its rear quarter panel stampings. Whether you own a 2014 Ghibli S Q4 or a 2020 Trofeo, the physical aperture for the taillights remains identical. This "backward compatibility" is what makes a Ghibli taillight retrofit a viable project for the home mechanic or a specialized shop.

Plug & Play

From an electrical standpoint, the Maserati Ghibli (M156) architecture is remarkably robust, but the 2021+ facelift introduced a subtle change in the pin-out configuration of the taillight connectors. While the physical mounting points remain identical, a direct connection between a pre-facelift harness and the new "Boomerang" units is not possible without a specialized interface.

To bridge this gap, the use of a high-quality Plug-and-Play converter cable is essential. This adapter acts as the intelligent link between your car's original factory loom and the updated LED technology of the 2021+ units. By utilizing this specific adapter, the upgrade offers three major technical advantages:

• Zero Wire Splicing: There is absolutely no need to cut, strip, or solder into your Maserati’s original factory wiring. This preserves the integrity of the vehicle’s electrical system, which is crucial for maintaining resale value and ensuring a reversible installation if needed.
• Seamless BCM Integration: Unlike cheap aftermarket LED kits that often trigger "bulb out" errors or dashboard warnings, these Genuine Maserati parts—when paired with the correct converter cable—are recognized by the Body Control Module (BCM) as native equipment. The system "sees" the correct resistance, ensuring 100% compatibility with the car’s onboard diagnostics.
• CAN Bus Stability: The internal resistance of the 2021+ units is calibrated to match the M156’s sophisticated CAN bus network. The adapter ensures that the voltage remains consistent, guaranteeing that your blinker frequency is perfect with no "hyper-flashing" or timing issues.

 Step-by-Step Technical Installation with Garage Helfferich

In our latest technical feature, Garage Helfferich demonstrated that this Maserati Ghibli taillight upgrade can be completed in approximately 45 to 60 minutes. While the process is straightforward, precision is required to ensure a factory-level finish and a watertight seal. We have diluted this one hour job into a short 15 minute technical tutorial

Step 1: Gaining Access

The process begins inside the trunk. You must remove the plastic trim covers located directly behind the light clusters. These are held in place by specialized clips; using a plastic trim tool prevents marring the interior. Once the covers are removed, the three primary mounting studs are exposed.

Step 2: Unseating the Unit

Before loosening the nuts, disconnect the main electrical harness. It features a locking tab that must be depressed firmly. Once disconnected, use a 10mm deep socket to remove the three nuts. Pro Tip from Helfferich: Place a magnet or a cloth beneath the workspace to catch the nuts, as they can easily fall into the hollow rear fender wells.

Step 3: Removing the Old Cluster

With the nuts removed, the light unit is held only by a small plastic locating pin on the outer edge. Slide the unit directly backward---never pry it sideways, as this can chip the paint on the rear quarter panel.

Step 4: Preparing the 2021+ Unit

Before installing the new 2021+ Boomerang lights, inspect the integrated foam gasket. This gasket is the only barrier preventing water from entering the trunk and the electrical connectors. Ensure the mounting surface on the car is perfectly clean of old debris and wax.

Step 5: Final Seating and Connection

Slide the new unit into place, ensuring the three studs align perfectly with the factory holes. Hand-tighten the nuts first to ensure the unit is centered in the body gap. Once aligned, tighten them to 5Nm---do not over-torque, as this can crack the plastic housing or pinch the gasket unevenly. Reconnect the harness, and you should hear a satisfying "click."

Watch the 'how to' video here: click to view video

Why Genuine Maserati Parts are Non-Negotiable

In the world of high-performance Italian cars, the temptation to save on aftermarket replicas is always present. However, for a Ghibli taillight retrofit, OEM quality is essential for several reasons:

1. UV Stabilization: Maserati's OEM lenses are treated with a high-grade UV coating that prevents the "milky" or yellowing effect common in cheaper alternatives after just one season of sun exposure.
2. LED Color Temperature: The 2021+ "Boomerang" red is specifically calibrated. Aftermarket units often have a slightly orange or "pinkish" hue that looks out of place next to the high-quality paint of a Ghibli.
3. Resale Value: A Maserati maintained with Genuine Maserati parts retains a significantly higher market value. Discerning buyers will always check for the "Trident" logo on lighting equipment during a pre-purchase inspection.

Summary and Part Identification

Upgrading your Ghibli is more than a simple cosmetic change; it is a technical evolution that aligns the older M156 models with the current Maserati lineup. By following the expert guidance of Garage Helfferich, you ensure that the installation is handled with the same care the car received at the factory in Grugliasco.

To order the correct units for your specific chassis, we recommend verifying your VIN with our team to ensure market compliance (specifically regarding the amber vs. red turn signal requirements in certain regions).

• Part Number (Left): M- 670160278
• Part Number (Right): M- 670160277

(Note: Always make sure to contact our specialized team using our VIN check verification service!)
