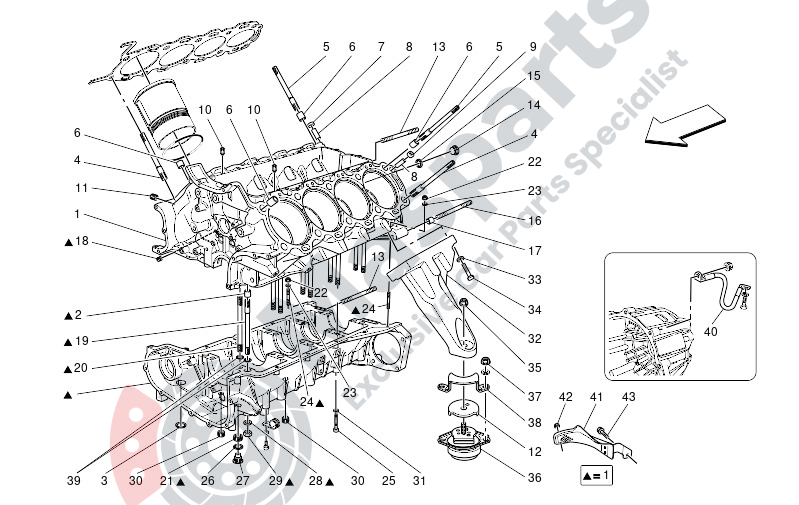

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-224857 | Complete Crankcase |
$2,851.40 |
|
|
| 2 | M-176421 | Centering Dowel |
$8.71 |
|
|
| 3 | M-10158801 | Expansion Cap For Hole D. |
$1.50 |
|
|
| 4 | M-194754 | Stud M 14(X2) Stem M 11X1 |
$13.99 |
|
|
| 5 | M-217968 | Stud M 14(X2) Stem M 11X1 |
$15.65 |
|
|
| 6 | M-185360 | Centring Dowel D.16X15 |
$6.32 |
|
|
| 7 | M-194773 | Choke Dowel D.14X6 |
$7.76 |
|
|
| 8 | M-156862 | Check Valve |
$6.71 |
|
|
| 9 | M-184045 | Choke Dowel D.14X6.5 |
$7.76 |
|
|
| 10 | M-177727 | Centering Dowel For Intake |
$5.64 |
|
|
| 11 | M-164400 | Tapered Threaded Plug D.16X1 |
$6.53 |
|
|
| 12 | M-196590 | Upper Engine Pad Protection |
$7.86 |
|
|
| 13 | M-13547134 | Stud M10X1.25X20 Stem |
$2.43 |
|
|
| 14 | M-10304511 | Threaded Plug |
$3.05 |
|
|
| 15 | M-10263460 | Gasket 22- 28X 1.5 |
$1.70 |
|
|
| 16 | M-13547034 | Stud M10X1.25X20 Stem |
$14.08 |
|
|
| 17 | M-100052 | Centering Dowel |
$5.64 |
|
|
| 18 | M-13525770 | Threaded Fitting M8X12 |
$2.15 |
|
|
| 19 | M-217794 | Stud M12X1.75 Stem M10X1 |
$55.91 |
|
|
| 21 | M-223577 | Threaded Fitting M22X1.5X11 |
$3.66 |
|
|
| 22 | M-132877 | Small-Sized Hex. Selflock. N |
$4.77 |
|
|
| 23 | M-12604274 | Washer |
$1.50 |
|
|
| 24 | M-13541624 | Stud M6X12 Stem 35 |
$12.73 |
|
|
| 25 | M-14432224 | Screw |
$1.69 |
|
|
| 26 | M-10261860 | Gasket 22- 30X 1.5 |
$1.11 |
|
|
| 27 | M-104280 | Threaded Plug M 22X1.5 |
$12.09 |
|
|
| 28 | M-178348 | Machined Washer D.10.2-20X2. |
$3.61 |
|
|
| 29 | M-133988 | Hex Nut M10X10.25.25X8 |
$1.77 |
|
|
| 30 | M-14325140 | Tapered Threaded Plug 18X51. |
$3.05 |
|
|
| 31 | M-11197774 | Washer |
$2.20 |
|
|
| 32 | M-199850 | Rh Bracket Fast.Engine To Fr |
$261.19 |
|
|
| 33 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.69 |
|
|
| 34 | M-15970934 | Hex Head Screw M10X1.25X35 |
$41.30 |
|
|
| 35 | M-177018 | Nut For Rear Differential |
$2.54 |
|
|
| 36 | M-225839 | Engine Support Rubber Bushin |
$275.40 |
|
|
| 37 | M-177764 | Nut |
$1.69 |
|
|
| 38 | M-198530 | Bracket. |
$133.53 |
|
|
| 39 | M-134704 | O-Ring D.7.66X1 |
$1.10 |
|
|
| 40 | M-268886 | Engine Ground-Frame Ground B |
$73.43 |
|
|
| 41 | M-227525 | R.H. Heat Shield |
$128.31 |
|
|
| 42 | M-14058411 | Nut |
$1.69 |
|
|
| 43 | M-13833011 | Tebd Screw M5X10 |
$2.05 |
|
