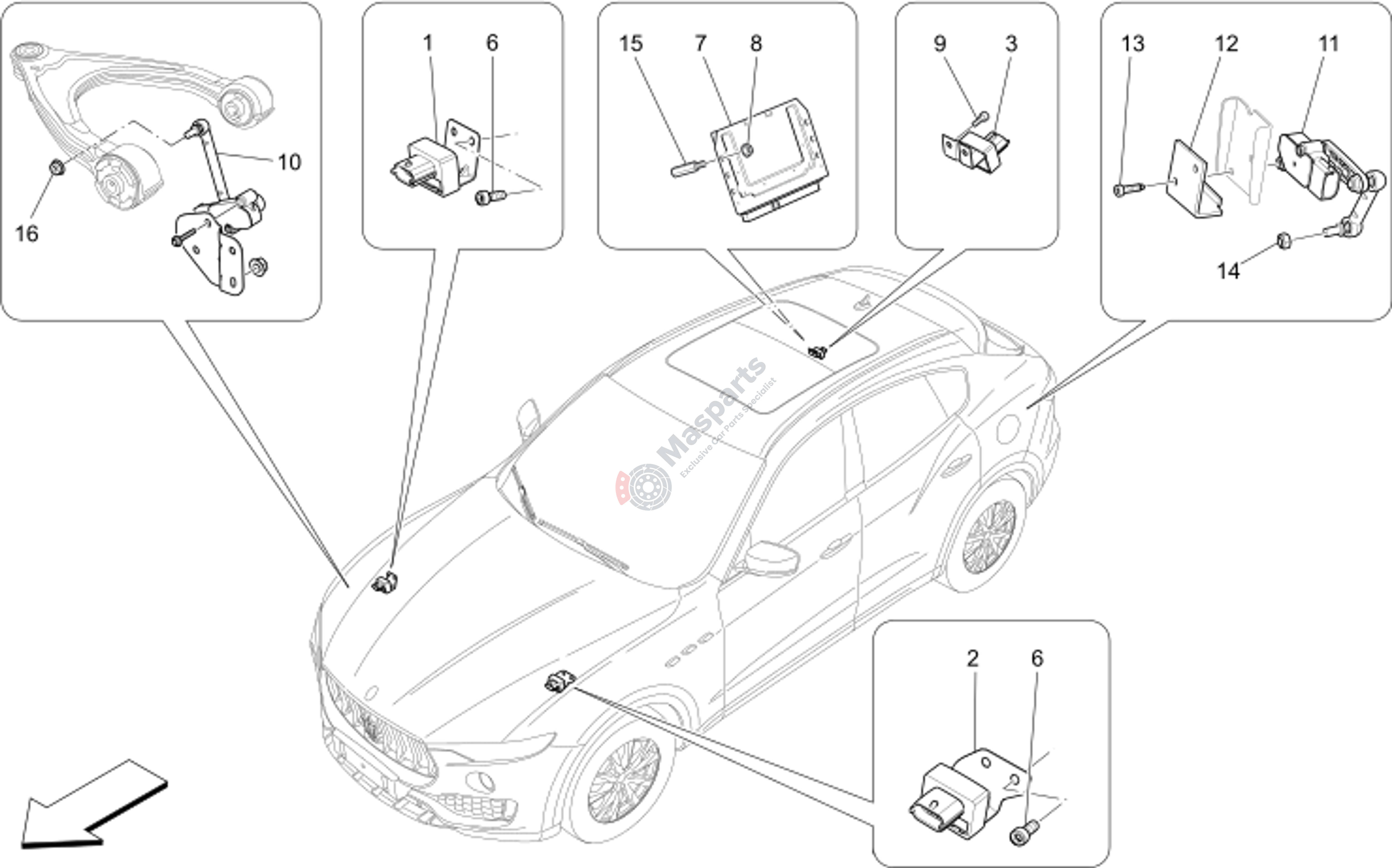

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670005816 | Front Right Accelerometer Bo |
$109.48 |
|
|
| 2 | M-670005817 | Front Left Accelerometer Bod |
$104.59 |
|
|
| 3 | M-670005813 | Rear Accelerometer Body Sens |
$107.52 |
|
|
| 6 | M-675000173 | Screw |
$2.01 |
|
|
| 7 | M-673013886 | Suspension Control Unit |
$603.10 |
|
|
| 8 | M-675000448 | Nut |
$1.42 |
|
|
| 9 | M-675000173 | Screw |
$2.01 |
|
|
| 10 | M-670037525 | Front Sensor With Bracket Rh |
$146.62 |
|
|
| 11 | M-670037527 | Rear Sensor Lh.Rh |
$117.30 |
|
|
| 12 | M-670101451 | Bracket |
$42.88 |
|
|
| 13 | M-670101566 | Screw |
$3.65 |
|
|
| 14 | M-675000095 | Nut |
$0.77 |
|
|
| 15 | M-670037530 | Spacer |
$3.77 |
|
|
| 16 | M-675000740 | Nut |
$3.60 |
|
