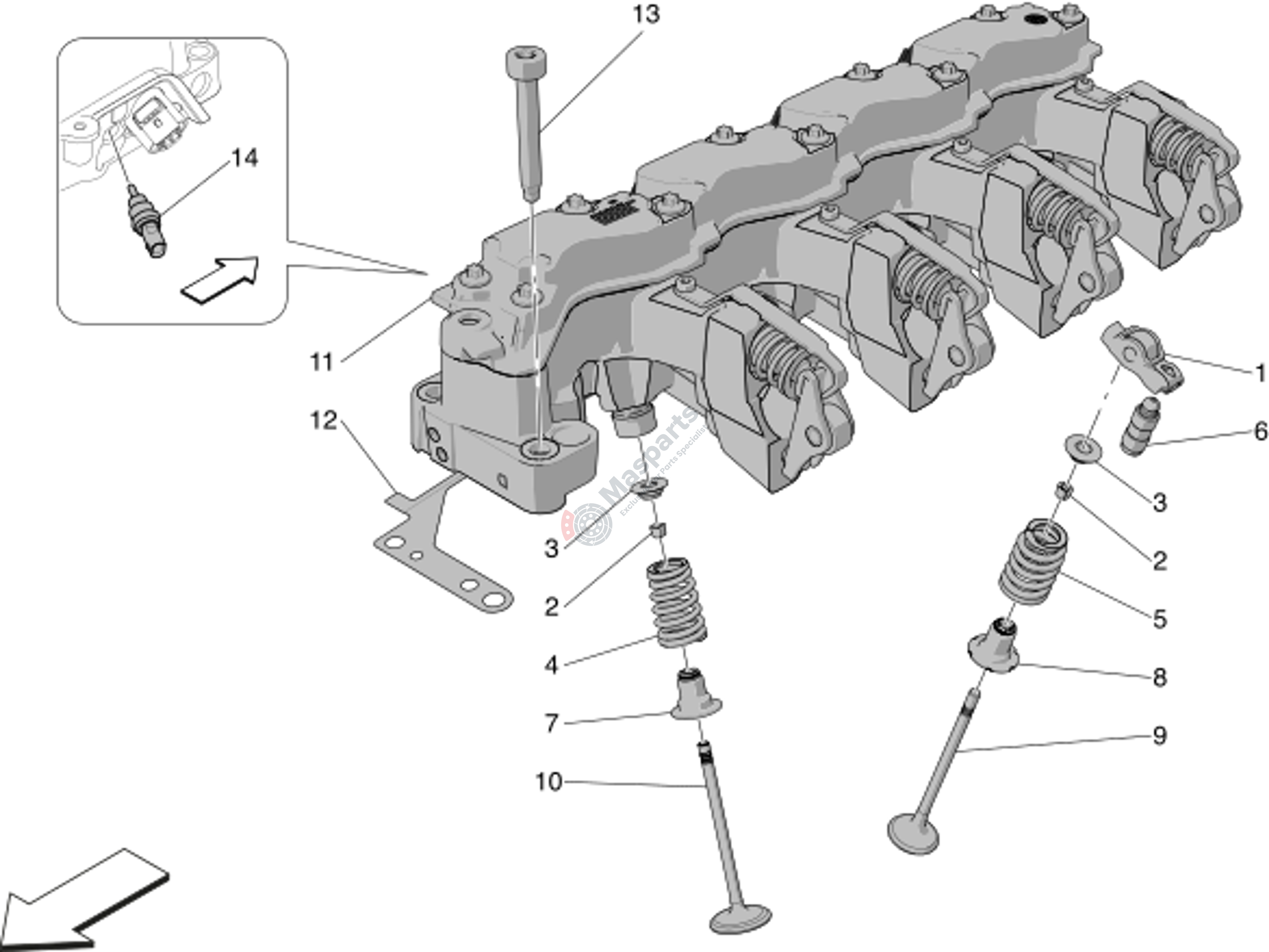

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000910 | Rocker With Roller |
$18.33 |
|
|
| 2 | M-675000886 | Lock - Engine Valve Spring R |
$1.39 |
|
|
| 3 | M-675000893 | Engine Valve Retaining Sprin |
$1.45 |
|
|
| 4 | M-675000889 | Valve Spring |
$3.00 |
|
|
| 5 | M-675000890 | Valve Spring |
$3.00 |
|
|
| 6 | M-675000909 | Hydraulic Tappet |
$7.55 |
|
|
| 7 | M-675000884 | Lh Valve Or |
$11.94 |
|
|
| 8 | M-675000885 | Rh Valve Or |
$11.94 |
|
|
| 9 | M-675000888 | Exhaust Valve |
$45.21 |
|
|
| 10 | M-675000887 | Intake Valve |
$23.77 |
|
|
| 11 | M-675001480 | Multiair Actuator |
$1,252.43 |
|
|
| 12 | M-675000907 | Multiair Gasket |
$7.96 |
|
|
| 13 | M-675000908 | Screw |
$2.85 |
|
|
| 14 | M-673011563 | Oil Temp Sensor Gh Mhev |
$54.06 |
|
