The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

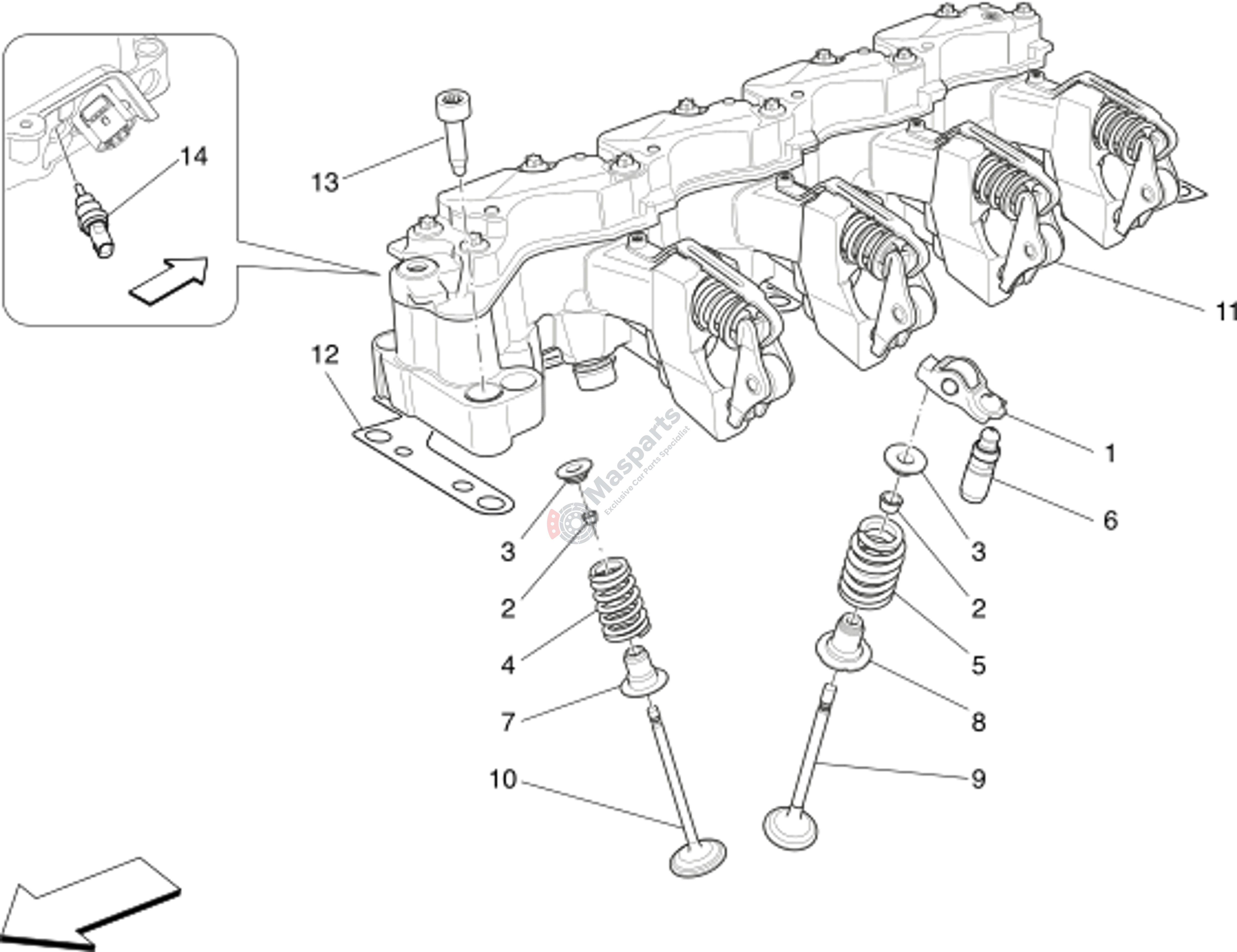

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-675000910 | Rocker With Roller |
€15,73 |
|
|
| 2 | M-675000886 | Lock - Engine Valve Spring R |
€1,16 |
|
|
| 3 | M-675000893 | Engine Valve Retaining Sprin |
€1,20 |
|
|
| 4 | M-675000889 | Valve Spring |
€2,48 |
|
|
| 5 | M-675000890 | Valve Spring |
€2,48 |
|
|
| 6 | M-675000909 | Hydraulic Tappet |
€6,26 |
|
|
| 7 | M-675000884 | Lh Valve Or |
€9,94 |
|
|
| 8 | M-675000885 | Rh Valve Or |
€9,94 |
|
|
| 9 | M-675000888 | Exhaust Valve |
€37,66 |
|
|
| 10 | M-675000887 | Intake Valve |
€19,89 |
|
|
| 11 | M-675001480 | Multiair Actuator |
€1.048,05 |
|
|
| 12 | M-675000907 | Multiair Gasket |
€6,62 |
|
|
| 13 | M-675000908 | Screw |
€2,37 |
|
|
| 14 | M-673011563 | Oil Temp Sensor Gh Mhev |
€44,81 |
|
